BRIGHT GRAZING OCCULTATIONS:   NEW ZEALAND 2007

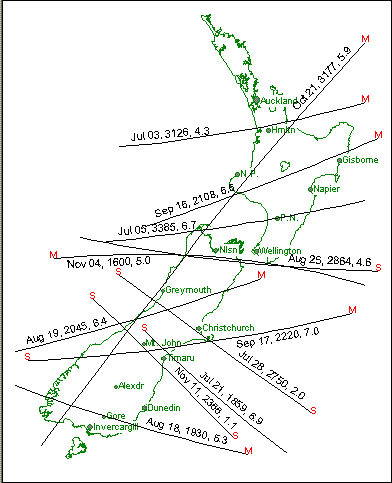

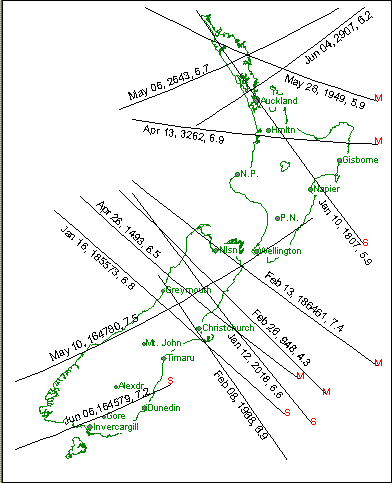

NZ Grazes Jan to Jun 2007 NZ Grazes Jul to Dec 2007

Charts prepared using data from David Herald's Win-Occult and a program written by Pauline Loader.

Note:
'S' at the end of a track indicates interference from the Sun
'A' indicates that the star is at low altitude
Table of grazes.

EXPLANATION OF THE TABLE
Date :
Universal Time (UT). UT is effectively equivalent to Greenwich Mean Time. In New Zealand, add 12 hours to UT to get NZ Standard Time, or add 13 hours to get NZ Daylight Time.
Star :
ZC indicates the star number in Robertson's Zodiacal Catalog.
S indicates the star number in the SAO Catalog.
A link is provided to information on double stars.
Mag :
Star Magnitude.
%Snlt :
Percent sunlit of the moon. "+" is waxing (before Full Moon) and "-" waning. Before Full Moon the star will appear to approach the moon from its dark side. After Full Moon the star appears to approach across the lighted lunar limb.
Near Place ... :
Lists some cities or towns close to the path, but not usually on it. Click on them to bring up WIN OCCULT predictions and a profile for this graze.
Time :
Approximate hour and minute of graze (Universal Time). For sites to the west times may be a minute or so earlier whilst to the east they may be a little later. Events may occur for a minute or two either side of the predicted time.
Alt :
Altitude of the star and Moon.
CA & Limit :
The Limit indicates whether the star grazes the Northern or Southern edge of the Moon. The associated figure shows the number of degrees round the circumference of the Moon from the bright cusp at which mid graze occurs. The centres of all grazes are on the unlit portion of the limb unless otherwise indicated by a - CA value.
Notes :
This gives further information about the graze and star. Most grazes should be observable with a telescope aperture of 100mm. If a larger aperture is likely to be needed this is indicated.
Double star information is contained in the prediction files.

If you need help consult the following:   [Planning A Graze]   [Observing A Graze]   [Graze Report Form]

Grazes for New Zealand during 2007

All Graze Data and Profiles obtained from David Herald's Win Occult 3.0


Date UT ZC Mag %Snlt Near Place Time Alt CA Notes
Jan 10 1807 5.9 58%- Auckland
Hamilton
Napier
16:24
16:26
16:31
34°
32°
26°
19.4°S
19.2°S
19.0°S
Sun -9°
Sun -8°
Sun -5°
Jan 12 2018 6.6 39%- N of Christchurch 16:34 48° 16.4° SSun -6°
Jan 16 185573 6.8 7%- Christchurch 16:08 15° 15.2°S
Sun -10°
Feb 8 1968 6.9 67%- Greymouth
Christchurch
13:37
13:41
37°
28°
13.3°S
13.3°S

Feb 13 186461 7.4 19%- Nelson
Blenheim
15:42
15:43
24°
25°
11.7°S
11.6°S
Double star
Feb 26 948 4.3 72%+ Kaikoura 10:51 11° 7.8°N Star is κ Aur
Apr 13 3262 6.9 19%- Hamilton
Whakatane
15:59
16:00
18°
19°
2.4°N
2.6°N
Double star
Apr 26 1493 6.5 71%+ Christchurch 10:53 25° 16.3°N Double star
May 6 2643 6.7 83%- Whangarei17:2966° 14.4°N
May 10 164780 7.5 43%- Blenheim
Wellington
18:14
18:16
59°
60°
14.4°N
14.8°N

Sun -12°
May 28 1949 5.9 88%+ Whangarei11:4553° 15.4°NDouble star
Jun 4 2907 6.2 87%- Auckland 16:25 72° 18.0°N Double star
Jun 6 164379 7.2 69%- Invercargill
Dunedin
15:57
16:02
53°
55°
12.2°N
12.9°N

Date UT ZC Mag %Snlt Near Place Time Alt CA Notes
Jul 3 3126 4.3 90%- Hamilton 12:20 50° 10.6°Nι Cap
Jul 5 3385 6.7 73%- Palmerston North 12:17 23° 7.9°N
Jul 21 1859 6.9 40%+ Timaru 05:46 55° 16.0°NSun -5°
Jul 28 2750 2.0 96%+ Christchurch 04:11 10° 14.2°N σ Sgr, Double star,
Day time event, Sun +10°
Aug 18 1930 5.3 25%+ Gore 06:51 45° 7.3°NDouble star
Aug 19 1925 1.0 17%+ Kaikoura 10:40 15° 7.8°S
Aug 25 2864 4.6 88%+ Blenheim 07:14 54° 2.6°N150mm aperture or more needed
Sep 16 2108 6.6 20%+ Hawera
Gisborne
08:54
08:56
20°
16°
8.3°S
8.9°S
Double star
Sep 17 2220 7.0 27%+ Timaru 07:21 49° 4.1°S2nd 7.1 star graze ca 6 km S
See profile and notes
Oct 21 2108 6.6 20%+ New Plymouth
Hamilton
11:59
12:01
34°
33°
14.3°S
14.2°S
Double star
Nov 4 1600 5.0 23%- Blenheim 15:33 5.7°SNote very low altitude
Nov 11 2366 1.1 3%+ Mt John - Timaru 19:47 28° 3.3°SAntares, αSco,
Day time event, Sun +28°

(Graze Data obtained from David Herald's Win Occult 3.0).
