Predictions for Grazing Occultation of ZC 3126, 2007 Jul 3
Grazing Occultation of 3126 G8 Magnitude 4.3v
3126 = Tae = iota Capricorni
Date 2007 July 3 (Tuesday) Nominal site altitude 0m
E. Longit. Latitude U.T. Sun Moon TanZ PA WA CA
o ' " o ' " h m s Alt Alt Az o o o
135 0 0 -34 38 43 11 39 48 10 104 5.84 343.1 359.83 1.13N
135 10 0 -34 41 10 11 39 52 10 104 5.74 343.1 359.81 1.15N
135 20 0 -34 43 38 11 39 55 10 104 5.65 343.1 359.78 1.18N
135 30 0 -34 46 4 11 39 59 10 103 5.56 343.0 359.76 1.20N
135 40 0 -34 48 30 11 40 3 10 103 5.48 343.0 359.74 1.22N
135 50 0 -34 50 55 11 40 7 10 103 5.40 343.0 359.71 1.25N
136 0 0 -34 53 19 11 40 10 11 103 5.32 343.0 359.69 1.27N
136 10 0 -34 55 43 11 40 14 11 103 5.24 343.0 359.67 1.30N
136 20 0 -34 58 6 11 40 18 11 103 5.16 342.9 359.64 1.32N
136 30 0 -35 0 28 11 40 22 11 103 5.09 342.9 359.62 1.34N
136 40 0 -35 2 50 11 40 26 11 103 5.02 342.9 359.59 1.37N
136 50 0 -35 5 11 11 40 30 11 103 4.95 342.9 359.57 1.39N
137 0 0 -35 7 31 11 40 34 12 102 4.88 342.8 359.54 1.42N
137 10 0 -35 9 50 11 40 38 12 102 4.81 342.8 359.52 1.44N
137 20 0 -35 12 9 11 40 43 12 102 4.75 342.8 359.49 1.47N
137 30 0 -35 14 27 11 40 47 12 102 4.68 342.8 359.47 1.49N
137 40 0 -35 16 45 11 40 51 12 102 4.62 342.7 359.44 1.52N
137 50 0 -35 19 2 11 40 55 12 102 4.56 342.7 359.42 1.54N
138 0 0 -35 21 18 11 41 0 13 102 4.50 342.7 359.39 1.57N
138 10 0 -35 23 33 11 41 4 13 102 4.45 342.7 359.37 1.59N
138 20 0 -35 25 48 11 41 9 13 102 4.39 342.6 359.34 1.62N
138 30 0 -35 28 2 11 41 13 13 102 4.34 342.6 359.32 1.64N
138 40 0 -35 30 15 11 41 18 13 101 4.28 342.6 359.29 1.67N
138 50 0 -35 32 28 11 41 23 13 101 4.23 342.6 359.27 1.69N
139 0 0 -35 34 40 11 41 27 13 101 4.18 342.5 359.24 1.72N
139 10 0 -35 36 51 11 41 32 14 101 4.13 342.5 359.21 1.75N
139 20 0 -35 39 1 11 41 37 14 101 4.08 342.5 359.19 1.77N
139 30 0 -35 41 11 11 41 42 14 101 4.03 342.4 359.16 1.80N
139 40 1 -35 43 20 11 41 47 14 101 3.99 342.4 359.14 1.83N
139 50 1 -35 45 28 11 41 52 14 101 3.94 342.4 359.11 1.85N
140 0 1 -35 47 36 11 41 57 14 101 3.90 342.4 359.08 1.88N
140 10 1 -35 49 43 11 42 2 15 100 3.85 342.3 359.06 1.91N
140 20 1 -35 51 49 11 42 7 15 100 3.81 342.3 359.03 1.93N
140 30 1 -35 53 54 11 42 12 15 100 3.77 342.3 359.00 1.96N
140 40 1 -35 55 59 11 42 17 15 100 3.73 342.3 358.98 1.99N
140 50 1 -35 58 2 11 42 22 15 100 3.69 342.2 358.95 2.01N
141 0 1 -36 0 6 11 42 28 15 100 3.65 342.2 358.92 2.04N
141 10 1 -36 2 8 11 42 33 15 100 3.61 342.2 358.89 2.07N
141 20 1 -36 4 10 11 42 38 16 100 3.57 342.2 358.87 2.10N
141 30 1 -36 6 10 11 42 44 16 100 3.53 342.1 358.84 2.12N
141 40 1 -36 8 11 11 42 49 16 99 3.50 342.1 358.81 2.15N
141 50 1 -36 10 10 11 42 55 16 99 3.46 342.1 358.78 2.18N
142 0 1 -36 12 9 11 43 0 16 99 3.43 342.0 358.76 2.21N
142 10 1 -36 14 6 11 43 6 16 99 3.39 342.0 358.73 2.23N
142 20 1 -36 16 4 11 43 12 17 99 3.36 342.0 358.70 2.26N
142 30 1 -36 18 0 11 43 17 17 99 3.33 342.0 358.67 2.29N
142 40 1 -36 19 56 11 43 23 17 99 3.29 341.9 358.64 2.32N
142 50 1 -36 21 50 11 43 29 17 99 3.26 341.9 358.61 2.35N
143 0 1 -36 23 44 11 43 35 17 99 3.23 341.9 358.58 2.38N
143 10 1 -36 25 38 11 43 41 17 98 3.20 341.8 358.56 2.41N
143 20 1 -36 27 30 11 43 47 18 98 3.17 341.8 358.53 2.43N
143 30 1 -36 29 22 11 43 53 18 98 3.14 341.8 358.50 2.46N
143 40 1 -36 31 13 11 43 59 18 98 3.11 341.8 358.47 2.49N
143 50 1 -36 33 3 11 44 5 18 98 3.08 341.7 358.44 2.52N
144 0 1 -36 34 53 11 44 11 18 98 3.05 341.7 358.41 2.55N
144 10 1 -36 36 41 11 44 18 18 98 3.02 341.7 358.38 2.58N
144 20 1 -36 38 29 11 44 24 18 98 2.99 341.6 358.35 2.61N
144 30 1 -36 40 16 11 44 30 19 97 2.97 341.6 358.32 2.64N
144 40 1 -36 42 2 11 44 37 19 97 2.94 341.6 358.29 2.67N
144 50 1 -36 43 48 11 44 43 19 97 2.91 341.5 358.26 2.70N
145 0 1 -36 45 32 11 44 50 19 97 2.89 341.5 358.23 2.73N
145 10 1 -36 47 16 11 44 56 19 97 2.86 341.5 358.20 2.76N
145 20 1 -36 48 59 11 45 3 19 97 2.84 341.5 358.17 2.79N
145 30 1 -36 50 42 11 45 9 20 97 2.81 341.4 358.14 2.82N
145 40 1 -36 52 23 11 45 16 20 97 2.79 341.4 358.11 2.85N
145 50 1 -36 54 4 11 45 23 20 96 2.76 341.4 358.08 2.88N
146 0 1 -36 55 44 11 45 30 20 96 2.74 341.3 358.05 2.91N
146 10 1 -36 57 23 11 45 37 20 96 2.72 341.3 358.02 2.94N
146 20 1 -36 59 1 11 45 44 20 96 2.69 341.3 357.99 2.98N
146 30 1 -37 0 38 11 45 50 21 96 2.67 341.2 357.95 3.01N
146 40 1 -37 2 15 11 45 58 21 96 2.65 341.2 357.92 3.04N
146 50 1 -37 3 51 11 46 5 21 96 2.63 341.2 357.89 3.07N
147 0 1 -37 5 26 11 46 12 21 96 2.61 341.1 357.86 3.10N
147 10 1 -37 7 0 11 46 19 21 96 2.58 341.1 357.83 3.13N
147 20 1 -37 8 33 11 46 26 21 95 2.56 341.1 357.80 3.17N
147 30 1 -37 10 6 11 46 33 21 95 2.54 341.0 357.76 3.20N
147 40 1 -37 11 37 11 46 41 22 95 2.52 341.0 357.73 3.23N
147 50 1 -37 13 8 11 46 48 22 95 2.50 341.0 357.70 3.26N
148 0 1 -37 14 38 11 46 56 22 95 2.48 340.9 357.67 3.29N
148 10 1 -37 16 7 11 47 3 22 95 2.46 340.9 357.64 3.33N
148 20 1 -37 17 36 11 47 11 22 95 2.44 340.9 357.60 3.36N
148 30 1 -37 19 3 11 47 18 22 95 2.42 340.9 357.57 3.39N
148 40 2 -37 20 30 11 47 26 23 94 2.40 340.8 357.54 3.42N
148 50 2 -37 21 56 11 47 33 23 94 2.38 340.8 357.50 3.46N
149 0 2 -37 23 21 11 47 41 23 94 2.37 340.8 357.47 3.49N
149 10 2 -37 24 45 11 47 49 23 94 2.35 340.7 357.44 3.52N
149 20 2 -37 26 8 11 47 57 23 94 2.33 340.7 357.40 3.56N
149 30 2 -37 27 30 11 48 5 23 94 2.31 340.7 357.37 3.59N
149 40 2 -37 28 52 11 48 13 24 94 2.29 340.6 357.34 3.63N
149 50 2 -37 30 12 11 48 21 24 94 2.28 340.6 357.30 3.66N
150 0 2 -37 31 32 11 48 29 24 93 2.26 340.6 357.27 3.69N
Path coordinates are referred to WGS84 (as used by GPS).
3126 = iot Cap, 4.27 +/- 0.06 V , Type BY
C A S S I N I R E G I O N G R A Z E
Librations Long -3.70 Lat +2.21
P +357.1 D -1.8
Illumination of moon 90%-
Elongation of Moon 143
Vertical Profile Scale 1.89 km/arcsec at mean distance of moon
Horizontal Scale Factor 1.77 deg/min
Limiting Magnitudes for various telescope apertures (in mm)
CA\Tdia 50 100 150 200 250 300 350
-0.3 2.3 3.7 4.4 4.8 5.0 5.2 5.3
1.7 2.3 3.7 4.4 4.8 5.0 5.2 5.3
3.7 2.4 3.8 4.5 4.8 5.1 5.2 5.4
5.7 3.8 5.2 5.9 6.3 6.5 6.7 6.8
7.7 4.3 5.7 6.4 6.8 7.1 7.2 7.4

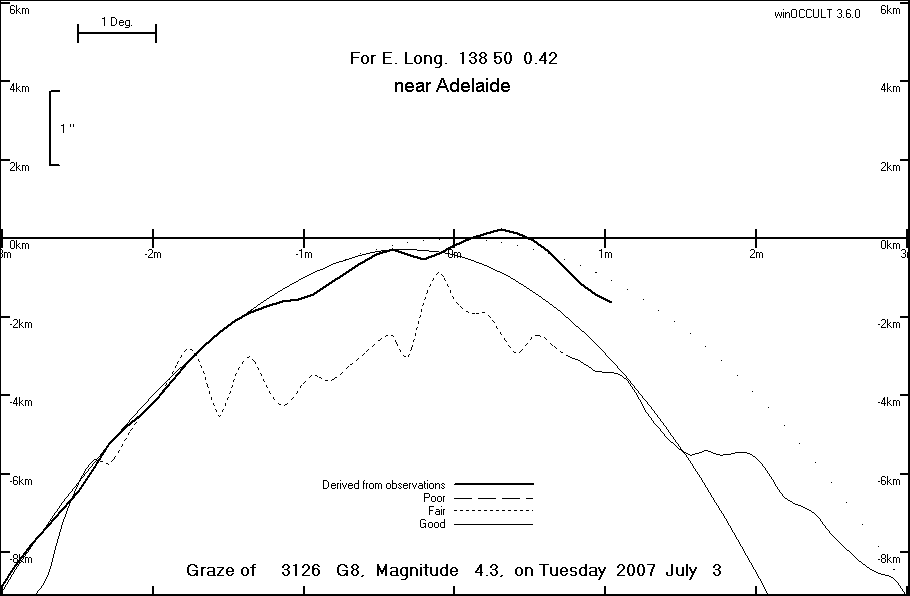

Lunar Limb Profile for graze near Adelaide

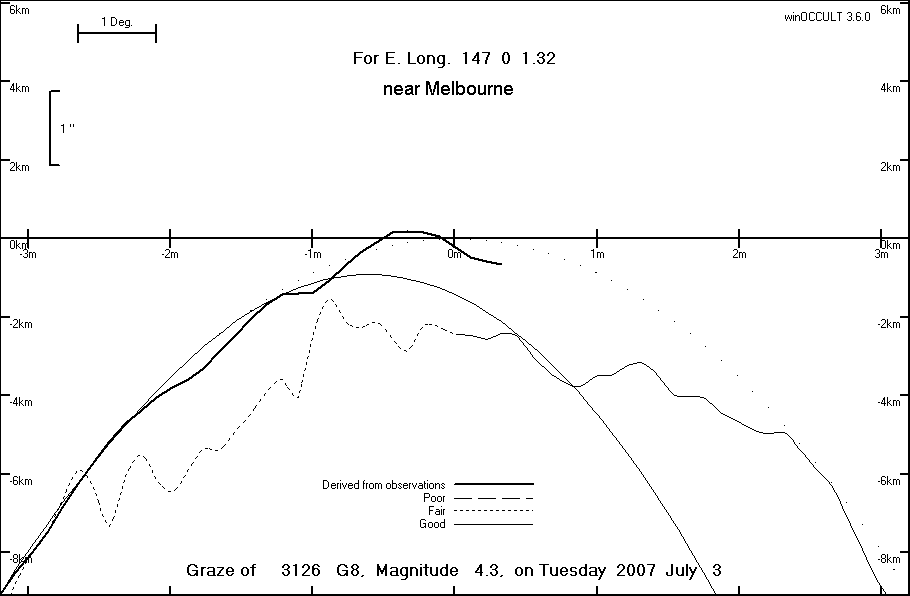

Lunar Limb Profile for graze near Melbourne
