Graze location maps for:  January to June     July to December

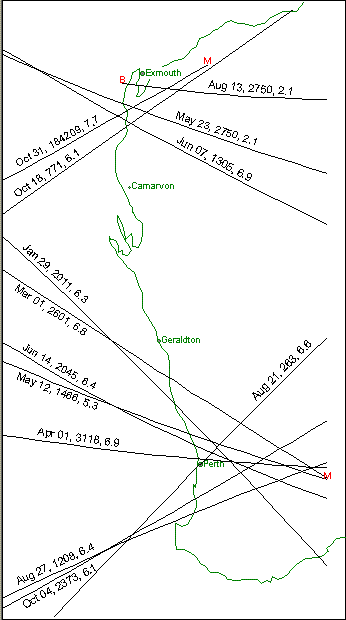

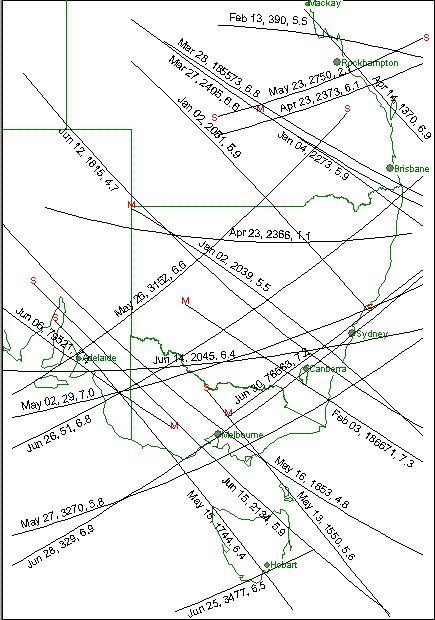

Grazes for Western Australia 2008	Grazes for South East Australia, Jan to Jun 2008

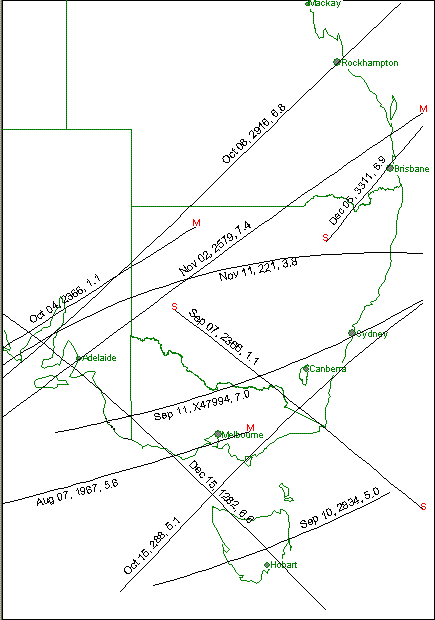

Grazes for Western Australia 2008	Grazes for South East Australia, Jul to Dec 2008
Table of grazes for West Australia	Table of grazes for South-east Australia

Charts prepared using data from David Herald's Win-Occult and a program written by Pauline Loader.

Note:

'S' at the end of a track indicates interference from the Sun

'S' at both ends indicates Sun above horizon for at least part of track

'M' indicates that the star is at low altitude

'B' indicates both 'S' and 'M'

Table of grazes for West Australia.      Table of grazes for South East Australia.

Date :

Universal Time (UT). UT is effectively equivalent to Greenwich Mean Time.

Star :

ZC indicates the star number in Robertson's Zodiacal Catalog.

S indicates the star number in the SAO Catalog.

A link is provided to information on double stars.

Mag :

Star Magnitude.

%Snlt :

Percent sunlit of the moon. "+" is waxing (before Full Moon) and "-" waning. Before Full Moon the star will appear to approach the moon from its dark side. After Full Moon the star appears to approach across the lighted lunar limb.

Near Place ... :

Lists some cities or towns close to the path, but not usually on it. Click on them to bring up WIN OCCULT predictions and a profile for this graze.

Time :

Approximate hour and minute of graze (Universal Time). For sites to the west times may be a minute or so earlier whilst to the east they may be a little later. Events may occur for a minute or two either side of the predicted time.

Alt :

Altitude of the star and Moon.

CA & Limit :

The Limit indicates whether the star grazes the Northern or Southern edge of the Moon. The associated figure shows the number of degrees round the circumference of the Moon from the bright cusp at which mid graze occurs. The centres of all grazes are on the unlit portion of the limb unless otherwise indicated indicated by a - CA value.

Notes :

This gives further information about the graze and star. Most grazes should be observable with a telescope aperture of 100mm. If a larger aperture is likely to be needed this is indicated.

Double star information is contained in the prediction files.
