Predictions for Grazing Occultation of ZC 1753, 2014 Jun 7, near Bendigo, Vic.

Graze profile Bendigo
Grazing Occultation of    1753 K0      Magnitude 6.7 [Red = 6.2]
Date: 2014 Jun 07  9h 32m,  to  2014 Jun 07 10h 30m

Nominal site altitude 100m

E. Longit.   Latitude     U.T.    Sun  Moon   TanZ   PA    AA      CA
   o  '  "    o  '  "   h  m  s   Alt Alt Az          o     o      o
 133  0  0  -29 38 37   9 32  2       61  24  0.55  30.6   5.76   7.67N
 133 30  0  -29 57  5   9 33 37       61  22  0.55  30.6   5.73   7.65N
 134  0  0  -30 15 28   9 35 11       61  20  0.55  30.5   5.70   7.62N
 134 30  0  -30 33 45   9 36 45       61  18  0.55  30.5   5.67   7.58N
 135  0  0  -30 51 56   9 38 19       61  16  0.55  30.5   5.63   7.54N
 135 30  0  -31  9 59   9 39 52       61  14  0.55  30.4   5.58   7.50N
 136  0  0  -31 27 56   9 41 25       61  12  0.56  30.4   5.53   7.45N
 136 30  0  -31 45 44   9 42 57       61  10  0.56  30.3   5.48   7.39N
 137  0  0  -32  3 24   9 44 29       61   9  0.56  30.2   5.42   7.33N
 137 30  0  -32 20 55   9 46  0       60   7  0.57  30.2   5.36   7.27N
 138  0  0  -32 38 17   9 47 31       60   5  0.57  30.1   5.29   7.20N
 138 30  0  -32 55 30   9 49  0       60   3  0.58  30.0   5.22   7.13N
 139  0  0  -33 12 32   9 50 30       60   1  0.58  30.0   5.14   7.06N
 139 30  0  -33 29 25   9 51 58       59 360  0.59  29.9   5.07   6.98N
 140  0  0  -33 46  6   9 53 25       59 358  0.60  29.8   4.99   6.90N
 140 30  0  -34  2 37   9 54 52       59 356  0.60  29.7   4.90   6.82N
 141  0  0  -34 18 57   9 56 18       59 355  0.61  29.6   4.81   6.73N
 141 30  0  -34 35  6   9 57 43       58 353  0.62  29.6   4.72   6.64N
 142  0  0  -34 51  3   9 59  7       58 352  0.63  29.5   4.63   6.55N
 142 30  0  -35  6 48  10  0 31       57 350  0.64  29.4   4.54   6.45N
 143  0  0  -35 22 22  10  1 53       57 349  0.65  29.3   4.44   6.35N
 143 30  0  -35 37 43  10  3 14       57 347  0.66  29.2   4.34   6.25N
 144  0  0  -35 52 53  10  4 35       56 346  0.67  29.1   4.24   6.15N
 144 30  0  -36  7 50  10  5 54       56 344  0.68  29.0   4.13   6.05N
 145  0  0  -36 22 36  10  7 13       55 343  0.69  28.9   4.03   5.94N
 145 30  0  -36 37  9  10  8 30       55 342  0.70  28.8   3.92   5.83N
 146  0  0  -36 51 29  10  9 47       55 341  0.71  28.6   3.81   5.73N
 146 30  0  -37  5 38  10 11  2       54 339  0.72  28.5   3.70   5.62N
 147  0  0  -37 19 34  10 12 16       54 338  0.74  28.4   3.59   5.50N
 147 30  0  -37 33 18  10 13 30       53 337  0.75  28.3   3.48   5.39N
 148  0  0  -37 46 49  10 14 42       53 336  0.76  28.2   3.36   5.28N
 148 30  0  -38  0  8  10 15 54       52 335  0.77  28.1   3.25   5.16N
 149  0  0  -38 13 15  10 17  4       52 334  0.79  28.0   3.13   5.05N
 149 30  0  -38 26 10  10 18 13       51 332  0.80  27.8   3.02   4.93N
 150  0  0  -38 38 52  10 19 22       51 331  0.81  27.7   2.90   4.82N
 150 30  0  -38 51 23  10 20 29       50 330  0.83  27.6   2.79   4.70N
 151  0  0  -39  3 41  10 21 36       50 329  0.84  27.5   2.67   4.58N
 151 30  0  -39 15 48  10 22 41       49 328  0.86  27.4   2.55   4.47N
 152  0  0  -39 27 43  10 23 45       49 328  0.87  27.3   2.43   4.35N
 152 30  0  -39 39 26  10 24 49       48 327  0.89  27.1   2.32   4.23N
 153  0  0  -39 50 57  10 25 51       48 326  0.90  27.0   2.20   4.11N
 153 30  0  -40  2 17  10 26 53       47 325  0.92  26.9   2.08   4.00N
 154  0  0  -40 13 25  10 27 53       47 324  0.93  26.8   1.96   3.88N
 154 30  0  -40 24 22  10 28 53       47 323  0.95  26.7   1.85   3.76N
 155  0  0  -40 35  8  10 29 51       46 322  0.96  26.6   1.73   3.64N

Path coordinates are referred to WGS84 (as used by GPS), with the
nominal site altitude being referenced to Mean Sea Level. The path
is adjusted for the effects of refraction at low moon altitudes.

Projected diameter of star  2 meters  [Estimated]


    C A S S I N I   R E G I O N   G R A Z E
                Librations  Long -6.14   Lat +2.18
                            P +4.01     D -2.36
      Illumination of moon  65%+
        Elongation of Moon  107
    Vertical Profile Scale  2.12 km/arcsec at mean distance of moon
   Horizontal Scale Factor  1.28 deg/min


At longitude 144.00:
Limiting Magnitudes for various telescope apertures (in cm)
      CA\Tdia   5    10    15    20    25    30    35
     2.2      4.9   6.3   7.1   7.6   8.0   8.2   8.4
     4.2      4.9   6.3   7.1   7.6   8.0   8.3   8.4
     6.2      5.7   7.2   8.0   8.5   8.9   9.2   9.4
     8.2      5.7   7.2   8.0   8.5   8.9   9.2   9.4
    10.2      5.8   7.2   8.0   8.6   8.9   9.2   9.4

------------------------------------------------------------------------------
Results of Observer Scan                                    UT
Site                              Long.   Lat.   Dist.    h  m  s
Adelaide                          138.6  -34.9   177km    9 49 18
Bendigo                           144.3  -36.8    71km   10  5 28
Melbourne                         145.0  -37.8   138km   10  7  7

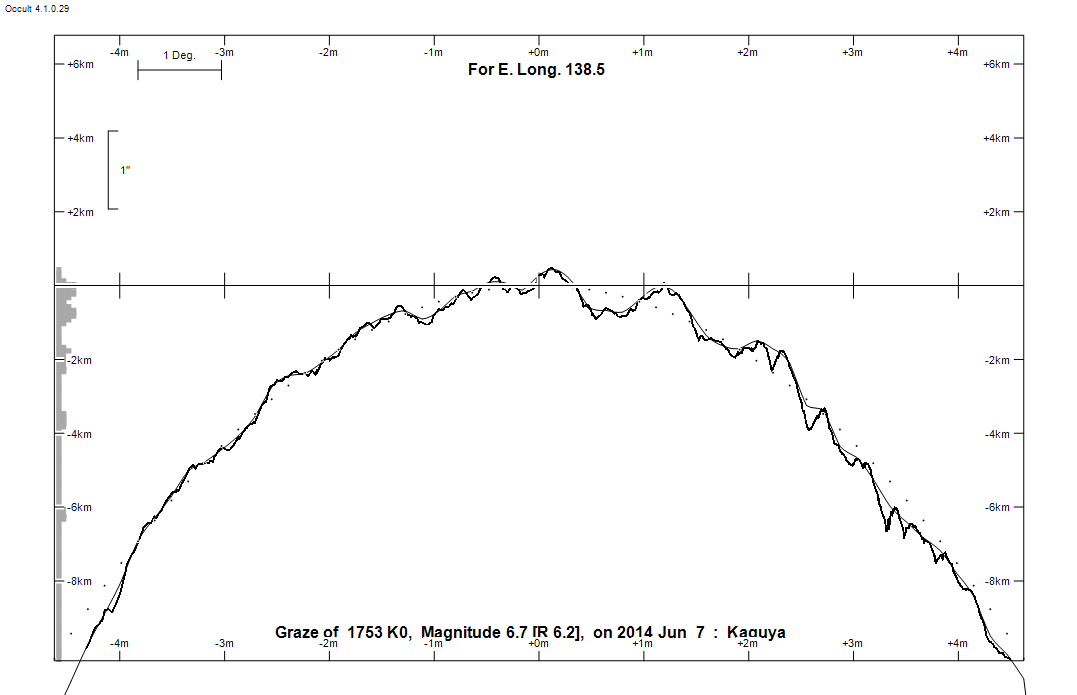

Lunar Limb Profile - Bendigo

Lunar Limb Profile
