Predictions for Grazing Occultation of ZC 2913, 2014 Aug 9, S of Melbourne

Graze profile Melbourne
Grazing Occultation of    2913 A2      Magnitude 5.0 [Red = 5.0]
   R2913 = 61 Sagittarii
Date: 2014 Aug 09 10h 41m,  to  2014 Aug 09 11h 12m

Nominal site altitude 100m

E. Longit.   Latitude     U.T.    Sun  Moon   TanZ   PA    AA      CA
   o  '  "    o  '  "   h  m  s   Alt Alt Az          o     o      o
 133  0  0  -38 13  5  10 40 31       42  76  1.12 171.0 182.61  13.51S
 133 30  0  -38 15 27  10 41  5       42  75  1.11 170.9 182.53  13.59S
 134  0  0  -38 17 42  10 41 40       43  75  1.09 170.9 182.44  13.67S
 134 30  0  -38 19 50  10 42 15       43  74  1.07 170.8 182.36  13.76S
 135  0  0  -38 21 51  10 42 50       44  74  1.05 170.7 182.27  13.84S
 135 30  0  -38 23 46  10 43 26       44  73  1.03 170.6 182.19  13.92S
 136  0  0  -38 25 33  10 44  2       45  73  1.02 170.5 182.10  14.01S
 136 30  0  -38 27 14  10 44 38       45  72  1.00 170.4 182.01  14.10S
 137  0  0  -38 28 47  10 45 15       45  71  0.98 170.3 181.92  14.19S
 137 30  0  -38 30 13  10 45 53       46  71  0.97 170.3 181.83  14.27S
 138  0  0  -38 31 32  10 46 30       46  70  0.95 170.2 181.74  14.36S
 138 30  0  -38 32 44  10 47  8       47  70  0.94 170.1 181.65  14.46S
 139  0  0  -38 33 48  10 47 46       47  69  0.92 170.0 181.56  14.55S
 139 30  0  -38 34 45  10 48 25       48  68  0.90 169.9 181.47  14.64S
 140  0  0  -38 35 35  10 49  4       48  68  0.89 169.8 181.37  14.73S
 140 30  0  -38 36 17  10 49 44       49  67  0.87 169.7 181.28  14.83S
 141  0  0  -38 36 52  10 50 24       49  66  0.86 169.6 181.18  14.92S
 141 30  0  -38 37 19  10 51  4       50  66  0.85 169.5 181.09  15.02S
 142  0  0  -38 37 38  10 51 44       50  65  0.83 169.4 180.99  15.11S
 142 30  0  -38 37 50  10 52 25       51  64  0.82 169.3 180.89  15.21S
 143  0  0  -38 37 53  10 53  7       51  64  0.80 169.2 180.79  15.31S
 143 30  0  -38 37 49  10 53 48       52  63  0.79 169.1 180.69  15.41S
 144  0  0  -38 37 38  10 54 31       52  62  0.78 169.0 180.59  15.50S
 144 30  0  -38 37 18  10 55 13       53  61  0.76 168.9 180.49  15.61S
 145  0  0  -38 36 50  10 55 56       53  61  0.75 168.8 180.39  15.71S
 145 30  0  -38 36 14  10 56 39       54  60  0.74 168.7 180.29  15.81S
 146  0  0  -38 35 30  10 57 23       54  59  0.73 168.6 180.18  15.91S
 146 30  0  -38 34 38  10 58  6       54  58  0.71 168.5 180.08  16.01S
 147  0  0  -38 33 38  10 58 51       55  57  0.70 168.4 179.97  16.12S
 147 30  0  -38 32 29  10 59 35       55  57  0.69 168.3 179.87  16.22S
 148  0  0  -38 31 12  11  0 21       56  56  0.68 168.2 179.76  16.33S
 148 30  0  -38 29 47  11  1  6       56  55  0.67 168.1 179.65  16.43S
 149  0  0  -38 28 13  11  1 52       57  54  0.65 168.0 179.56  16.53S
 149 30  0  -38 26 31  11  2 38       57  53  0.64 167.9 179.45  16.64S
 150  0  0  -38 24 40  11  3 25       58  52  0.63 167.8 179.34  16.75S
 150 30  0  -38 22 40  11  4 11       58  51  0.62 167.7 179.23  16.86S
 151  0  0  -38 20 32  11  4 59       59  50  0.61 167.5 179.12  16.97S
 151 30  0  -38 18 15  11  5 46       59  49  0.60 167.4 179.00  17.08S
 152  0  0  -38 15 49  11  6 35       59  48  0.59 167.3 178.89  17.19S
 152 30  0  -38 13 14  11  7 23       60  47  0.58 167.2 178.78  17.30S
 153  0  0  -38 10 31  11  8 12       60  46  0.57 167.1 178.67  17.41S
 153 30  0  -38  7 38  11  9  1       61  45  0.56 167.0 178.55  17.52S
 154  0  0  -38  4 36  11  9 51       61  44  0.55 166.9 178.44  17.64S
 154 30  0  -38  1 26  11 10 41       62  43  0.54 166.7 178.32  17.76S
 155  0  0  -37 58  6  11 11 31       62  42  0.53 166.6 178.21  17.87S

Path coordinates are referred to WGS84 (as used by GPS), with the
nominal site altitude being referenced to Mean Sea Level. The path
is adjusted for the effects of refraction at low moon altitudes.


    C A S S I N I   R E G I O N   G R A Z E
                Librations  Long -1.95   Lat -6.89
                            P +180.82     D -6.61
      Illumination of moon  97%+
        Elongation of Moon  161
    Vertical Profile Scale  1.98 km/arcsec at mean distance of moon
   Horizontal Scale Factor  1.57 deg/min


At longitude 144.00:
Limiting Magnitudes for various telescope apertures (in cm)
      CA\Tdia   5    10    15    20    25    30    35
    11.5      3.5   4.9   5.7   6.2   6.5   6.8   6.9
    13.5      4.4   5.8   6.6   7.1   7.4   7.7   7.9
    15.5      4.4   5.9   6.7   7.2   7.5   7.7   7.9
    17.5      4.4   5.9   6.7   7.2   7.5   7.7   7.9
    19.5      4.4   5.9   6.7   7.2   7.5   7.7   7.9

------------------------------------------------------------------------------
Results of Observer Scan                                    UT
Site                              Long.   Lat.   Dist.    h  m  s
Bendigo                           144.3  -36.8   202km   10 54 59
Melbourne                         145.0  -37.8    89km   10 55 53

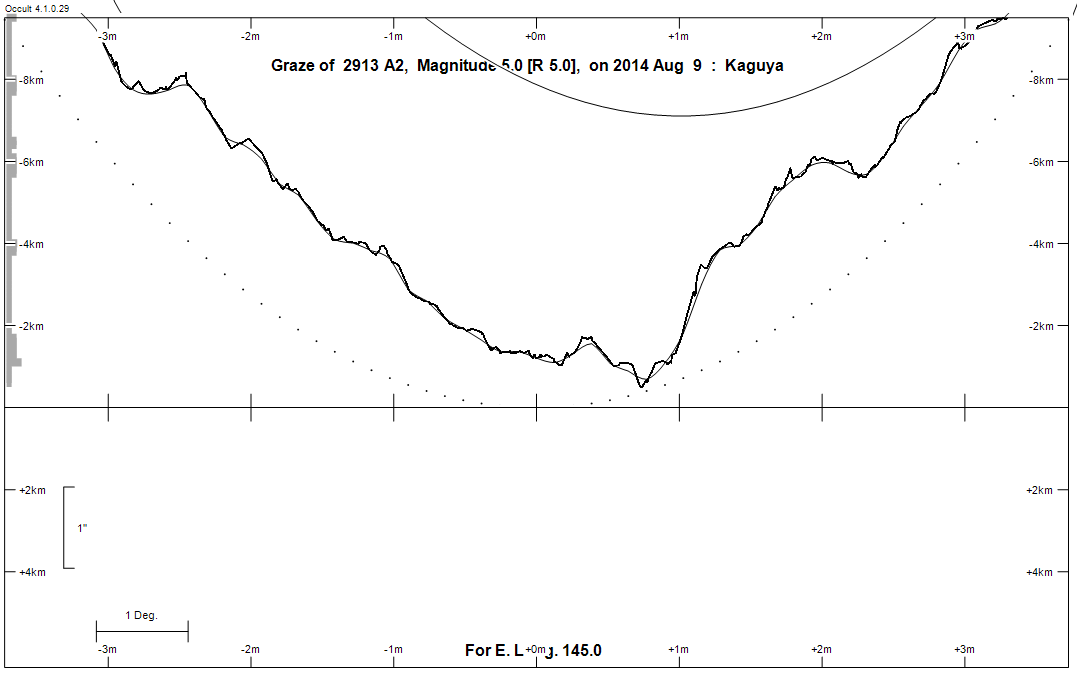

Lunar Limb Profile - Melbourne.

Lunar Limb Profile
