Predictions for Grazing Occultation of SAO160649, 2015 Mar 13

Graze profile
Grazing Occultation of  160649 F0      Magnitude 7.1 [Red = 6.9]  e
Date: 2015 Mar 13 19h 41m,  to  2015 Mar 13 20h 24m

Nominal site altitude 50m

E. Longit.   Latitude     U.T.    Sun  Moon   TanZ   PA    AA      CA
   o  '  "    o  '  "   h  m  s   Alt Alt Az          o     o      o
 135  0  0  -33  0 21  19 40 41       65  60  0.47 185.6 182.68   3.02S
 135 30  0  -33  5 58  19 41 44       66  58  0.46 185.5 182.56   2.90S
 136  0  0  -33 11 25  19 42 47       66  57  0.44 185.3 182.44   2.78S
 136 30  0  -33 16 43  19 43 50       67  56  0.43 185.2 182.32   2.65S
 137  0  0  -33 21 50  19 44 54       67  54  0.42 185.1 182.19   2.53S
 137 30  0  -33 26 49  19 45 57       67  53  0.42 185.0 182.06   2.40S
 138  0  0  -33 31 37  19 47  1       68  51  0.41 184.8 181.94   2.28S
 138 30  0  -33 36 15  19 48  5       68  50  0.40 184.7 181.81   2.15S
 139  0  0  -33 40 44  19 49  9  -12  69  48  0.39 184.6 181.68   2.02S
 139 30  0  -33 45  2  19 50 13  -11  69  46  0.38 184.4 181.55   1.89S
 140  0  0  -33 49 10  19 51 18  -10  70  45  0.37 184.3 181.41   1.75S
 140 30  0  -33 53  9  19 52 22  -10  70  43  0.36 184.2 181.28   1.62S
 141  0  0  -33 56 57  19 53 27   -9  70  41  0.36 184.0 181.15   1.49S
 141 30  0  -34  0 35  19 54 31   -9  71  39  0.35 183.9 181.01   1.35S
 142  0  0  -34  4  3  19 55 36   -8  71  37  0.34 183.8 180.87   1.21S
 142 30  0  -34  7 20  19 56 40   -7  71  35  0.34 183.6 180.74   1.08S
 143  0  0  -34 10 27  19 57 45   -7  72  33  0.33 183.5 180.60   0.94S
 143 30  0  -34 13 24  19 58 50   -6  72  31  0.32 183.4 180.46   0.80S
 144  0  0  -34 16 11  19 59 55   -5  72  28  0.32 183.2 180.32   0.66S
 144 30  0  -34 18 47  20  1  0   -5  73  26  0.31 183.1 180.18   0.52S
 145  0  0  -34 21 13  20  2  4   -4  73  24  0.31 182.9 180.04   0.38S
 145 30  0  -34 23 29  20  3  9   -3  73  21  0.31 182.8 179.89   0.24S
 146  0  0  -34 25 34  20  4 14   -3  73  19  0.30 182.7 179.75   0.09S
 146 30  0  -34 27 29  20  5 19   -2  73  16  0.30 182.5 179.61  -0.05S
 147  0  0  -34 29 13  20  6 24   -2  74  14  0.30 182.4 179.47  -0.19S
 147 30  0  -34 30 47  20  7 29   -1  74  11  0.29 182.2 179.32  -0.34S
 148  0  0  -34 32 10  20  8 34    0  74   9  0.29 182.1 179.19  -0.47S
 148 30  0  -34 33 23  20  9 39    0  74   6  0.29 181.9 179.04  -0.62S
 149  0  0  -34 34 26  20 10 44    1  74   4  0.29 181.8 178.89  -0.76S
 149 30  0  -34 35 18  20 11 48    2  74   1  0.29 181.6 178.75  -0.91S
 150  0  0  -34 36  0  20 12 53    2  74 358  0.29 181.5 178.60  -1.05S
 150 30  0  -34 36 31  20 13 58    3  74 356  0.29 181.4 178.46  -1.20S
 151  0  0  -34 36 52  20 15  3    4  74 353  0.29 181.2 178.31  -1.34S
 151 30  0  -34 37  2  20 16  7    4  74 350  0.29 181.1 178.16  -1.49S
 152  0  0  -34 37  2  20 17 12    5  73 348  0.30 180.9 178.02  -1.64S
 152 30  0  -34 36 51  20 18 17    5  73 345  0.30 180.8 177.87  -1.78S
 153  0  0  -34 36 30  20 19 21    6  73 343  0.30 180.6 177.73  -1.93S
 153 30  0  -34 35 59  20 20 26    7  73 341  0.31 180.5 177.58  -2.07S
 154  0  0  -34 35 17  20 21 30    7  73 338  0.31 180.3 177.44  -2.22S
 154 30  0  -34 34 25  20 22 34    8  73 336  0.31 180.2 177.30  -2.35S
 155  0  0  -34 33 23  20 23 38    9  72 334  0.32 180.1 177.16  -2.49S

Path coordinates are referred to WGS84 (as used by GPS), with the
nominal site altitude being referenced to Mean Sea Level. The path
is adjusted for the effects of refraction at low moon altitudes.

160649 is variable:
    160649 = V2378 Oph, 7.17 to 7.28, Hp, Type E:, Period 1.51027 days, Phase 90 %


    C A S S I N I   R E G I O N   G R A Z E
                Librations  Long -7.63   Lat -6.81
                            P +180.91     D -6.55
      Illumination of moon  49%-
        Elongation of Moon  89
    Vertical Profile Scale  1.94 km/arcsec at mean distance of moon
   Horizontal Scale Factor  1.27 deg/min


At longitude 145.00:
Limiting Magnitudes for various telescope apertures (in cm)
      CA\Tdia   5    10    15    20    25    30    35
    -3.6      3.2   4.6   5.4   5.9   6.2   6.5   6.6
    -1.6      3.2   4.6   5.4   5.9   6.2   6.5   6.6
     0.4      5.0   6.4   7.2   7.7   8.1   8.4   8.6
     2.4      5.0   6.4   7.2   7.7   8.1   8.4   8.6
     4.4      5.7   7.2   8.0   8.6   8.9   9.2   9.4

------------------------------------------------------------------------------
Results of Observer Scan                                    UT
Site                              Long.   Lat.   Dist.    h  m  s

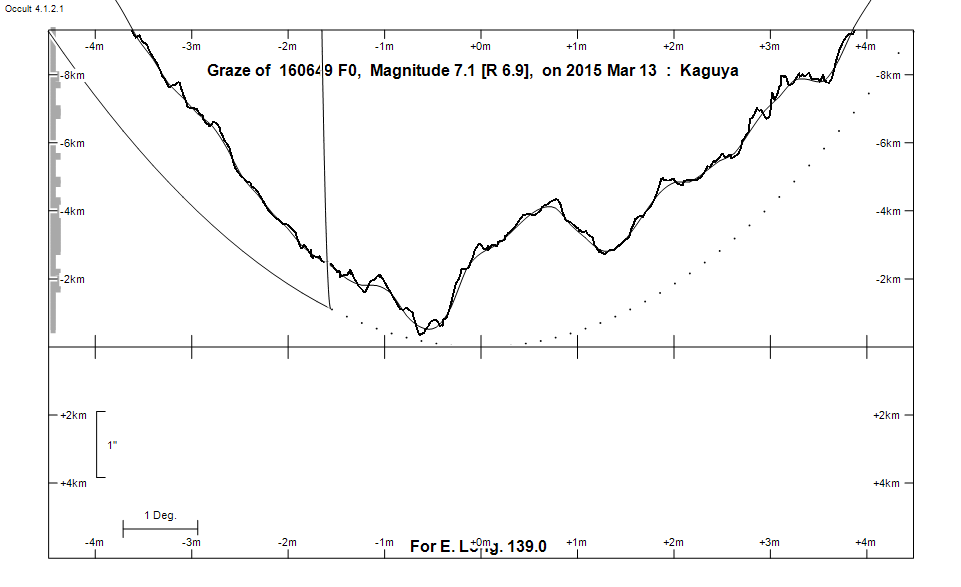

Lunar Limb Profile

Lunar Limb Profile
