DETAILED FINDER CHART:
OCCULTATION BY (519) SYLVANIA - 2000 MAY 31

Set out below are detailed finder chart for the target star. The occulted star is in the centre with a circle around it. The asteroid track is marked for 0 UT on days prior to and following the event. PPM 296879 involved in an occultation across Papua New Guinea on May 30 - 13:17 UT is also marked.

Charts prepared by Stephen Kerr.

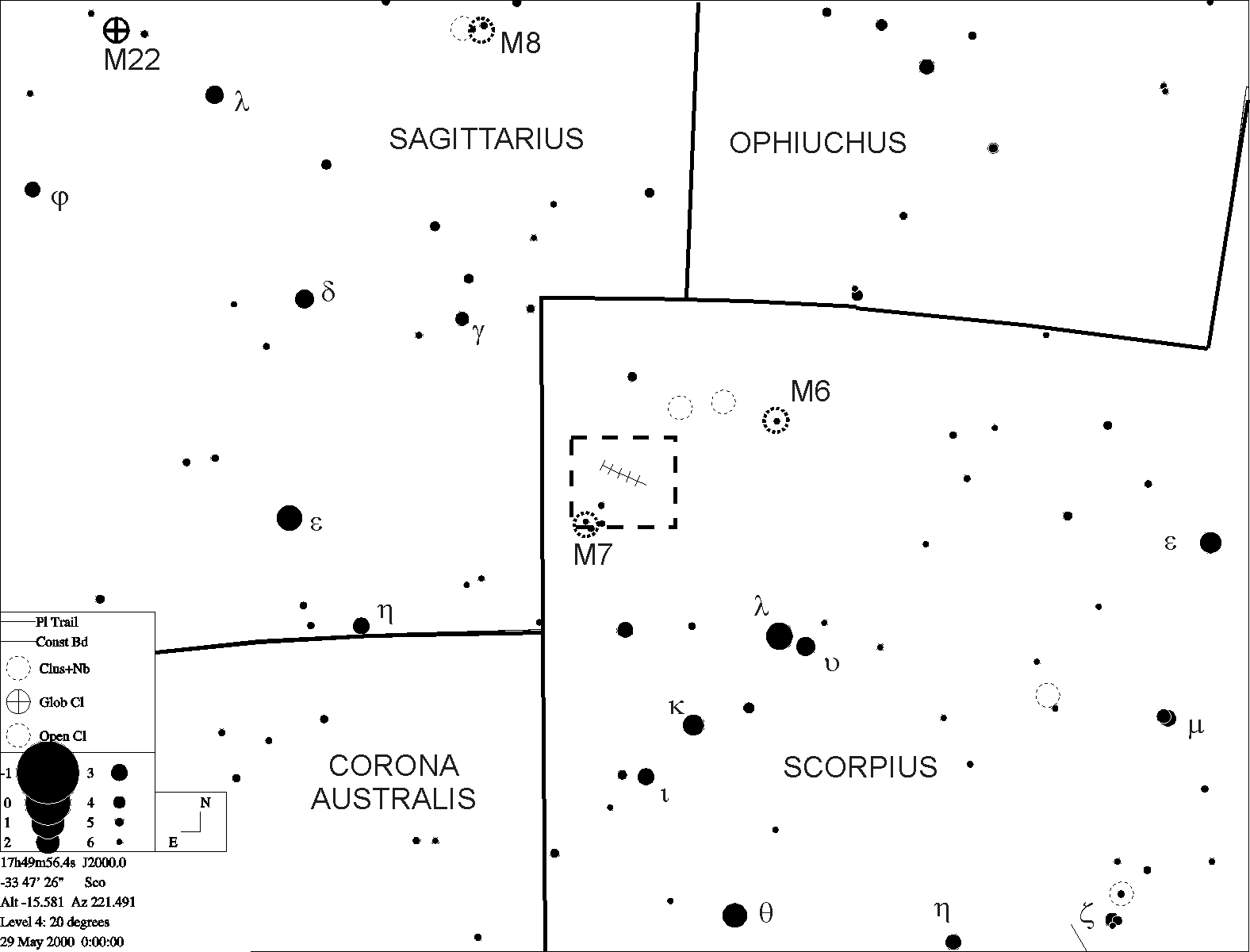

Sylvania Coarse Finder Chart

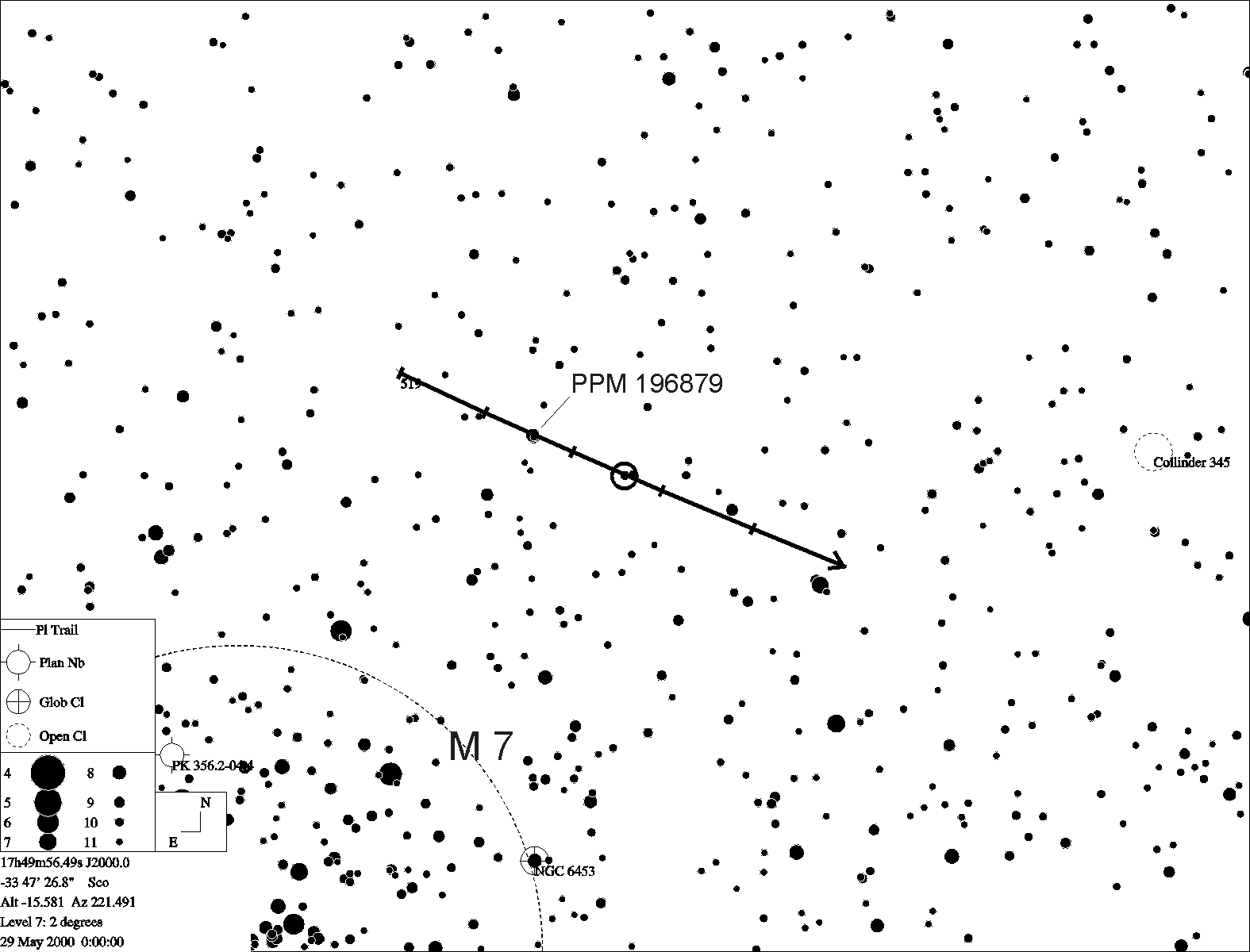

Sylvania Detailed Finder Chart
