ASTROMETRIC UPDATE:
OCCULTATION BY (424) GRATIA - 2008 JAN 23

[Edwin Goffin's Prediction + Finder Charts]

[Detailed Finder Charts]


Updated:   2008 JAN 17, 17:37 UT

Event Rank : 98

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

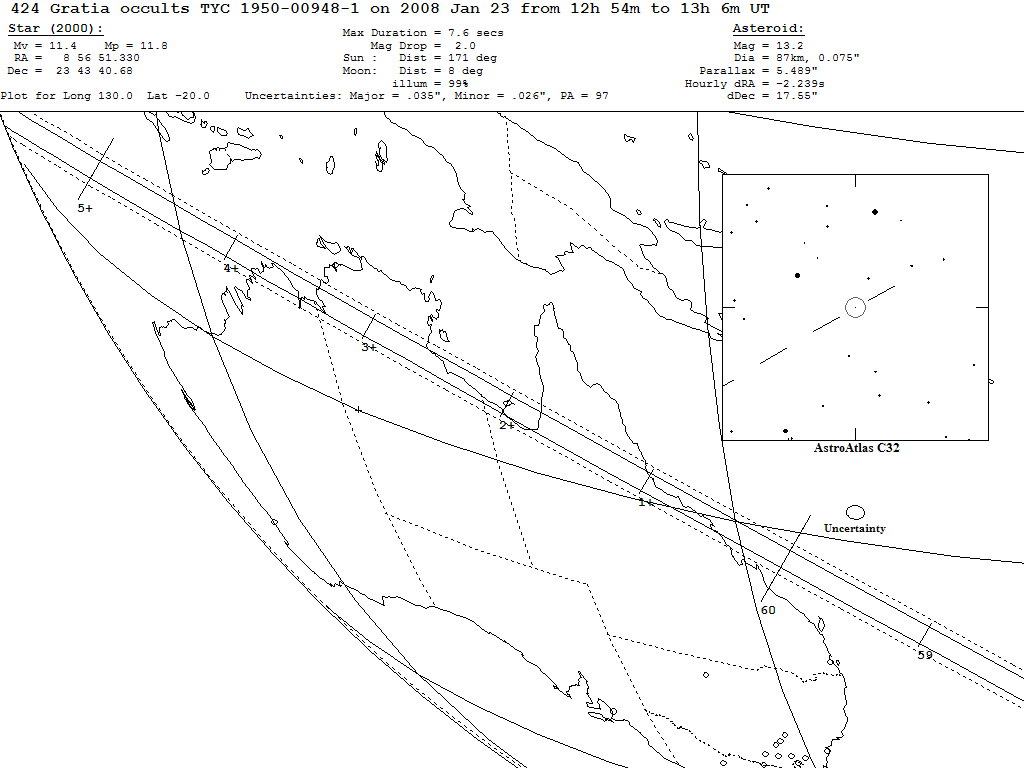

Gratia Update Map 1

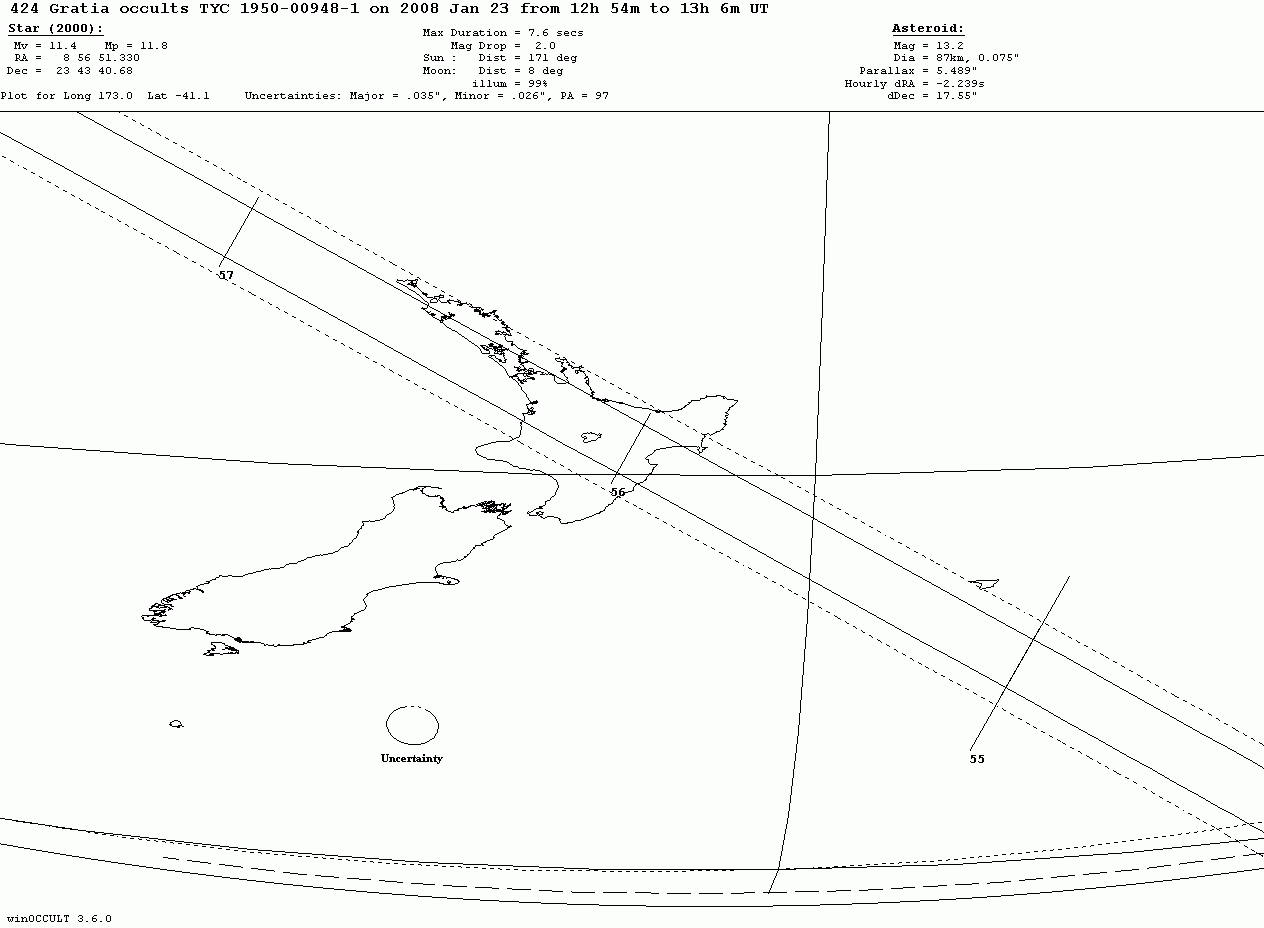

Gratia Update Map 2


On 2008 Jan 23 UT, the 87 km diameter asteroid (424) Gratia will occult a 11.4 mag star in the constellation Cancer for observers along a wide path across the north island of New Zealand and later over northern Queensland, Northern Territory and the far northern Western Australia.

In the case of an occultation, the combined light of the asteroid and the star will drop by 2.0 mag to 13.2 mag (the magnitude of the asteroid) for at most 7.6 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, TMO astrometry for the asteroid kindly provided by Bill Owen, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                  Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                        Longitude  Longitude  Longitude  Longitude
    179 32 52   -42  0  0   12 55 36    24   359   -28 -179 23 22  178 28 19 -178 37 55  177 41 20
    178 32  1   -41  0  0   12 55 44    25   360   -29  179 35 34  177 27 40 -179 39 10  176 40 48
    177 29 59   -40  0  0   12 55 52    26     1   -30  178 33 23  176 25 45  179 18 33  175 38 57
    176 26 41   -39  0  0   12 56  1    27     2   -31  177 30  1  175 22 29  178 15  7  174 35 42
    175 22  3   -38  0  0   12 56 11    28     3   -32  176 25 23  174 17 48  177 10 28  173 30 57

    174 15 57   -37  0  0   12 56 21    29     4   -33  175 19 24  173 11 35  176  4 32  172 24 37
    173  8 19   -36  0  0   12 56 31    30     5   -34  174 11 56  172  3 43  174 57 10  171 16 33
    171 59  0   -35  0  0   12 56 42    31     6   -36  173  2 54  170 54  5  173 48 18  170  6 40
    170 47 54   -34  0  0   12 56 53    32     8   -37  171 52 10  169 42 33  172 37 48  168 54 48
    169 34 51   -33  0  0   12 57  4    33     9   -38  170 39 35  168 28 58  171 25 32  167 40 46

    168 19 41   -32  0  0   12 57 17    34    10   -39  169 25  1  167 13  8  170 11 21  166 24 26
    167  2 14   -31  0  0   12 57 29    34    12   -40  168  8 17  165 54 53  168 55  6  165  5 32
    165 42 17   -30  0  0   12 57 42    35    13   -41  166 49 12  164 33 58  167 36 35  163 43 52
    164 19 34   -29  0  0   12 57 56    36    15   -41  165 27 31  163 10  7  166 15 34  162 19  7
    162 53 49   -28  0  0   12 58 11    37    17   -42  164  2 59  161 43  2  164 51 51  160 50 58

    161 24 42   -27  0  0   12 58 26    37    19   -43  162 35 18  160 12 19  163 25  6  159 19  0
    159 51 49   -26  0  0   12 58 41    38    20   -44  161  4  6  158 37 33  161 55  1  157 42 44
    158 14 40   -25  0  0   12 58 58    38    22   -45  159 28 57  156 58  9  160 21 11  156  1 34
    156 32 39   -24  0  0   12 59 15    38    24   -45  157 49 19  155 13 28  158 43  6  154 14 44
    154 45  2   -23  0  0   12 59 33    39    27   -46  156  4 33  153 22 37  157  0 12  152 21 15

    152 50 51   -22  0  0   12 59 52    39    29   -46  154 13 51  151 24 27  155 11 44  150 19 51
    150 48 50   -21  0  0   13  0 12    39    31   -46  152 16  7  149 17 26  153 16 44  148  8 43
    149  0  0   -20 10  2   13  0 30    38    33   -46  -19 28 40  -20 52  7  -18 59 17  -21 22 53
    148  0  0   -19 43 55   13  0 40    38    34   -46  -19  2 50  -20 25 40  -18 33 40  -20 56 11
    147  0  0   -19 18 47   13  0 49    38    35   -46  -18 38  0  -20  0 15  -18  9  2  -20 30 32

    146  0  0   -18 54 40   13  0 59    38    37   -46  -18 14  9  -19 35 50  -17 45 22  -20  5 54
    145  0  0   -18 31 31   13  1  8    38    38   -46  -17 51 16  -19 12 25  -17 22 40  -19 42 16
    144  0  0   -18  9 22   13  1 18    37    39   -46  -17 29 22  -18 50  0  -17  0 56  -19 19 40
    143  0  0   -17 48 11   13  1 27    37    40   -46  -17  8 25  -18 28 35  -16 40  9  -18 58  4
    142  0  0   -17 27 59   13  1 36    37    41   -45  -16 48 26  -18  8  9  -16 20 19  -18 37 28

    141  0  0   -17  8 46   13  1 45    36    42   -45  -16 29 25  -17 48 42  -16  1 27  -18 17 51
    140  0  0   -16 50 30   13  1 54    36    42   -45  -16 11 21  -17 30 14  -15 43 31  -17 59 14
    139  0  0   -16 33 12   13  2  3    36    43   -44  -15 54 14  -17 12 45  -15 26 32  -17 41 36
    138  0  0   -16 16 52   13  2 12    35    44   -44  -15 38  4  -16 56 14  -15 10 29  -17 24 56
    137  0  0   -16  1 28   13  2 20    35    45   -44  -15 22 51  -16 40 40  -14 55 22  -17  9 16

    136  0  0   -15 47  3   13  2 29    34    46   -43  -15  8 33  -16 26  5  -14 41 11  -16 54 34
    135  0  0   -15 33 34   13  2 37    34    47   -43  -14 55 13  -16 12 28  -14 27 56  -16 40 50
    134  0  0   -15 21  1   13  2 45    33    48   -42  -14 42 48  -15 59 48  -14 15 36  -16 28  4
    133  0  0   -15  9 26   13  2 53    33    48   -42  -14 31 19  -15 48  5  -14  4 12  -16 16 16
    132  0  0   -14 58 47   13  3  1    32    49   -41  -14 20 47  -15 37 19  -13 53 44  -16  5 25

    131  0  0   -14 49  4   13  3  9    31    50   -41  -14 11 10  -15 27 31  -13 44 11  -15 55 33
    130  0  0   -14 40 18   13  3 16    31    50   -40  -14  2 28  -15 18 40  -13 35 33  -15 46 37
    129  0  0   -14 32 28   13  3 24    30    51   -39  -13 54 43  -15 10 45  -13 27 50  -15 38 40
    128  0  0   -14 25 34   13  3 31    29    52   -39  -13 47 53  -15  3 48  -13 21  3  -15 31 39
    127  0  0   -14 19 37   13  3 38    29    52   -38  -13 41 58  -14 57 47  -13 15 11  -15 25 36

    126  0  0   -14 14 36   13  3 45    28    53   -37  -13 37  0  -14 52 43  -13 10 14  -15 20 30
    125  0  0   -14 10 31   13  3 52    27    53   -37  -13 32 56  -14 48 36  -13  6 12  -15 16 22
    124  0  0   -14  7 22   13  3 59    27    54   -36  -13 29 49  -14 45 26  -13  3  5  -15 13 11
    123  0  0   -14  5 10   13  4  5    26    54   -35  -13 27 37  -14 43 13  -13  0 54  -15 10 57
    122  0  0   -14  3 54   13  4 12    25    55   -35  -13 26 21  -14 41 57  -12 59 38  -15  9 41

    121  0  0   -14  3 34   13  4 18    24    55   -34  -13 26  1  -14 41 38  -12 59 17  -15  9 23
    120  0  0   -14  4 11   13  4 24    24    56   -33  -13 26 37  -14 42 17  -12 59 52  -15 10  2
