ASTROMETRIC UPDATE:
OCCULTATION BY (930) WESTPHALIA - 2008 Sep 28

[Detailed Finder Charts]


Updated:   2008 SEP 17, 01:44 UT

Event Rank : 60

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

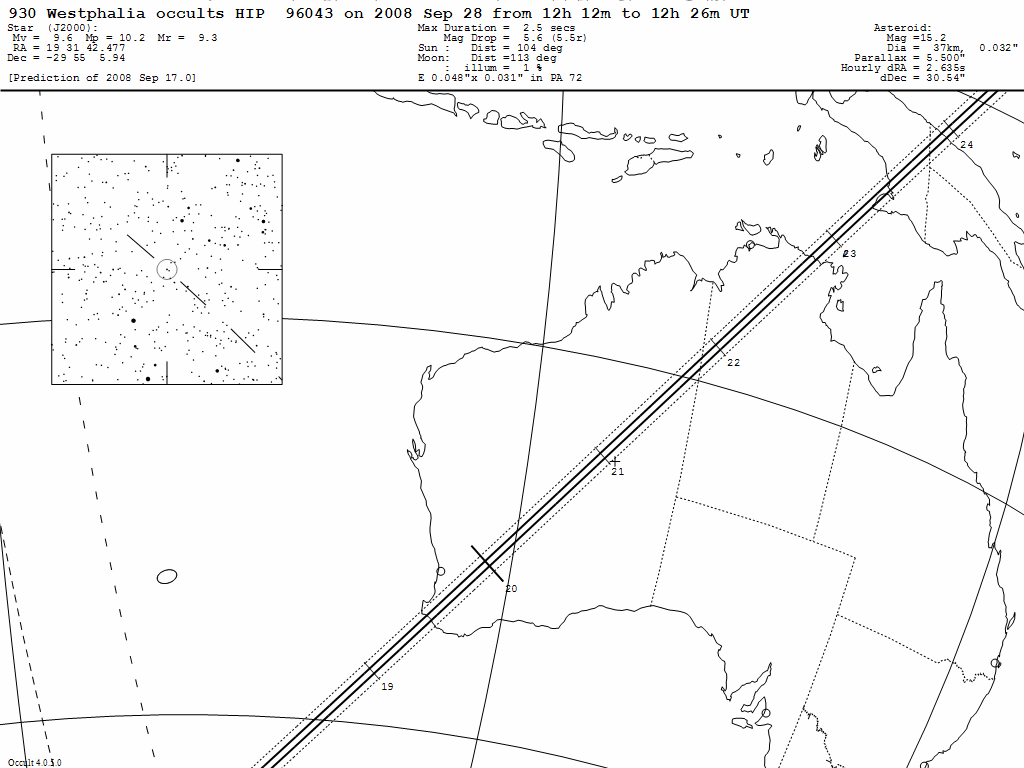

Westphalia Update Map


On 2008 Sep 28 UT, the 37 km diameter asteroid (930) Westphalia will occult a 9.6 mag star in the constellation Sagittarius for observers along a narrow path across Australia, from Nannup in southwestern Western Australia across Western Australia and northern Northern Territory to Millingimbi.

In the case of an occultation, the combined light of the asteroid and the star will drop by 5.6 mag to 15.2 mag (the magnitude of the asteroid) for at most 2.5 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                   Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                        Longitude  Longitude  Longitude  Longitude
    143 33  4   - 1  0  0   12 24  9    39   231   -62  143 46 29  143 19 40  144 14 27  142 51 50
                                                         Latitude   Latitude   Latitude   Latitude
    142  0  0   - 2 51 40   12 23 57    41   232   -60  - 3  7 48  - 2 35 33  - 3 41 27  - 2  2  8
    141  0  0   - 4  4 37   12 23 48    43   232   -59  - 4 20 51  - 3 48 24  - 4 54 43  - 3 14 46
    140  0  0   - 5 18 15   12 23 40    45   232   -57  - 5 34 35  - 5  1 56  - 6  8 39  - 4 28  6

    139  0  0   - 6 32 27   12 23 31    46   233   -56  - 6 48 53  - 6 16  3  - 7 23  8  - 5 42  1
    138  0  0   - 7 47  8   12 23 22    48   233   -55  - 8  3 39  - 7 30 39  - 8 38  6  - 6 56 27
    137  0  0   - 9  2 14   12 23 13    49   234   -54  - 9 18 49  - 8 45 40  - 9 53 25  - 8 11 18
    136  0  0   -10 17 36   12 23  3    51   234   -52  -10 34 16  -10  0 59  -11  9  1  - 9 26 28
    135  0  0   -11 33 11   12 22 53    52   235   -51  -11 49 54  -11 16 29  -12 24 46  -10 41 52

    134  0  0   -12 48 51   12 22 43    54   236   -49  -13  5 37  -12 32  6  -13 40 36  -11 57 22
    133  0  0   -14  4 29   12 22 33    55   237   -48  -14 21 18  -13 47 42  -14 56 22  -13 12 53
    132  0  0   -15 20  0   12 22 23    57   238   -47  -15 36 51  -15  3 11  -16 11 59  -14 28 18
    131  0  0   -16 35 18   12 22 13    59   239   -45  -16 52 10  -16 18 27  -17 27 20  -15 43 31
    130  0  0   -17 50 14   12 22  2    60   240   -44  -18  7  7  -17 33 23  -18 42 20  -16 58 25

    129  0  0   -19  4 45   12 21 51    61   242   -43  -19 21 38  -18 47 53  -19 56 50  -18 12 55
    128  0  0   -20 18 42   12 21 41    63   243   -41  -20 35 35  -20  1 51  -21 10 46  -19 26 54
    127  0  0   -21 32  1   12 21 30    64   245   -40  -21 48 52  -21 15 11  -22 24  2  -20 40 16
    126  0  0   -22 44 35   12 21 19    66   247   -38  -23  1 25  -22 27 47  -23 36 31  -21 52 55
    125  0  0   -23 56 20   12 21  8    67   249   -37  -24 13  8  -23 39 34  -24 48  9  -23  4 46

    124  0  0   -25  7 10   12 20 58    68   252   -36  -25 23 55  -24 50 26  -25 58 50  -24 15 45
    123  0  0   -26 17  0   12 20 47    69   254   -34  -26 33 41  -26  0 20  -27  8 30  -25 25 45
    122  0  0   -27 25 46   12 20 36    71   257   -33  -27 42 24  -27  9 10  -28 17  4  -26 34 43
    121  0  0   -28 33 24   12 20 26    72   260   -32  -28 49 57  -28 16 52  -29 24 28  -27 42 34
    120  0  0   -29 39 51   12 20 15    73   264   -31  -29 56 19  -29 23 24  -30 30 40  -28 49 16

    119  0  0   -30 45  3   12 20  5    74   268   -29  -31  1 26  -30 28 41  -31 35 36  -29 54 44
    118  0  0   -31 48 57   12 19 54    75   272   -28  -32  5 15  -31 32 41  -32 39 12  -30 58 55
    117  0  0   -32 51 32   12 19 44    75   277   -27  -33  7 43  -32 35 22  -33 41 28  -32  1 49
    116  0  0   -33 52 45   12 19 34    76   282   -26  -34  8 50  -33 36 41  -34 42 21  -33  3 21
    115  0  0   -34 52 35   12 19 24    77   287   -25  -35  8 33  -34 36 38  -35 41 50  -34  3 31

    114  0  0   -35 51  0   12 19 15    77   293   -23  -36  6 51  -35 35 10  -36 39 54  -35  2 18
    113  0  0   -36 47 59   12 19  5    77   299   -22  -37  3 43  -36 32 17  -37 36 31  -35 59 40

Uncertainty in time = +/- 4 secs

[Prediction of 2008 Sep 17.0]
