ASTROMETRIC UPDATE:
OCCULTATION BY (5290) LANGEVIN - 2009 OCT 10

[Detailed Finder Charts]


Updated:   2009 SEP 07, 00:57 UT

Event Rank : 8

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

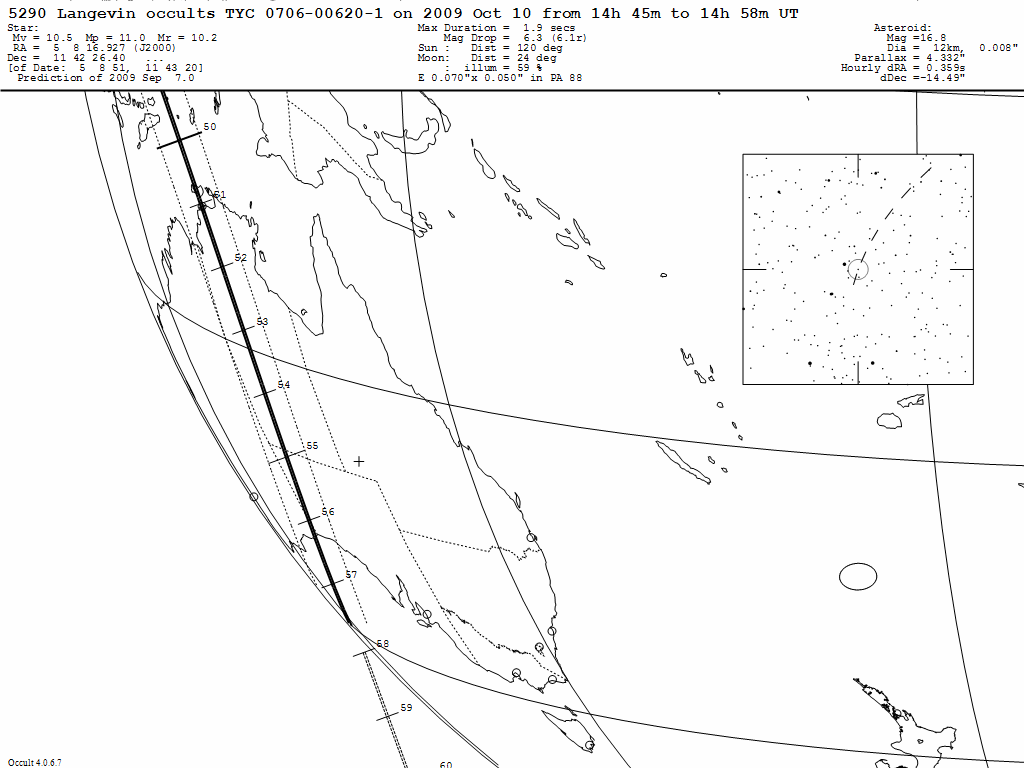

Langevin Update Map


On 2009 Oct 10 UT, the 12 km diameter asteroid (5290) Langevin will occult a 10.5 mag star in the constellation Orion for observers along a narrow, significant uncertainty path across central Australia, running from Darwin to Eucla.

In the case of an occultation, the combined light of the asteroid and the star will drop by 6.3 mag to 16.8 mag (the magnitude of the asteroid) for at most 1.9 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                  Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                        Longitude  Longitude  Longitude  Longitude
    123  0 53   -37  0  0   14 57 14     8    69   -45  122 44 39  123 16 49  116 56 12  127 16 47
    124 21  2   -36  0  0   14 57  4     9    68   -47  124  6 16  124 35 35  119  4 54  128 18 31
    125 29 58   -35  0  0   14 56 53    11    68   -48  125 16 17  125 43 28  120 45 30  129 13  2
    126 29 54   -34  0  0   14 56 42    12    67   -49  126 17  4  126 42 35  122  8  7  130  1 22
    127 22 21   -33  0  0   14 56 30    13    67   -50  127 10 12  127 34 22  123 17 46  130 44 16

    128  8 24   -32  0  0   14 56 17    14    67   -51  127 56 48  128 19 53  124 17 19  131 22 21
    128 48 53   -31  0  0   14 56  4    15    67   -52  128 37 44  128 59 55  125  8 41  131 56  6
    129 24 25   -30  0  0   14 55 51    15    66   -53  129 13 40  129 35  5  125 53  7  132 25 54
    129 55 29   -29  0  0   14 55 37    16    66   -54  129 45  4  130  5 50  126 31 36  132 52  5
    130 22 31   -28  0  0   14 55 23    17    66   -55  130 12 22  130 32 35  127  4 48  133 14 54

    130 45 48   -27  0  0   14 55  8    17    67   -56  130 35 53  130 55 38  127 33 15  133 34 35
    131  5 35   -26  0  0   14 54 53    18    67   -57  130 55 52  131 15 14  127 57 23  133 51 18
    131 22  7   -25  0  0   14 54 38    19    67   -58  131 12 34  131 31 36  128 17 32  134  5 13
    131 35 32   -24  0  0   14 54 23    19    67   -59  131 26  8  131 44 53  128 33 56  134 16 27
    131 46  0   -23  0  0   14 54  7    20    67   -60  131 36 42  131 55 14  128 46 49  134 25  6

    131 53 36   -22  0  0   14 53 51    20    68   -61  131 44 24  132  2 45  128 56 20  134 31 15
    131 58 26   -21  0  0   14 53 35    20    68   -62  131 49 18  132  7 31  129  2 35  134 34 59
    132  0 34   -20  0  0   14 53 18    21    68   -63  131 51 29  132  9 36  129  5 41  134 36 19
    132  0  2   -19  0  0   14 53  1    21    69   -64  131 50 58  132  9  2  129  5 39  134 35 18
    131 56 51   -18  0  0   14 52 44    21    69   -65  131 47 48  132  5 51  129  2 32  134 31 57

    131 51  1   -17  0  0   14 52 26    22    70   -66  131 41 57  132  0  2  128 56 20  134 26 17
    131 42 31   -16  0  0   14 52  9    22    70   -67  131 33 25  131 51 34  128 46 59  134 18 16
    131 31 19   -15  0  0   14 51 51    22    71   -68  131 22  9  131 40 25  128 34 26  134  7 52
    131 17 20   -14  0  0   14 51 32    22    71   -69  131  8  5  131 26 31  128 18 34  133 55  4
    131  0 29   -13  0  0   14 51 14    22    72   -70  130 51  8  131  9 46  127 59 15  133 39 47

    130 40 40   -12  0  0   14 50 55    22    72   -71  130 31 11  130 50  5  127 36 17  133 21 57
    130 17 42   -11  0  0   14 50 36    22    73   -72  130  8  3  130 27 17  127  9 24  133  1 27
    129 51 24   -10  0  0   14 50 16    21    73   -73  129 41 32  130  1 11  126 38 15  132 38 10
Uncertainty in time = +/- 16 secs

Prediction of 2009 Sep  7.0
