ASTROMETRIC UPDATE:
OCCULTATION BY (735) MARGHANNA - 2010 May 04

[Detailed Finder Charts]


Updated:   2010 APR 15, 17:53 UT

Event Rank : 87

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

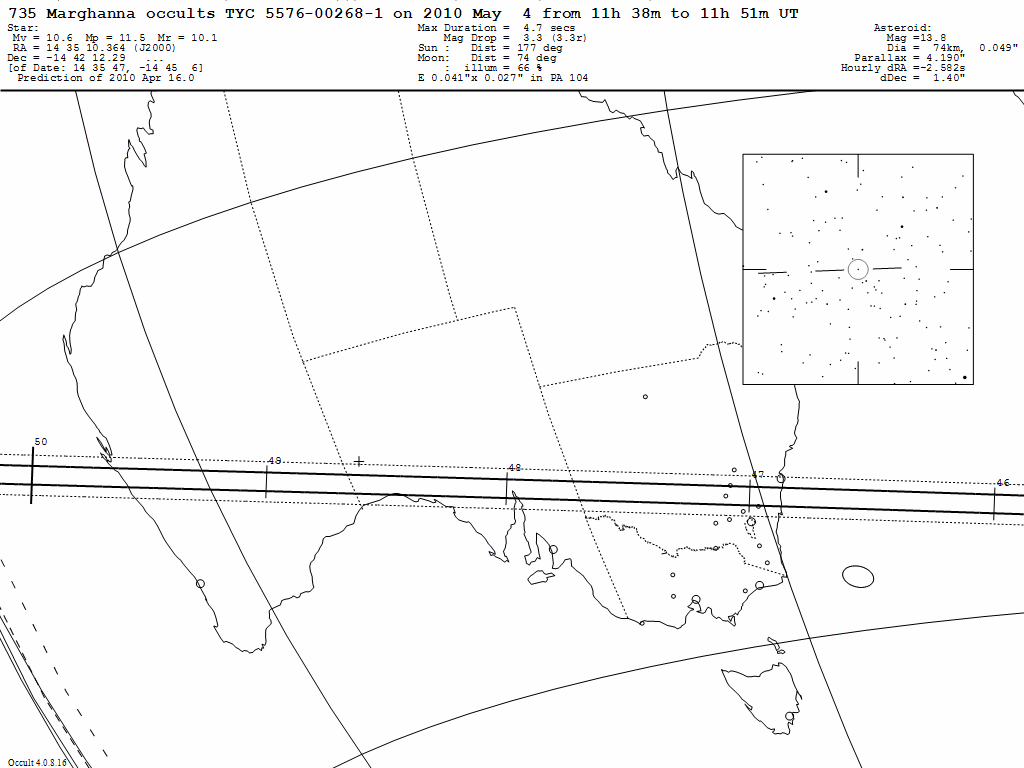

Marghanna Update Map1

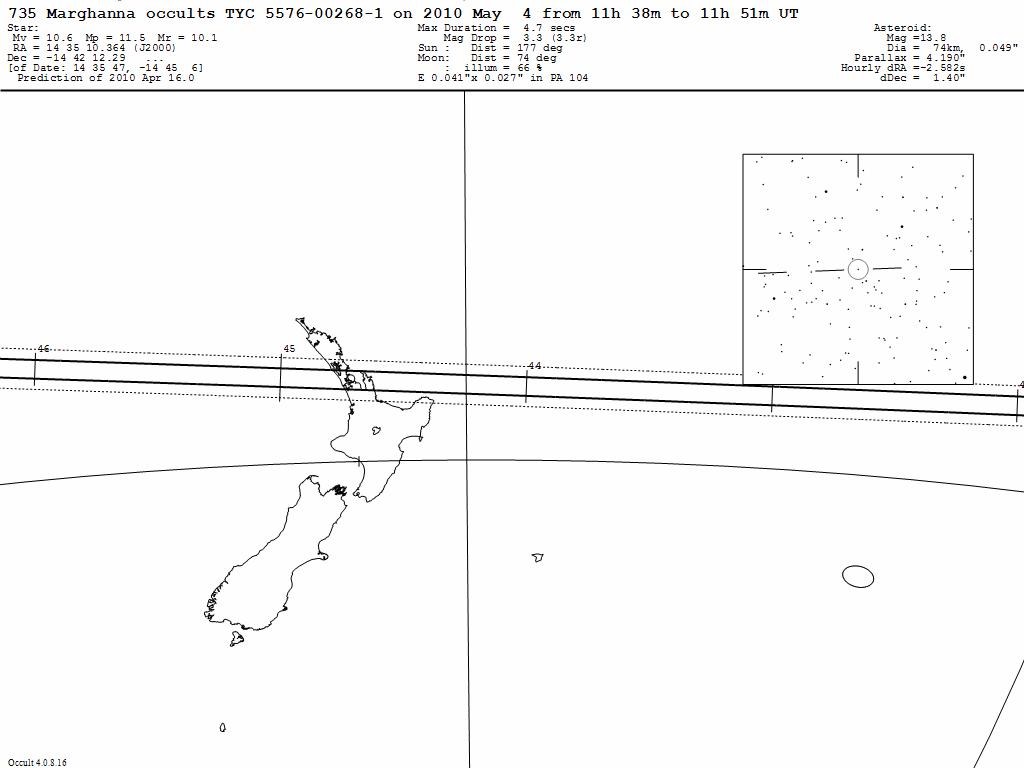

Marghanna Update Map2


On 2010 May 04 UT, the 74 km diameter asteroid (735) Marghanna will occult a 10.6 mag star in the constellation Libra for observers along a path across the North Island of New Zealand, directly over Auckland, and across southern Australia from Kiama in New South Wales across southern South Australia to Kalbarri in Western Australia. The one sigma limit streatches from Sydney to Canberra.

In the case of an occultation, the combined light of the asteroid and the star will drop by 3.3 mag to 13.8 mag (the magnitude of the asteroid) for at most 4.7 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, TMO astrometry for the asteroid kindly provided by Bill Owen, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                   Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
    106  0  0   -25 17 26   11 50  0    21    97   -19  -24 55  1  -25 39 54  -24 29 32  -26  5 36
    107  0  0   -25 32 49   11 49 57    22    96   -20  -25 10 24  -25 55 17  -24 44 56  -26 20 59
    108  0  0   -25 48  7   11 49 55    23    96   -21  -25 25 43  -26 10 35  -25  0 14  -26 36 16
    109  0  0   -26  3 19   11 49 52    24    95   -22  -25 40 55  -26 25 47  -25 15 28  -26 51 27
    110  0  0   -26 18 26   11 49 49    25    95   -23  -25 56  2  -26 40 53  -25 30 35  -27  6 33

    111  0  0   -26 33 27   11 49 46    26    94   -24  -26 11  4  -26 55 53  -25 45 37  -27 21 33
    112  0  0   -26 48 21   11 49 43    27    94   -25  -26 25 58  -27 10 47  -26  0 32  -27 36 26
    113  0  0   -27  3  9   11 49 40    28    93   -26  -26 40 47  -27 25 35  -26 15 21  -27 51 13
    114  0  0   -27 17 50   11 49 36    28    93   -27  -26 55 28  -27 40 15  -26 30  3  -28  5 53
    115  0  0   -27 32 24   11 49 33    29    92   -28  -27 10  3  -27 54 49  -26 44 38  -28 20 26

    116  0  0   -27 46 51   11 49 30    30    92   -28  -27 24 30  -28  9 15  -26 59  6  -28 34 52
    117  0  0   -28  1 10   11 49 26    31    91   -29  -27 38 50  -28 23 34  -27 13 27  -28 49 10
    118  0  0   -28 15 22   11 49 23    32    90   -30  -27 53  2  -28 37 45  -27 27 40  -29  3 20
    119  0  0   -28 29 25   11 49 19    33    90   -31  -28  7  7  -28 51 48  -27 41 45  -29 17 22
    120  0  0   -28 43 21   11 49 15    34    89   -32  -28 21  3  -29  5 42  -27 55 42  -29 31 16

    121  0  0   -28 57  8   11 49 11    35    89   -33  -28 34 50  -29 19 29  -28  9 30  -29 45  2
    122  0  0   -29 10 46   11 49  8    35    88   -34  -28 48 30  -29 33  7  -28 23 10  -29 58 39
    123  0  0   -29 24 16   11 49  4    36    87   -35  -29  2  0  -29 46 36  -28 36 41  -30 12  8
    124  0  0   -29 37 37   11 49  0    37    87   -35  -29 15 22  -29 59 56  -28 50  4  -30 25 27
    125  0  0   -29 50 49   11 48 56    38    86   -36  -29 28 34  -30 13  7  -29  3 17  -30 38 37

    126  0  0   -30  3 51   11 48 51    39    85   -37  -29 41 37  -30 26  8  -29 16 21  -30 51 38
    127  0  0   -30 16 44   11 48 47    40    84   -38  -29 54 31  -30 39  1  -29 29 15  -31  4 29
    128  0  0   -30 29 27   11 48 43    40    84   -39  -30  7 15  -30 51 43  -29 42  0  -31 17 10
    129  0  0   -30 42  0   11 48 39    41    83   -40  -30 19 49  -31  4 15  -29 54 35  -31 29 42
    130  0  0   -30 54 24   11 48 34    42    82   -40  -30 32 13  -31 16 38  -30  7  0  -31 42  3

    131  0  0   -31  6 37   11 48 30    43    81   -41  -30 44 27  -31 28 50  -30 19 15  -31 54 15
    132  0  0   -31 18 39   11 48 25    44    81   -42  -30 56 30  -31 40 52  -30 31 19  -32  6 16
    133  0  0   -31 30 32   11 48 21    44    80   -43  -31  8 23  -31 52 44  -30 43 13  -32 18  6
    134  0  0   -31 42 14   11 48 16    45    79   -44  -31 20  6  -32  4 25  -30 54 57  -32 29 46
    135  0  0   -31 53 45   11 48 12    46    78   -44  -31 31 38  -32 15 55  -31  6 30  -32 41 16

    136  0  0   -32  5  5   11 48  7    47    77   -45  -31 42 59  -32 27 14  -31 17 52  -32 52 34
    137  0  0   -32 16 14   11 48  2    47    76   -46  -31 54  9  -32 38 22  -31 29  2  -33  3 41
    138  0  0   -32 27 12   11 47 57    48    75   -47  -32  5  8  -32 49 20  -31 40  2  -33 14 37
    139  0  0   -32 37 59   11 47 53    49    74   -48  -32 15 55  -33  0  6  -31 50 51  -33 25 22
    140  0  0   -32 48 34   11 47 48    50    73   -48  -32 26 32  -33 10 40  -32  1 28  -33 35 56

    141  0  0   -32 58 58   11 47 43    50    72   -49  -32 36 57  -33 21  3  -32 11 54  -33 46 18
    142  0  0   -33  9 11   11 47 38    51    71   -50  -32 47 10  -33 31 15  -32 22  8  -33 56 29
    143  0  0   -33 19 12   11 47 33    52    70   -51  -32 57 12  -33 41 15  -32 32 11  -34  6 28
    144  0  0   -33 29  1   11 47 28    53    69   -51  -33  7  2  -33 51  3  -32 42  2  -34 16 15
    145  0  0   -33 38 38   11 47 23    53    68   -52  -33 16 40  -34  0 40  -32 51 41  -34 25 51

    146  0  0   -33 48  3   11 47 18    54    67   -53  -33 26  6  -34 10  4  -33  1  8  -34 35 14
    147  0  0   -33 57 17   11 47 13    55    65   -53  -33 35 20  -34 19 17  -33 10 23  -34 44 26
    148  0  0   -34  6 18   11 47  8    55    64   -54  -33 44 22  -34 28 17  -33 19 26  -34 53 25
    149  0  0   -34 15  7   11 47  2    56    63   -55  -33 53 12  -34 37  5  -33 28 17  -35  2 12
    150  0  0   -34 23 44   11 46 57    57    62   -56  -34  1 50  -34 45 41  -33 36 56  -35 10 48

    151  0  0   -34 32  8   11 46 52    57    60   -56  -34 10 15  -34 54  5  -33 45 22  -35 19 10
    152  0  0   -34 40 21   11 46 47    58    59   -57  -34 18 28  -35  2 17  -33 53 36  -35 27 21
    153  0  0   -34 48 20   11 46 41    59    58   -58  -34 26 29  -35 10 15  -34  1 37  -35 35 19
    154  0  0   -34 56  8   11 46 36    59    56   -58  -34 34 17  -35 18  2  -34  9 26  -35 43  5
    155  0  0   -35  3 42   11 46 31    60    55   -59  -34 41 52  -35 25 36  -34 17  3  -35 50 38

    156  0  0   -35 11  5   11 46 26    60    53   -59  -34 49 15  -35 32 57  -34 24 26  -35 57 58
    157  0  0   -35 18 14   11 46 20    61    51   -60  -34 56 25  -35 40  6  -34 31 37  -36  5  6
    158  0  0   -35 25 11   11 46 15    61    50   -61  -35  3 23  -35 47  2  -34 38 36  -36 12  1
    159  0  0   -35 31 55   11 46 10    62    48   -61  -35 10  8  -35 53 45  -34 45 21  -36 18 44
    160  0  0   -35 38 26   11 46  4    62    46   -62  -35 16 40  -36  0 16  -34 51 54  -36 25 13

    161  0  0   -35 44 44   11 45 59    63    44   -62  -35 22 59  -36  6 34  -34 58 14  -36 31 30
    162  0  0   -35 50 50   11 45 53    63    43   -63  -35 29  5  -36 12 39  -35  4 21  -36 37 34
    163  0  0   -35 56 43   11 45 48    64    41   -63  -35 34 58  -36 18 31  -35 10 15  -36 43 26
    164  0  0   -36  2 22   11 45 42    64    39   -64  -35 40 38  -36 24 10  -35 15 56  -36 49  4
    165  0  0   -36  7 49   11 45 37    65    37   -64  -35 46  6  -36 29 36  -35 21 24  -36 54 29

    166  0  0   -36 13  3   11 45 32    65    35   -65  -35 51 20  -36 34 49  -35 26 39  -36 59 42
    167  0  0   -36 18  3   11 45 26    65    33   -65  -35 56 21  -36 39 49  -35 31 41  -37  4 41
    168  0  0   -36 22 51   11 45 21    66    30   -66  -36  1  9  -36 44 36  -35 36 29  -37  9 28
    169  0  0   -36 27 26   11 45 15    66    28   -66  -36  5 44  -36 49 10  -35 41  5  -37 14  1
    170  0  0   -36 31 47   11 45 10    66    26   -66  -36 10  6  -36 53 31  -35 45 28  -37 18 21

    171  0  0   -36 35 55   11 45  4    67    24   -67  -36 14 15  -36 57 39  -35 49 37  -37 22 29
    172  0  0   -36 39 50   11 44 59    67    21   -67  -36 18 11  -37  1 33  -35 53 33  -37 26 23
    173  0  0   -36 43 32   11 44 53    67    19   -67  -36 21 53  -37  5 15  -35 57 16  -37 30  4
    174  0  0   -36 47  1   11 44 48    67    17   -68  -36 25 22  -37  8 43  -36  0 45  -37 33 32
    175  0  0   -36 50 17   11 44 42    67    14   -68  -36 28 38  -37 11 58  -36  4  2  -37 36 46

    176  0  0   -36 53 19   11 44 37    68    12   -68  -36 31 41  -37 15  0  -36  7  5  -37 39 48
    177  0  0   -36 56  8   11 44 31    68     9   -68  -36 34 30  -37 17 49  -36  9 55  -37 42 36
    178  0  0   -36 58 44   11 44 26    68     7   -69  -36 37  6  -37 20 24  -36 12 31  -37 45 11
    179  0  0   -37  1  6   11 44 20    68     4   -69  -36 39 29  -37 22 47  -36 14 54  -37 47 33
    180  0  0   -37  3 15   11 44 15    68     2   -69  -36 41 39  -37 24 56  -36 17  4  -37 49 42

   -179  0  0   -37  5 11   11 44  9    68   359   -69  -36 43 35  -37 26 51  -36 19  1  -37 51 37
   -178  0  0   -37  6 54   11 44  4    68   357   -69  -36 45 18  -37 28 34  -36 20 44  -37 53 20
   -177  0  0   -37  8 23   11 43 58    68   354   -69  -36 46 47  -37 30  3  -36 22 13  -37 54 48

Uncertainty in time = +/- 4 secs

Prediction of 2010 Apr 16.0
