ASTROMETRIC UPDATE:
OCCULTATION BY (309) FRATERNITAS - 2010 Dec 09

[Edwin Goffin's Prediction + Finder Charts]

[Detailed Finder Charts]


Updated:   2010 OCT 14, 10:41 UT

Event Rank : 58

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

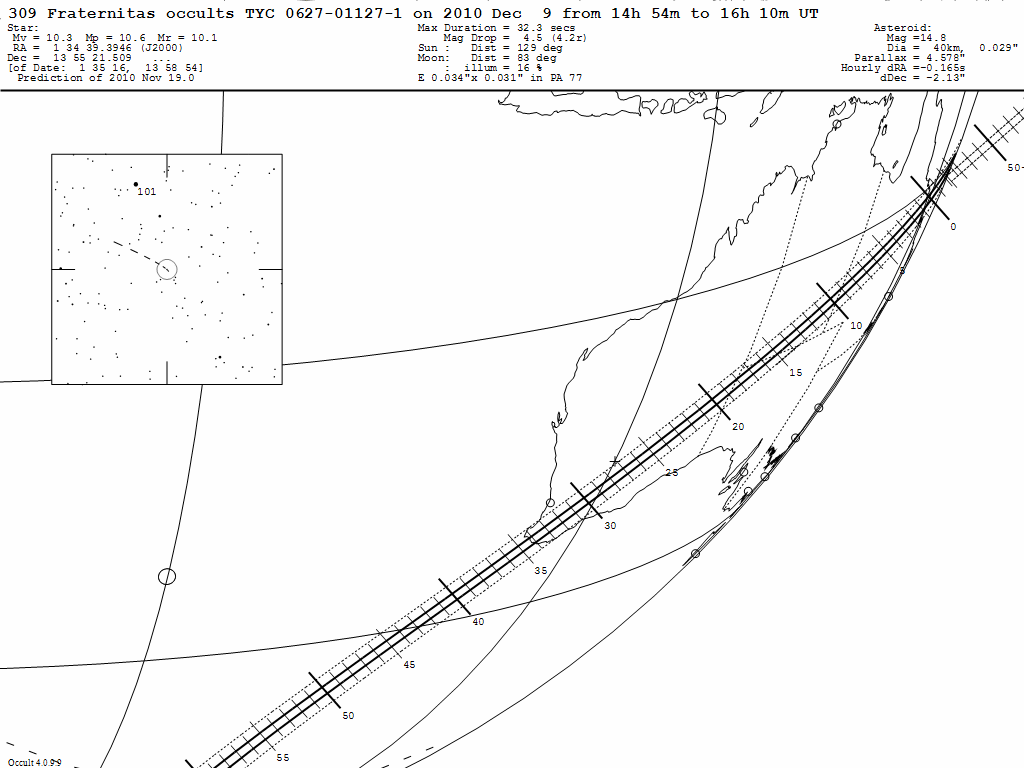

Fraternitas Update Map


On 2010 Dec 09 UT, the 40 km diameter asteroid (309) Fraternitas will occult a 10.3 mag star in the constellation Pisces for observers along a path across Australia from near Cairns in northern Queensland (at leow elevation) to Bridgetown in south-west Western Australia.

In the case of an occultation, the combined light of the asteroid and the star will drop by 4.5 mag to 14.8 mag (the magnitude of the asteroid) for at most 32.3 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                   Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                        Longitude  Longitude  Longitude  Longitude
    112 55 15   -37  0  0   15 38 23    26   314   -29  112 11 53  113 39 17  110 40 20  115 16 51
    114 10  0   -36  0  0   15 36 38    26   313   -31  113 26 12  114 54 31  111 53 50  116 33 15
    115 28 42   -35  0  0   15 34 50    26   312   -32  114 44 21  116 13 47  113 10 55  117 53 58
    116 51 33   -34  0  0   15 32 59    26   311   -33  116  6 32  117 37 22  114 31 47  119 19 20
    118 18 52   -33  0  0   15 31  5    26   310   -34  117 33  1  119  5 35  115 56 42  120 49 43

    119 51  1   -32  0  0   15 29  7    26   308   -35  119  4 10  120 38 48  117 25 55  122 25 36
    121 28 27   -31  0  0   15 27  5    26   307   -36  120 40 24  122 17 33  118 59 50  124  7 36
    123 11 46   -30  0  0   15 24 59    26   306   -37  122 22 14  124  2 28  120 38 52  125 56 31
    125  1 43   -29  0  0   15 22 48    25   304   -38  124 10 23  125 54 24  122 23 36  127 53 26
    126 59 18   -28  0  0   15 20 33    25   303   -39  126  5 43  127 54 27  124 14 44  129 59 50

    129  5 52   -27  0  0   15 18 13    24   302   -40  128  9 28  130  4 12  126 13 15  132 17 52
                                                         Latitude   Latitude   Latitude   Latitude
    130  0  0   -26 35 45   15 17 14    24   301   -41  -26 10  5  -27  1 52  -25 16  4  -27 59 55
    131  0  0   -26  9 50   15 16 10    24   300   -41  -25 44 25  -26 35 42  -24 50 52  -27 33  9
    132  0  0   -25 44 55   15 15  8    23   300   -41  -25 19 43  -26 10 33  -24 26 37  -27  7 27
    133  0  0   -25 20 59   15 14  6    23   299   -42  -24 55 59  -25 46 24  -24  3 17  -26 42 48

    134  0  0   -24 58  3   15 13  6    22   299   -42  -24 33 13  -25 23 16  -23 40 54  -26 19 12
    135  0  0   -24 36  4   15 12  7    22   298   -42  -24 11 25  -25  1  6  -23 19 25  -25 56 38
    136  0  0   -24 15  3   15 11  9    22   297   -43  -23 50 33  -24 39 56  -22 58 52  -25 35  5
    137  0  0   -23 55  0   15 10 13    21   297   -43  -23 30 39  -24 19 44  -22 39 14  -25 14 33
    138  0  0   -23 35 55   15  9 17    21   296   -43  -23 11 40  -24  0 31  -22 20 30  -24 55  2

    139  0  0   -23 17 46   15  8 23    20   296   -43  -22 53 39  -23 42 16  -22  2 42  -24 36 31
    140  0  0   -23  0 36   15  7 31    20   295   -43  -22 36 34  -23 25  0  -21 45 48  -24 19  1
    141  0  0   -22 44 23   15  6 39    19   295   -44  -22 20 25  -23  8 41  -21 29 49  -24  2 31
    142  0  0   -22 29  7   15  5 49    18   294   -44  -22  5 14  -22 53 22  -21 14 46  -23 47  1
    143  0  0   -22 14 50   15  5  1    18   294   -44  -21 51  0  -22 39  1  -21  0 38  -23 32 33

    144  0  0   -22  1 31   15  4 14    17   293   -44  -21 37 43  -22 25 40  -20 47 26  -23 19  6
    145  0  0   -21 49 11   15  3 28    17   293   -44  -21 25 25  -22 13 18  -20 35 11  -23  6 40
    146  0  0   -21 37 50   15  2 44    16   293   -44  -21 14  5  -22  1 57  -20 23 53  -22 55 17
    147  0  0   -21 27 30   15  2  1    15   292   -44  -21  3 44  -21 51 36  -20 13 32  -22 44 56
    148  0  0   -21 18 10   15  1 20    15   292   -44  -20 54 24  -21 42 17  -20  4 10  -22 35 39

    149  0  0   -21  9 52   15  0 41    14   291   -43  -20 46  4  -21 34  1  -19 55 47  -22 27 27
    150  0  0   -21  2 37   15  0  3    13   291   -43  -20 38 46  -21 26 48  -19 48 24  -22 20 21
    151  0  0   -20 56 25   14 59 27    13   291   -43  -20 32 31  -21 20 40  -19 42  2  -22 14 21
    152  0  0   -20 51 18   14 58 52    12   290   -43  -20 27 20  -21 15 38  -19 36 42  -22  9 29
    153  0  0   -20 47 18   14 58 20    11   290   -43  -20 23 15  -21 11 43  -19 32 26  -22  5 47

    154  0  0   -20 44 25   14 57 49    10   289   -42  -20 20 16  -21  8 57  -19 29 14  -22  3 16
    155  0  0   -20 42 42   14 57 20    10   289   -42  -20 18 25  -21  7 21  -19 27  9  -22  1 59
    156  0  0   -20 42 10   14 56 53     9   289   -41  -20 17 44  -21  6 58  -19 26 11  -22  1 56
    157  0  0   -20 42 51   14 56 28     8   288   -41  -20 18 16  -21  7 49  -19 26 23  -22  3 10
    158  0  0   -20 44 47   14 56  5     7   288   -41  -20 20  1  -21  9 56  -19 27 47  -22  5 44

    159  0  0   -20 48  1   14 55 45     7   288   -40  -20 23  3  -21 13 23  -19 30 25  -22  9 41
    160  0  0   -20 52 35   14 55 26     6   287   -40  -20 27 23  -21 18 12  -19 34 18  -22 15  3
    161  0  0   -20 58 33   14 55 11     5   287   -39  -20 33  6  -21 24 25   .. .. ..  -22 21 54
    162  0  0   -21  5 57   14 54 57     4   287   -39  -20 40 13  -21 32  7   .. .. ..  -22 30 17
    163  0  0   -21 14 51   14 54 46     3   286   -38  -20 48 49  -21 41 21   .. .. ..  -22 40 17

    164  0  0   -21 25 20   14 54 38     2   286   -37  -20 58 57  -21 52 11   .. .. ..  -22 51 59
    165  0  0   -21 37 27   14 54 33     1   286   -37  -21 10 41  -22  4 42   .. .. ..  -23  5 28
    166  0  0   -21 51 17   14 54 31     0   285   -36  -21 24  6   .. .. ..   .. .. ..   .. .. ..

Uncertainty in time = +/- 38 secs

Prediction of 2010 Nov 19.0
