OCCULTATION OF UCAC2_14437241 BY 654 Zelinda
2013 May 12


Four positive chords were recorded using video OSD technique.

View the updated prediction.

Observers:
  1    J Talbot,Waikanae Beach, NZ
  2    P Graham,Martinborough,NZ
  3    B Allen,Blenheim, NZ
  4    G McKay,Blenheim, New Zealand
  5(P) Prediction



Zelinda occultation - 2013 May 12

Discussion:

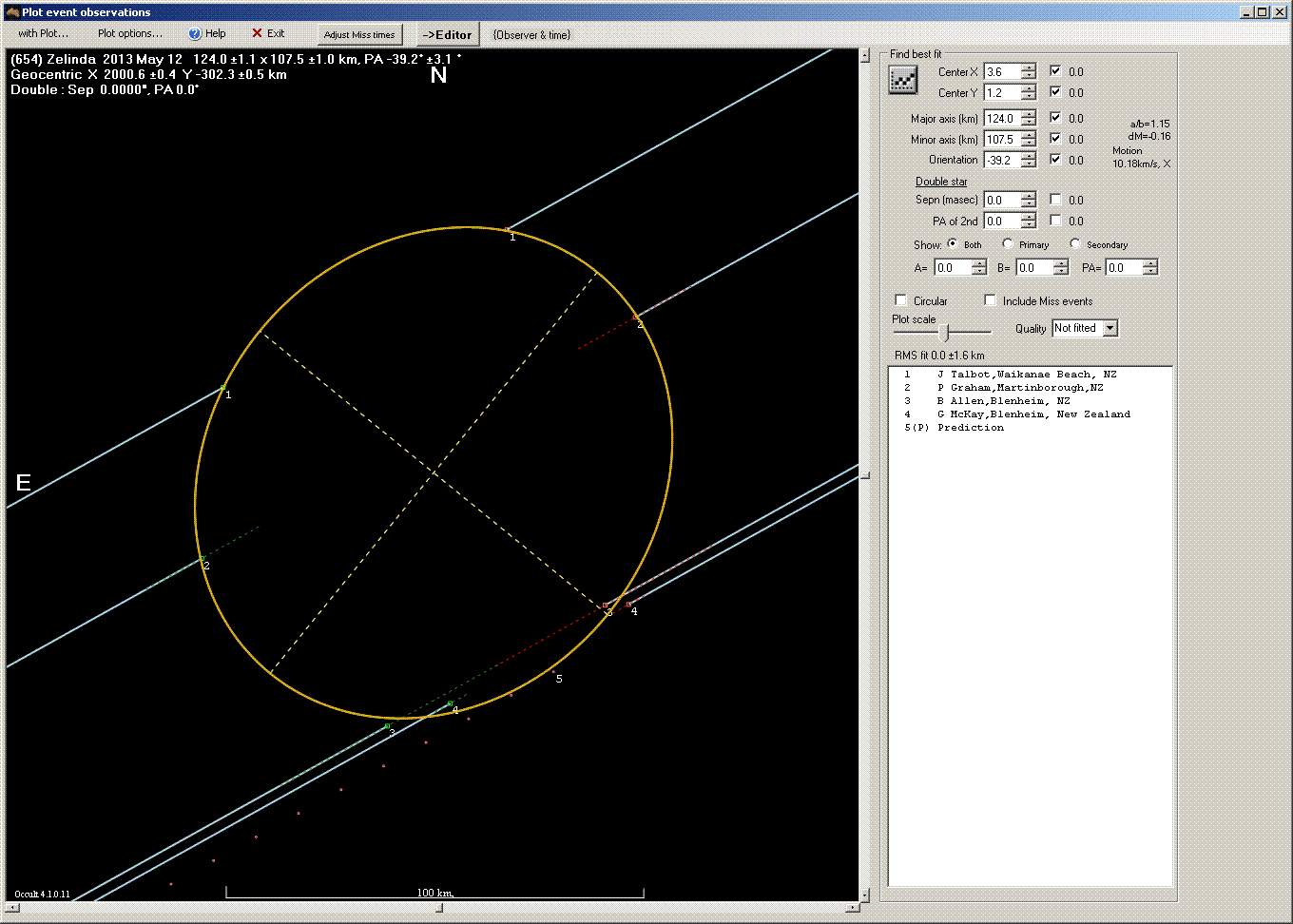

The ellipse above is plotted at the best fit axis ratio as determined by Occult. The area is very close to that of the predicted circle of 123 km diameter. With 4 chords we can be confident of the path of Zelinda and that it was north of the predicted line.

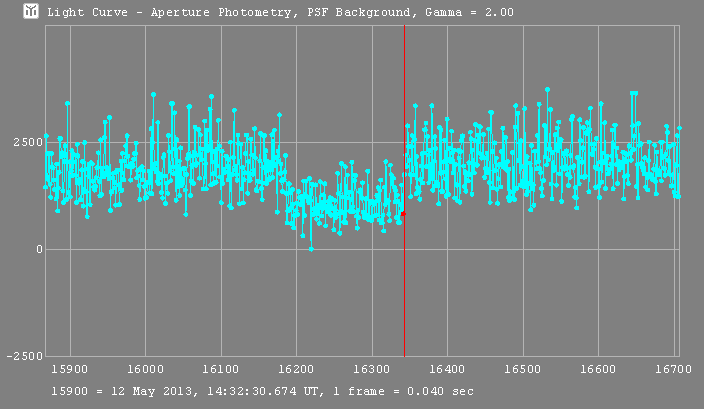

The figure below shows John's Tangra light curve of the occultation.

Zelinda occultation - 2013 May 12

The figure below shows Peter's Tangra light curve of the occultation.

Zelinda occultation - 2013 May 12

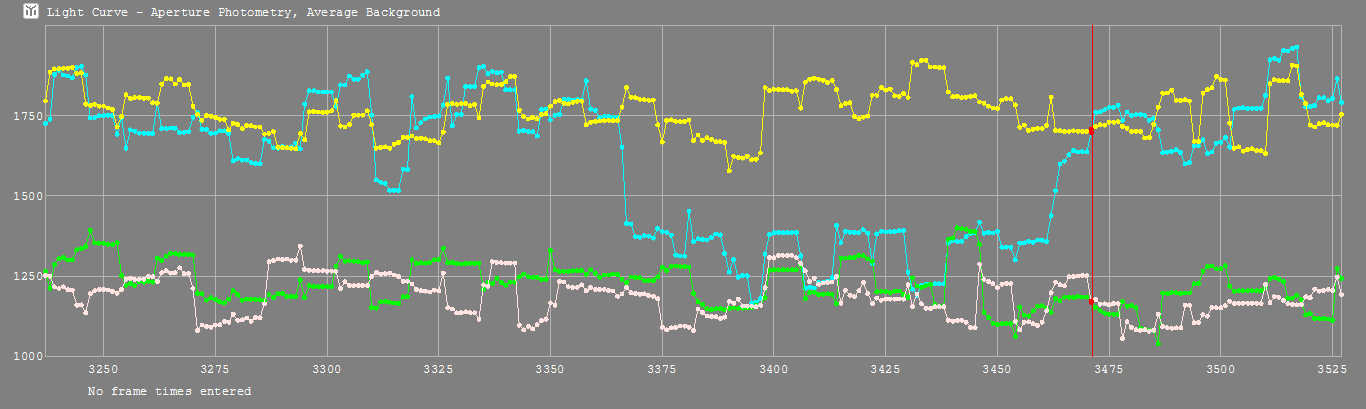

The figure below shows Graeme's Tangra light curve of the occultation.

Zelinda occultation - 2013 May 12

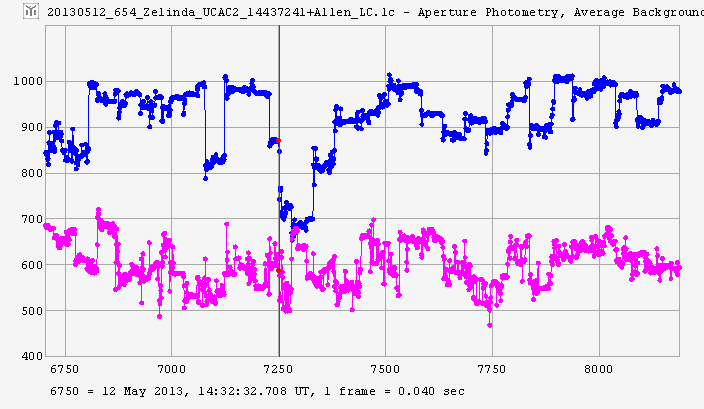

The figure below shows Bill's Tangra light curve of the occultation.

Zelinda occultation - 2013 May 12

Observational Data:

Observation details for MP ( 654 ) Zelinda
By Star              UCAC2 14437241
On 2013-05-12  at 14:32:39.0

_______________________________

Observer   John Talbot
Location   Waikanae Beach, NZ
Longitude  +175:01
Latitude   -40:51
Altitude   5 m
Datum      WGS84
Telescope Newtonian
Aperture   25 cm
Seeing     Slight flickering Clear
Camera Type  KPC-350BH      PAL/CCIR
Camera Delay 0
Timing     GPS - time inserted Video with frame analysis
Disappearance  14:32:41.63
Reappearance   14:32:48.31
Comments: Clear, Calm, on target, Event found on video using Tangra V3 new features.
star and MP visible separately at several points.
My first positive MP in 3 years!
Report prepopulated by IOTA Reporting Add-in for OW ver.1.7

_______________________________

Observer   Peter Graham
Location   Martinborough/ NZ
Longitude  +175:29
Latitude   -41:14
Altitude   73 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   25 cm
Seeing     Steady Clear
Camera Type  WAT120N+       PAL/CCIR
Camera Delay 0.67
Timing     GPS - time inserted Video with frame analysis
Disappearance  14:32:36.35
Reappearance   14:32:46.55
Comments:

_______________________________
Observer   Bill Allen
Location   Blenheim, NZ
Longitude  +173:50
Latitude   -41:29
Altitude   38 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   40 cm
Seeing     Steady Clear
Camera Type  WAT120N+       PAL/CCIR
Camera Delay 1.31
Timing     GPS - time inserted Video with frame analysis
Disappearance  14:32:50.58
Reappearance   14:32:54.64
Comments: Datum NZ1949 (topographical map)

_______________________________


Observer   Graeme McKay
Location   Blenheim, New Zealand
Longitude  +173:57
Latitude   -41:32
Altitude   18 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   28 cm
Seeing     Steady Clear
Camera Type  WAT120N+       PAL/CCIR
Camera Delay 0.19
Timing     GPS - time inserted Video with frame analysis
Disappearance  14:32:48.84
Reappearance   14:32:53.04
Comments:   Report prepopulated by IOTA Reporting Add-in for OW ver.1.7
