ASTROMETRIC UPDATE:
OCCULTATION BY (2505) HEBEI - 2013 JUN 29

[Detailed Finder Charts]


Updated:   2013 Jun 12, 19:11 UT

Event Rank : 22

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

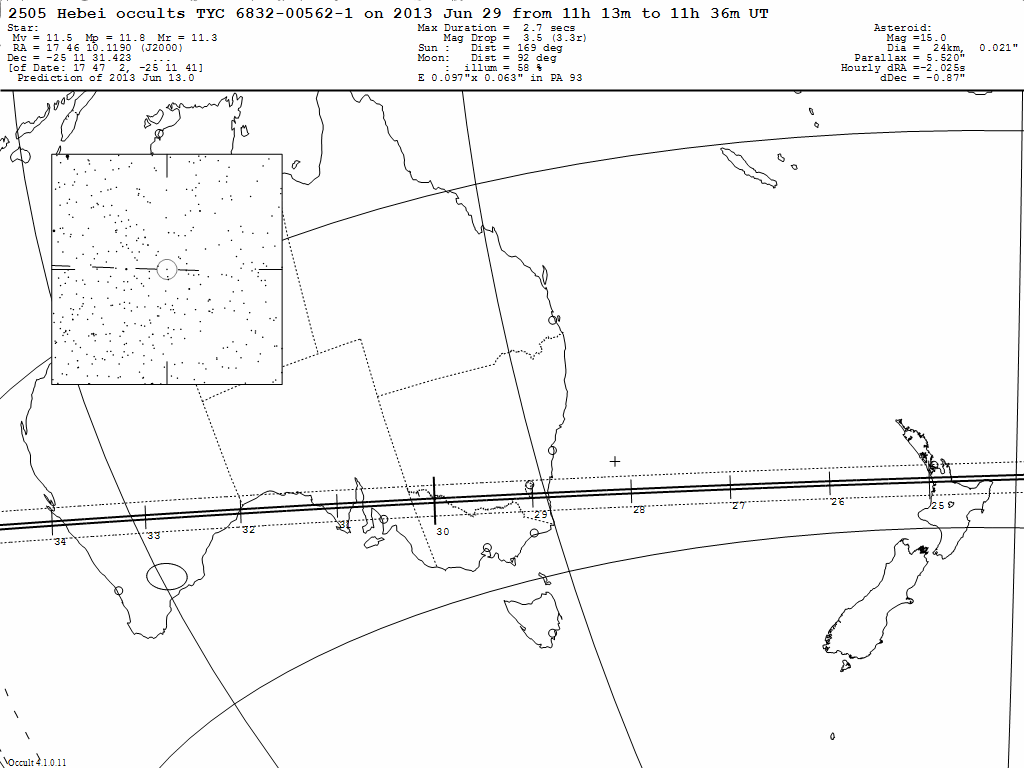

Hebei Update Map


On 2013 Jun 29 UT, the 24 km diameter asteroid (2505) Hebei will occult a 11.5 mag star in the constellation Sagittarius for observers along a path across the North Island of New Zealand, passing near Auckland and across southern New South Wales, passing near Canberra, southern South Australia, passing near Adelaide and across southern West Australia.

In the case of an occultation, the combined light of the asteroid and the star will drop by 3.5 mag to 15.0 mag (the magnitude of the asteroid) for at most 2.7 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
 Occultation of TYC 6832-00562-1 by 2505 Hebei on 2013 Jun 29
                  Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
    112  0  0   -26 42 24   11 34  6    33   104   -23  -26 35 17  -26 49 32  -25 52 11  -27 32 47
    113  0  0   -27  3 27   11 33 59    34   103   -24  -26 56 20  -27 10 34  -26 13 18  -27 53 45
    114  0  0   -27 24 10   11 33 52    35   103   -24  -27 17  4  -27 31 16  -26 34  6  -28 14 23
    115  0  0   -27 44 32   11 33 45    36   102   -25  -27 37 27  -27 51 38  -26 54 34  -28 34 40
    116  0  0   -28  4 35   11 33 38    37   102   -26  -27 57 31  -28 11 40  -27 14 42  -28 54 38

    117  0  0   -28 24 18   11 33 31    38   101   -27  -28 17 14  -28 31 22  -27 34 29  -29 14 15
    118  0  0   -28 43 40   11 33 24    39   101   -28  -28 36 36  -28 50 43  -27 53 56  -29 33 32
    119  0  0   -29  2 41   11 33 16    40   100   -29  -28 55 39  -29  9 44  -28 13  3  -29 52 29
    120  0  0   -29 21 22   11 33  9    41    99   -30  -29 14 20  -29 28 24  -28 31 48  -30 11  5
    121  0  0   -29 39 42   11 33  1    42    99   -31  -29 32 41  -29 46 43  -28 50 13  -30 29 20

    122  0  0   -29 57 41   11 32 53    42    98   -32  -29 50 41  -30  4 42  -29  8 18  -30 47 14
    123  0  0   -30 15 19   11 32 46    43    97   -32  -30  8 20  -30 22 19  -29 26  1  -31  4 47
    124  0  0   -30 32 37   11 32 38    44    97   -33  -30 25 38  -30 39 36  -29 43 23  -31 21 59
    125  0  0   -30 49 33   11 32 30    45    96   -34  -30 42 35  -30 56 31  -30  0 25  -31 38 51
    126  0  0   -31  6  8   11 32 22    46    95   -35  -30 59 11  -31 13  6  -30 17  5  -31 55 21

    127  0  0   -31 22 22   11 32 14    47    95   -36  -31 15 26  -31 29 19  -30 33 24  -32 11 30
    128  0  0   -31 38 15   11 32  6    48    94   -37  -31 31 19  -31 45 12  -30 49 21  -32 27 18
    129  0  0   -31 53 47   11 31 57    48    93   -38  -31 46 52  -32  0 43  -31  4 58  -32 42 45
    130  0  0   -32  8 58   11 31 49    49    93   -38  -32  2  3  -32 15 52  -31 20 13  -32 57 51
    131  0  0   -32 23 47   11 31 41    50    92   -39  -32 16 53  -32 30 41  -31 35  7  -33 12 35

    132  0  0   -32 38 15   11 31 32    51    91   -40  -32 31 21  -32 45  8  -31 49 40  -33 26 58
    133  0  0   -32 52 22   11 31 24    52    90   -41  -32 45 29  -32 59 14  -32  3 51  -33 41  1
    134  0  0   -33  6  7   11 31 15    52    89   -42  -32 59 15  -33 12 59  -32 17 41  -33 54 42
    135  0  0   -33 19 31   11 31  6    53    89   -43  -33 12 40  -33 26 23  -32 31 10  -34  8  1
    136  0  0   -33 32 34   11 30 58    54    88   -43  -33 25 44  -33 39 25  -32 44 18  -34 21  0

    137  0  0   -33 45 16   11 30 49    55    87   -44  -33 38 26  -33 52  7  -32 57  4  -34 33 38
    138  0  0   -33 57 37   11 30 40    56    86   -45  -33 50 47  -34  4 27  -33  9 29  -34 45 54
    139  0  0   -34  9 37   11 30 31    56    85   -46  -34  2 48  -34 16 26  -33 21 32  -34 57 49
    140  0  0   -34 21 15   11 30 23    57    84   -47  -34 14 26  -34 28  4  -33 33 15  -35  9 24
    141  0  0   -34 32 32   11 30 14    58    83   -47  -34 25 44  -34 39 20  -33 44 36  -35 20 37

    142  0  0   -34 43 28   11 30  5    59    82   -48  -34 36 41  -34 50 16  -33 55 36  -35 31 29
    143  0  0   -34 54  4   11 29 56    59    81   -49  -34 47 17  -35  0 51  -34  6 15  -35 42  0
    144  0  0   -35  4 18   11 29 47    60    80   -50  -34 57 31  -35 11  4  -34 16 33  -35 52 11
    145  0  0   -35 14 11   11 29 38    61    79   -50  -35  7 25  -35 20 57  -34 26 30  -36  2  0
    146  0  0   -35 23 43   11 29 29    62    78   -51  -35 16 58  -35 30 29  -34 36  6  -36 11 29

    147  0  0   -35 32 55   11 29 19    62    77   -52  -35 26 10  -35 39 39  -34 45 20  -36 20 37
    148  0  0   -35 41 45   11 29 10    63    75   -53  -35 35  1  -35 48 30  -34 54 14  -36 29 24
    149  0  0   -35 50 15   11 29  1    64    74   -54  -35 43 31  -35 56 59  -35  2 47  -36 37 51
    150  0  0   -35 58 24   11 28 52    65    73   -54  -35 51 40  -36  5  7  -35 10 59  -36 45 57
    151  0  0   -36  6 12   11 28 43    65    71   -55  -35 59 29  -36 12 55  -35 18 50  -36 53 42

    152  0  0   -36 13 39   11 28 33    66    70   -56  -36  6 57  -36 20 22  -35 26 20  -37  1  6
    153  0  0   -36 20 46   11 28 24    67    69   -56  -36 14  4  -36 27 29  -35 33 30  -37  8 11
    154  0  0   -36 27 32   11 28 15    67    67   -57  -36 20 51  -36 34 14  -35 40 19  -37 14 54
    155  0  0   -36 33 58   11 28  6    68    65   -58  -36 27 17  -36 40 40  -35 46 47  -37 21 17
    156  0  0   -36 40  3   11 27 56    69    64   -59  -36 33 22  -36 46 44  -35 52 54  -37 27 20

    157  0  0   -36 45 48   11 27 47    69    62   -59  -36 39  7  -36 52 29  -35 58 41  -37 33  2
    158  0  0   -36 51 12   11 27 37    70    60   -60  -36 44 31  -36 57 53  -36  4  8  -37 38 24
    159  0  0   -36 56 16   11 27 28    70    58   -61  -36 49 35  -37  2 56  -36  9 13  -37 43 26
    160  0  0   -37  0 59   11 27 19    71    57   -61  -36 54 19  -37  7 39  -36 13 58  -37 48  7
    161  0  0   -37  5 22   11 27  9    72    54   -62  -36 58 42  -37 12  2  -36 18 23  -37 52 29

    162  0  0   -37  9 24   11 27  0    72    52   -63  -37  2 45  -37 16  4  -36 22 27  -37 56 30
    163  0  0   -37 13  7   11 26 50    73    50   -63  -37  6 27  -37 19 46  -36 26 11  -38  0 10
    164  0  0   -37 16 29   11 26 41    73    48   -64  -37  9 50  -37 23  8  -36 29 34  -38  3 31
    165  0  0   -37 19 31   11 26 31    74    45   -65  -37 12 52  -37 26 10  -36 32 37  -38  6 32
    166  0  0   -37 22 12   11 26 22    74    42   -65  -37 15 33  -37 28 51  -36 35 20  -38  9 12

    167  0  0   -37 24 33   11 26 12    75    40   -66  -37 17 55  -37 31 12  -36 37 42  -38 11 33
    168  0  0   -37 26 34   11 26  3    75    37   -67  -37 19 56  -37 33 13  -36 39 44  -38 13 33
    169  0  0   -37 28 15   11 25 53    76    34   -67  -37 21 37  -37 34 54  -36 41 26  -38 15 13
    170  0  0   -37 29 36   11 25 44    76    30   -68  -37 22 58  -37 36 15  -36 42 47  -38 16 33
    171  0  0   -37 30 37   11 25 34    76    27   -69  -37 23 58  -37 37 15  -36 43 48  -38 17 33

    172  0  0   -37 31 17   11 25 25    77    23   -69  -37 24 39  -37 37 56  -36 44 29  -38 18 14
    173  0  0   -37 31 38   11 25 15    77    20   -70  -37 24 59  -37 38 16  -36 44 49  -38 18 34
    174  0  0   -37 31 38   11 25  5    77    16   -70  -37 24 59  -37 38 16  -36 44 49  -38 18 34
    175  0  0   -37 31 18   11 24 56    77    12   -71  -37 24 39  -37 37 56  -36 44 29  -38 18 14
    176  0  0   -37 30 38   11 24 46    77     8   -71  -37 23 59  -37 37 16  -36 43 49  -38 17 34

    177  0  0   -37 29 37   11 24 37    78     4   -72  -37 22 59  -37 36 16  -36 42 48  -38 16 35
    178  0  0   -37 28 17   11 24 27    78   360   -72  -37 21 39  -37 34 56  -36 41 27  -38 15 15
    179  0  0   -37 26 37   11 24 17    78   356   -73  -37 19 58  -37 33 15  -36 39 46  -38 13 35
Uncertainty in time = +/- 13 secs

Prediction of 2013 Jun 13.0
