OCCULTATION OF TYC8359-00443-1 BY 912 Maritima
2014 July 10


A 5.7 second occultation was recorded by John Broughton, using video OSD technique.

Two clearly observed misses were recorded for this event.

View the updated prediction.

Observers:
  1(M) P Anderson,The Gap, Brisbane, QLD,AU
  2    J Broughton,Reedy Creek, QLD, AU
  3(M) W Hanna,Alice Springs, Australia
  4(P) Prediction, 22 June



Maritima occultation__ 2014 July 10

Discussion:

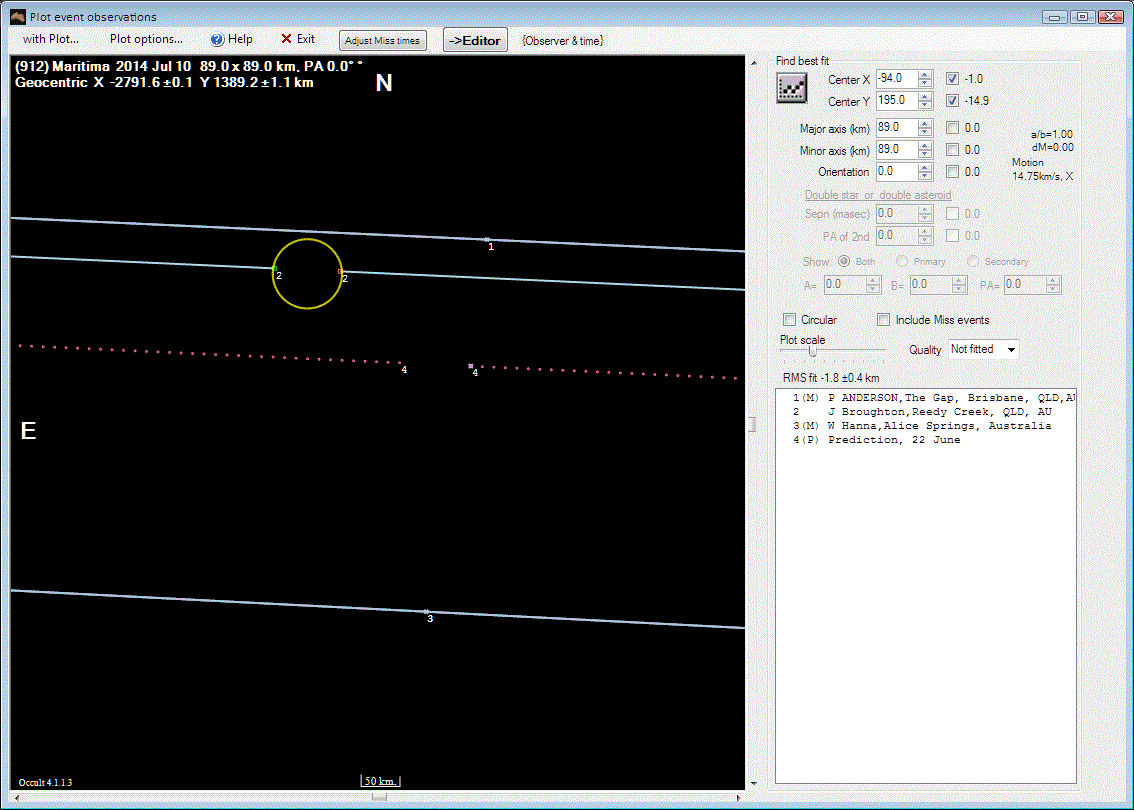

The circle above is plotted at the expected 90 km diameter of Maritima. With only one chord it is not possible to determine whether John was north or south of the central line of the event. However, assuming the updated prediction was approximately correct the close to expected chord of about 89km would suggest that the chord might lie close to the central portion of the asteroid.

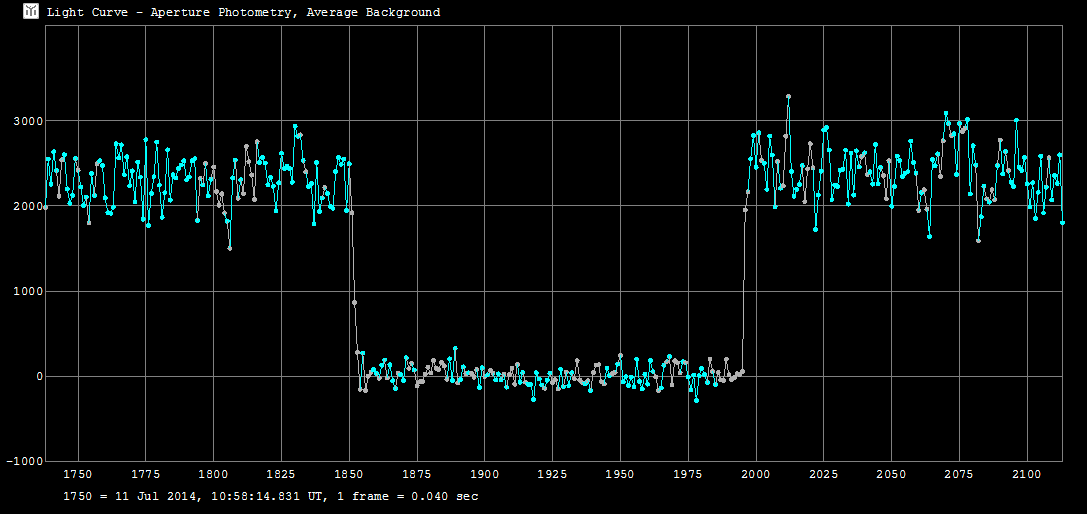

The figure below shows the Tangra light curve of the occultation.

Maritima occultation__ 2014 July 10

Observational Data:


Observation details for MP ( 912 ) Maritima
By Star              TYC 8359-00443-1
On 2014-07-10  at 10:58:10.0

_______________________________

Observer   John Broughton
Location   Reedy Creek, QLD, AU
Longitude  +153:23
Latitude   -28:06
Altitude   66 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   25 cm
Seeing     Steady Clear
Camera Type  WAT120N+       PAL/CCIR
Camera Delay -0.05
Timing     GPS - time inserted Video with frame analysis
Disappearance  10:58:18.91
Reappearance   10:58:24.65
Comments:

_______________________________

Observer   Peter Anderson
Location   The Gap, Brisbane, QLD,AU
Longitude  +152:55
Latitude   -27:27
Altitude   171 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   28 cm
Seeing     Steady Clear
Camera Type  Visual         Other
Camera Delay 0.5
Timing     Stopwatch Visual, PE applied

Missed

Comments: Finder chart again hopeless. I monitored the field and there were no events.
I wasn't too fussed because I was towards the limit of the possible track.
Unless reasonable finder charts can come with the predictions,
I am considering giving the game away.
[I have recommended the use of OW-C2A prepoint link as a way of getting user
friendly charts - JT]
_______________________________

Observer   William Hanna
Location   Alice Springs, Australia
Longitude  +133:53
Latitude   -23:42
Altitude   584 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   20 cm
Seeing     Steady Clear
Camera Type  Grasshopper Express with ADVS              ADVS
Camera Delay 0
Timing     GPS - time inserted Video with frame analysis

Missed

Comments: Gamma 1.0, gain 29dB Calm, 11C
