OCCULTATION OF UCAC4_392-069036 BY 392 Tercidina
2015 June 04


A Two chords were recorded by John Broughton, using vide OSD technique.

One clearly observed miss was recorded for this event.

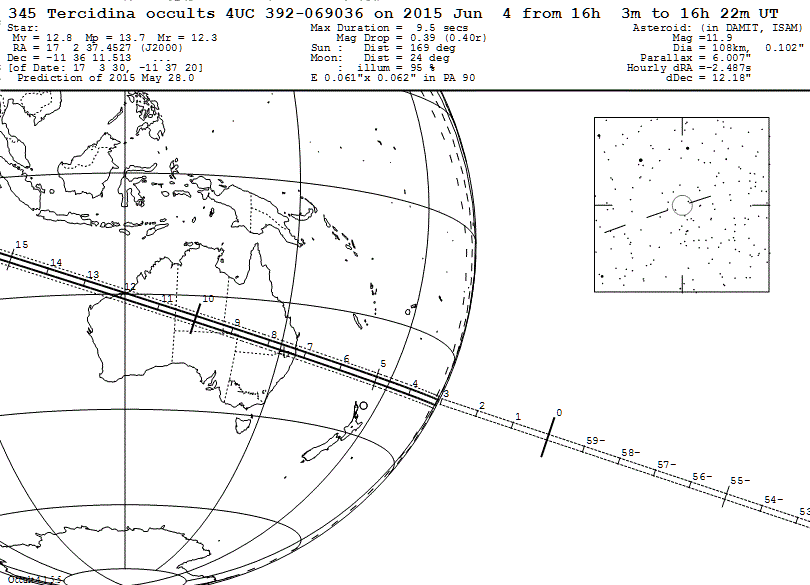

View the updated prediction.

Observers:
  1(M) J Bradshaw,ord Valley, Qld, Australia
  2    J Broughton,Reedy Creek, QLD, AU
  3    J Broughton,Condong, NSW, AU
  4(P) Prediction, TT14,  May 28




Tercidina occultation__ 2015 June 04

Discussion:

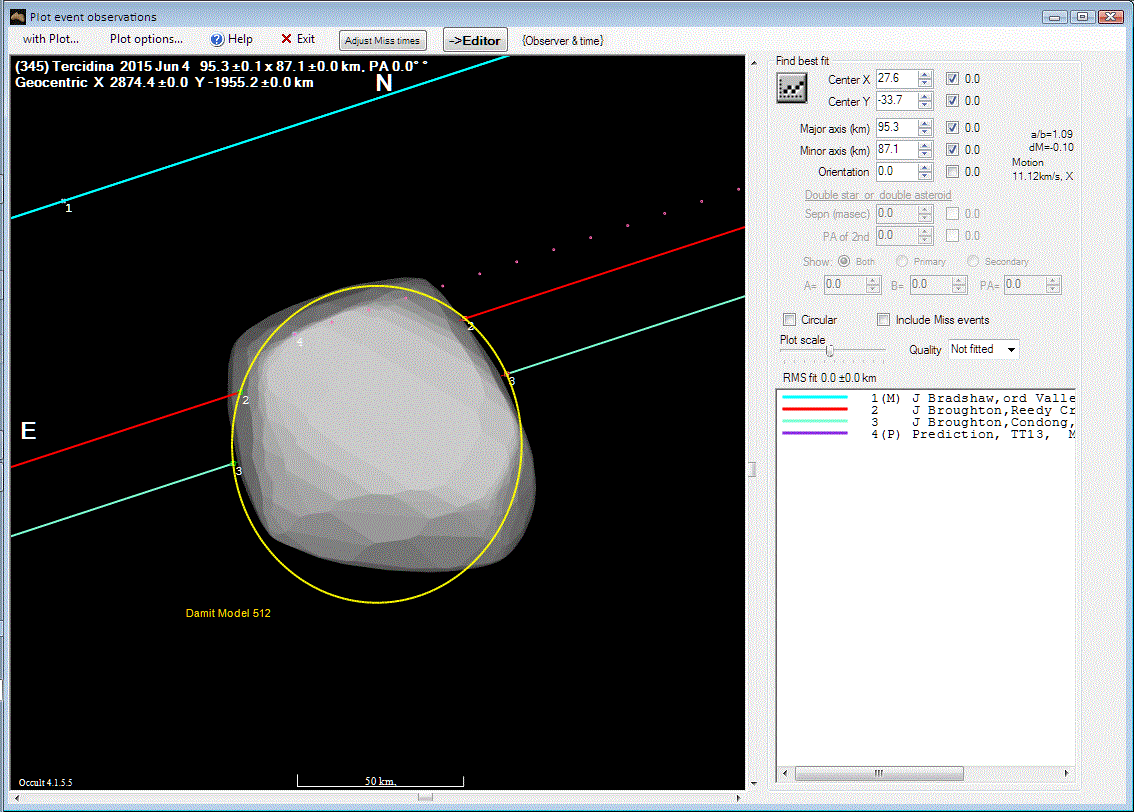

The ellipse above is plotted at the best fit axis ratio as determined by Occult. With 2 chords we can be confident of the path of Tercidina and that it was south of the predicted line. The Damit 3D model has been overlaid on the measured ellipse and shows reasonable fit. Another chord further south might have improved that.

The figure below shows the Tangra light curve of John's occultations.

Tercidina occultation__ 2015 June 04

Tercidina occultation__ 2015 June 04

Observational Data:


Observation details for MP ( 345 ) Tercidina
By Star              UCAC4 392-069036
On 2015-06-04  at 16:07:19.0

_______________________________

Observer   Jonathan Bradshaw
Location   Samford Valley, Qld, Australia
Longitude  +152:50
Latitude   -27:22
Altitude   80 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   36 cm
Seeing     Steady Clear
Camera Type  G-Star         PAL/CCIR
Camera Delay
Timing     GPS - time inserted Video with frame analysis

Missed

Comments:   Report prepopulated by IOTA Reporting Add-in for OW ver.1.8

_______________________________

Observer   John Broughton
Location   Reedy Creek, QLD, AU
Longitude  +153:23
Latitude   -28:06
Altitude   66 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   25 cm
Seeing     Steady Clear
Camera Type  WAT120N+       PAL/CCIR
Camera Delay
Timing     GPS - time inserted Video with frame analysis
Disappearance  16:07:05.81
Reappearance   16:07:11.89
Comments:

_______________________________

Observer   John Broughton
Location   Condong, NSW, AU
Longitude  +153:27
Latitude   -28:17
Altitude   7 m
Datum      WGS84
Telescope Newtonian
Aperture   32 cm
Seeing     Steady Clear
Camera Type  WAT120N+       PAL/CCIR
Camera Delay
Timing     GPS - other linking Video with frame analysis
Disappearance  16:07:04.77
Reappearance   16:07:12.17
Comments:
