ASTROMETRIC UPDATE:
OCCULTATION BY (336) LACADIERA - 2016 Sep 20

[Detailed Finder Charts]


Updated:   2016 AUG 09, 01:06 UT

Event Rank : 55

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

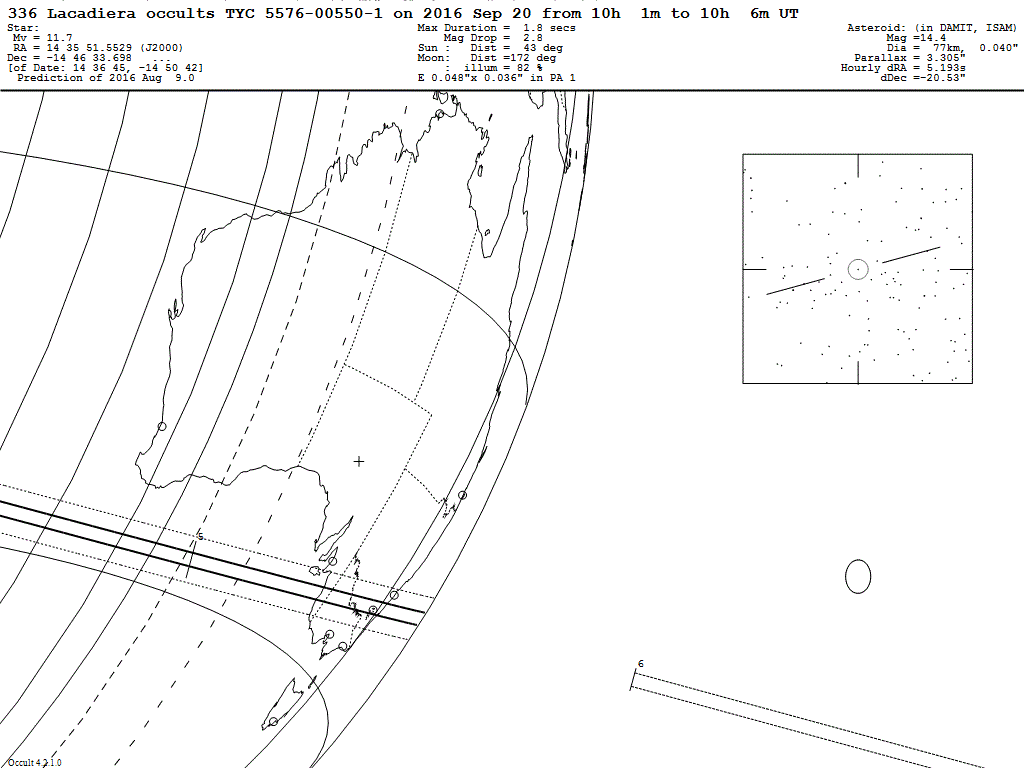

Lacadiera Update Map


On 2016 Sep 20 UT, the 77 km diameter asteroid (336) Lacadiera will occult a 11.7 mag star in the constellation Libra for observers along a path of some uncertainty across south-eastern Australia, from Nowra across south-eastern New South Wales, north-western Victoria and south-eastern South Australia to Keith. The path includes Canberra, and Sydney is within the one sigma limit.

In the case of an occultation, the combined light of the asteroid and the star will drop by 2.79 mag to 14.40 mag (the magnitude of the asteroid) for at most 1.8 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Hugh Harris, astrometry for the asteroid kindly provided by Bill Owen, astrometry for the asteroid kindly provided by the IAU Minor Planet Center.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                   Centre              Star  Star   Sun      Path Limits           Error Limits       Alt
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4   Crn
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
     99  0  0   -37 30 43   10  4 21    55   301    14  -37 52 37  -37  8 51  -38 44 30  -36 17 24   0.30
    100  0  0   -37 35 38   10  4 23    54   300    13  -37 57 32  -37 13 47  -38 49 22  -36 22 22   0.30
    101  0  0   -37 40 15   10  4 25    53   299    12  -38  2  8  -37 18 25  -38 53 56  -36 27  2   0.30
    102  0  0   -37 44 32   10  4 26    52   298    11  -38  6 24  -37 22 43  -38 58 11  -36 31 22   0.30
    103  0  0   -37 48 31   10  4 28    52   297    11  -38 10 22  -37 26 42  -39  2  7  -36 35 23   0.30

    104  0  0   -37 52 10   10  4 30    51   296    10  -38 14  1  -37 30 22  -39  5 44  -36 39  4   0.30
    105  0  0   -37 55 30   10  4 32    50   295     9  -38 17 20  -37 33 43  -39  9  2  -36 42 27   0.30
    106  0  0   -37 58 32   10  4 33    50   294     8  -38 20 21  -37 36 45  -39 12  2  -36 45 30   0.30
    107  0  0   -38  1 14   10  4 35    49   293     7  -38 23  3  -37 39 27  -39 14 42  -36 48 13   0.30
    108  0  0   -38  3 37   10  4 37    48   292     7  -38 25 26  -37 41 51  -39 17  4  -36 50 38   0.30

    109  0  0   -38  5 41   10  4 38    47   291     6  -38 27 29  -37 43 56  -39 19  7  -36 52 44   0.30
    110  0  0   -38  7 26   10  4 40    47   291     5  -38 29 14  -37 45 41  -39 20 51  -36 54 30   0.30
    111  0  0   -38  8 53   10  4 41    46   290     4  -38 30 40  -37 47  8  -39 22 16  -36 55 57   0.30
    112  0  0   -38 10  0   10  4 43    45   289     4  -38 31 47  -37 48 15  -39 23 23  -36 57  5   0.30
    113  0  0   -38 10 48   10  4 45    44   288     3  -38 32 35  -37 49  3  -39 24 11  -36 57 53   0.31

    114  0  0   -38 11 17   10  4 46    44   287     2  -38 33  5  -37 49 33  -39 24 40  -36 58 23   0.31
    115  0  0   -38 11 28   10  4 48    43   286     1  -38 33 15  -37 49 43  -39 24 50  -36 58 33   0.31
    116  0  0   -38 11 19   10  4 49    42   285     0  -38 33  6  -37 49 34  -39 24 41  -36 58 24   0.31
    117  0  0   -38 10 52   10  4 51    41   285     0  -38 32 39  -37 49  7  -39 24 14  -36 57 57   0.31
    118  0  0   -38 10  5   10  4 52    40   284    -1  -38 31 52  -37 48 20  -39 23 28  -36 57  9   0.31

    119  0  0   -38  8 59   10  4 53    40   283    -2  -38 30 47  -37 47 14  -39 22 23  -36 56  3   0.31
    120  0  0   -38  7 35   10  4 55    39   282    -3  -38 29 23  -37 45 50  -39 21  0  -36 54 38   0.31
    121  0  0   -38  5 52   10  4 56    38   282    -4  -38 27 40  -37 44  6  -39 19 18  -36 52 53   0.31
    122  0  0   -38  3 49   10  4 58    37   281    -4  -38 25 38  -37 42  3  -39 17 17  -36 50 50   0.31
    123  0  0   -38  1 28   10  4 59    37   280    -5  -38 23 17  -37 39 41  -39 14 57  -36 48 27   0.31

    124  0  0   -37 58 48   10  5  0    36   279    -6  -38 20 38  -37 37  1  -39 12 19  -36 45 45   0.31
    125  0  0   -37 55 49   10  5  1    35   279    -7  -38 17 39  -37 34  1  -39  9 21  -36 42 44   0.31
    126  0  0   -37 52 31   10  5  3    34   278    -8  -38 14 22  -37 30 42  -39  6  6  -36 39 24   0.31
    127  0  0   -37 48 54   10  5  4    34   277    -8  -38 10 45  -37 27  5  -39  2 31  -36 35 45   0.31
    128  0  0   -37 44 58   10  5  5    33   276    -9  -38  6 50  -37 23  8  -38 58 37  -36 31 46   0.31

    129  0  0   -37 40 43   10  5  6    32   276   -10  -38  2 36  -37 18 52  -38 54 25  -36 27 29   0.31
    130  0  0   -37 36  9   10  5  8    31   275   -11  -37 58  3  -37 14 18  -38 49 54  -36 22 52   0.31
    131  0  0   -37 31 16   10  5  9    30   274   -12  -37 53 11  -37  9 24  -38 45  5  -36 17 56   0.31
    132  0  0   -37 26  5   10  5 10    30   274   -12  -37 48  1  -37  4 11  -38 39 56  -36 12 42   0.31
    133  0  0   -37 20 34   10  5 11    29   273   -13  -37 42 31  -36 58 40  -38 34 29  -36  7  8   0.31

    134  0  0   -37 14 45   10  5 12    28   272   -14  -37 36 42  -36 52 49  -38 28 43  -36  1 15   0.31
    135  0  0   -37  8 36   10  5 13    27   272   -15  -37 30 35  -36 46 40  -38 22 38  -35 55  2   0.31
    136  0  0   -37  2  9   10  5 14    26   271   -16  -37 24  9  -36 40 11  -38 16 15  -35 48 31   0.31
    137  0  0   -36 55 22   10  5 15    26   270   -16  -37 17 23  -36 33 23  -38  9 32  -35 41 41   0.31
    138  0  0   -36 48 17   10  5 16    25   270   -17  -37 10 19  -36 26 17  -38  2 31  -35 34 31   0.31

    139  0  0   -36 40 53   10  5 17    24   269   -18  -37  2 56  -36 18 51  -37 55 11  -35 27  3   0.31
    140  0  0   -36 33  9   10  5 18    23   268   -19  -36 55 15  -36 11  7  -37 47 33  -35 19 15   0.31
    141  0  0   -36 25  7   10  5 19    22   268   -20  -36 47 14  -36  3  3  -37 39 35  -35 11  8   0.31
    142  0  0   -36 16 46   10  5 20    22   267   -20  -36 38 54  -35 54 41  -37 31 19  -35  2 43   0.31
    143  0  0   -36  8  6   10  5 20    21   266   -21  -36 30 16  -35 45 59  -37 22 44  -34 53 58   0.31

    144  0  0   -35 59  8   10  5 21    20   266   -22  -36 21 19  -35 36 59  -37 13 50  -34 44 54   0.31
    145  0  0   -35 49 50   10  5 22    19   265   -23  -36 12  3  -35 27 40  -37  4 38  -34 35 31   0.31
    146  0  0   -35 40 14   10  5 23    18   265   -24  -36  2 28  -35 18  2  -36 55  7  -34 25 50   0.31
    147  0  0   -35 30 18   10  5 23    17   264   -25  -35 52 34  -35  8  5  -36 45 17  -34 15 49   0.32
    148  0  0   -35 20  4   10  5 24    17   263   -25  -35 42 22  -34 57 50  -36 35  9  -34  5 30   0.32

    149  0  0   -35  9 32   10  5 25    16   263   -26  -35 31 51  -34 47 15  -36 24 42  -33 54 52   0.32
    150  0  0   -34 58 40   10  5 25    15   262   -27  -35 21  1  -34 36 22  -36 13 56  -33 43 54   0.32
    151  0  0   -34 47 30   10  5 26    14   262   -28  -35  9 53  -34 25 10  -36  2 52  -33 32 39   0.32
    152  0  0   -34 36  1   10  5 26    13   261   -29  -34 58 26  -34 13 40  -35 51 29  -33 21  4   0.32
    153  0  0   -34 24 14   10  5 27    12   260   -30  -34 46 40  -34  1 51  -35 39 48  -33  9 11   0.32

    154  0  0   -34 12  8   10  5 28    12   260   -30  -34 34 36  -33 49 43  -35 27 48  -32 56 59   0.32
    155  0  0   -33 59 44   10  5 28    11   259   -31  -34 22 14  -33 37 17  -35 15 30  -32 44 29   0.33
    156  0  0   -33 47  1   10  5 28    10   259   -32  -34  9 33  -33 24 33  -35  2 53  -32 31 40   0.33
    157  0  0   -33 34  0   10  5 29     9   258   -33  -33 56 34  -33 11 30  -34 49 59  -32 18 33   0.33
    158  0  0   -33 20 41   10  5 29     8   258   -34  -33 43 16  -32 58  9  -34 36 46  -32  5  8   0.33

    159  0  0   -33  7  4   10  5 29     7   257   -35  -33 29 41  -32 44 30  -34 23 15  -31 51 24   0.34
    160  0  0   -32 53  9   10  5 30     6   256   -36  -33 15 48  -32 30 33  -34  9 26  -31 37 23   0.34
    161  0  0   -32 38 55   10  5 30     6   256   -36  -33  1 36  -32 16 18  -33 55 19  -31 23  3   0.35
    162  0  0   -32 24 24   10  5 30     5   255   -37  -32 47  7  -32  1 45  -33 40 54  -31  8 26   0.36
    163  0  0   -32  9 36   10  5 30     4   255   -38  -32 32 20  -31 46 54  -33 26 12  -30 53 31   0.37

    164  0  0   -31 54 29   10  5 31     3   254   -39  -32 17 16  -31 31 46  -33 11 12  -30 38 18   0.39
    165  0  0   -31 39  5   10  5 31     2   254   -40  -32  1 54  -31 16 20  -32 55 54  -30 22 48   0.43
    166  0  0   -31 23 24   10  5 31     1   253   -41  -31 46 14  -31  0 37  -32 40 20  -30  7  1   0.53
    167  0  0   -31  7 26   10  5 31     0   253   -42  -31 30 18  -30 44 37  -32 24 28   .. .. ..   1.63

Uncertainty in time = +/- 2 secs

Prediction of 2016 Aug  9.0
