OCCULTATION OF UCAC4 334-126500 BY 983 Gunila
20170418


A 15 second occultation was recorded by Dave Herald, using an SCT Telescope and Watec 910BD camera.

An 8 second occultation was recorded by John Newman, using an SCT Telescope and Watec 910BD camera.

One miss was recorded for this event.

View the IOTA update.

Observers:
  1(M) D Hooper, Melbourne, Victoria, Australia
  2    J Newman, Canberra, Australian Capital Territory, Australia
  3    D Herald, Murrumbateman, New South Wales, Australia
  4(P) Prediction- IOTA Feed







Gunila occultation__ 20170418

Discussion:

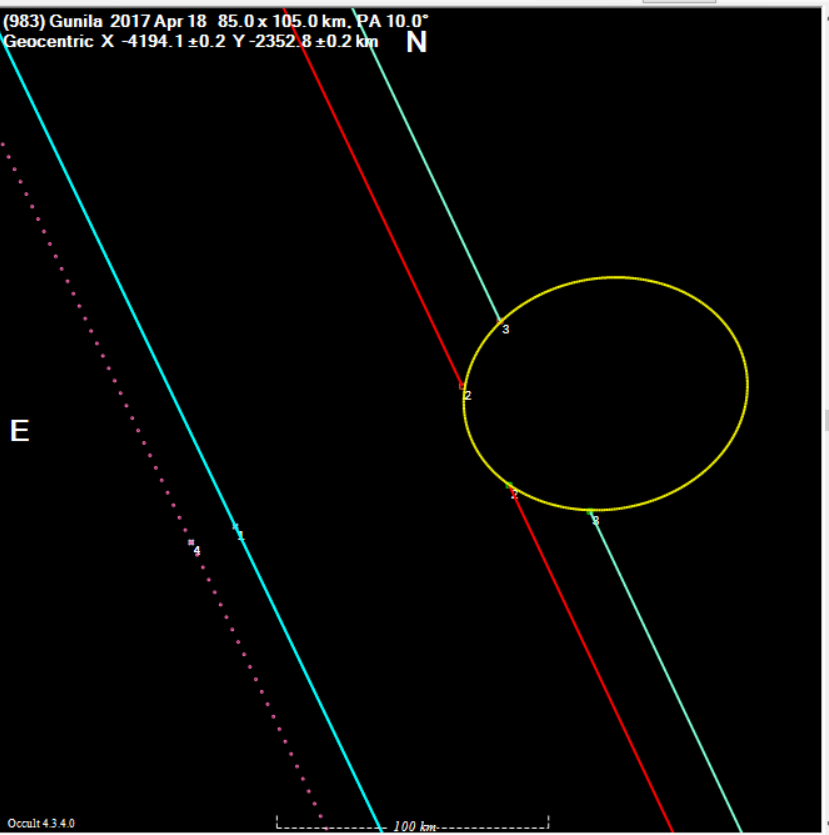

The ellipse above is plotted at the expected diameters of Gunila. The ellipse has been plotted to fit the observed chords. The centre line of the event is clearly to the west of the predicted path.

The figures below show the Tangra light curve of the occultation.

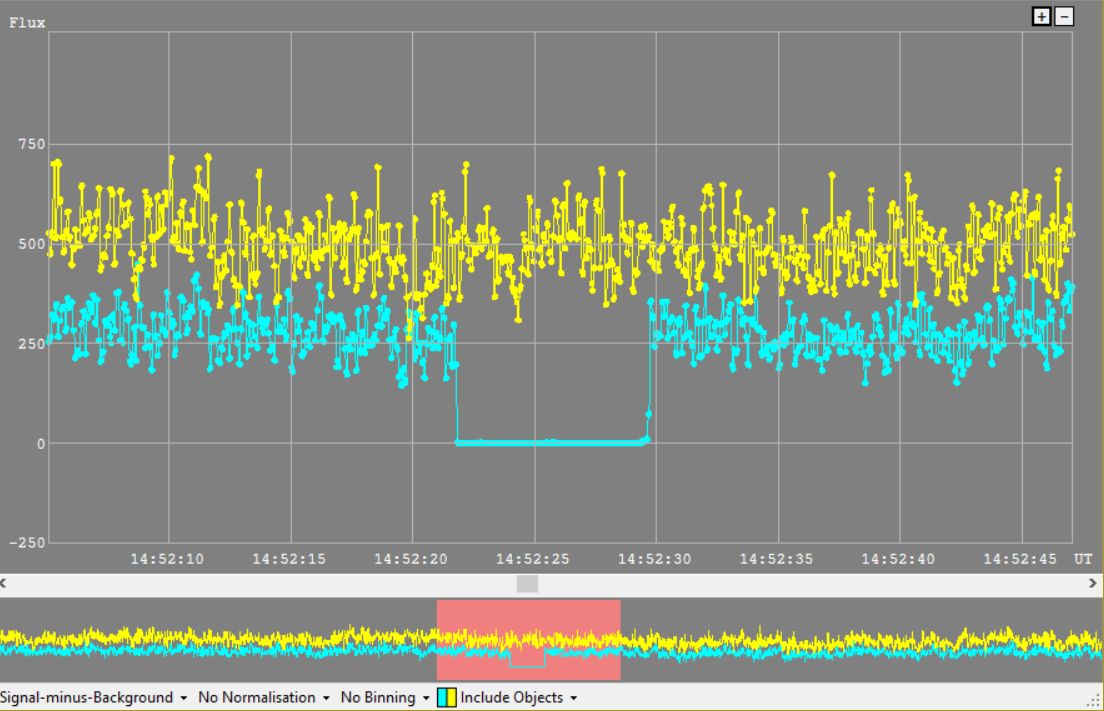

Newman:

Gunila  occultation__ 20170418

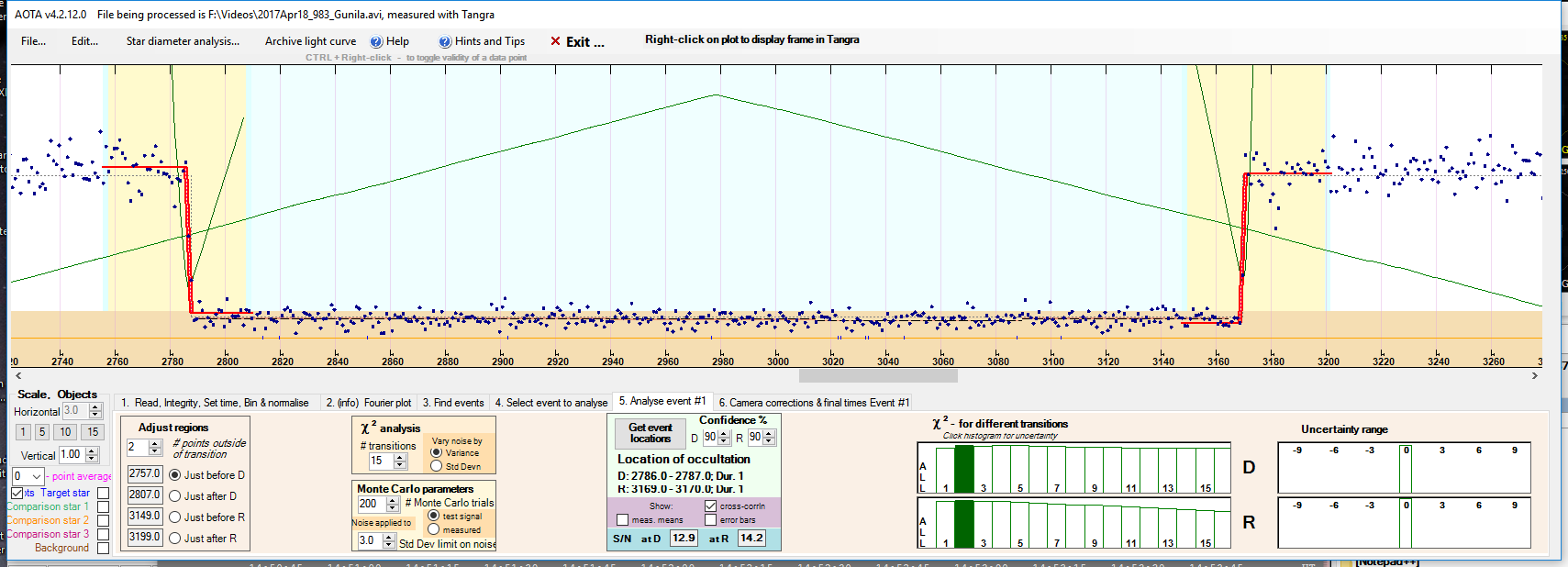

Hherald:

Gunila  occultation__ 20170418

Observational Data:

Observation details for MP ( 983 ) Gunila
By Star              UCAC4 334-126500
On 2017-04-18  at 14:51:09.0

_______________________________

Observer   Dean Hooper
Location   Melbourne, VIC, Australia
Longitude  +145:05
Latitude   -37:59
Altitude   10 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   28 cm
Seeing     Slight flickering Clear Nearby quarter Moon
Camera Type  Watec 910HX    PAL/CCIR
Camera Delay
Timing     GPS - time inserted Video with frame analysis

Missed

Comments: Miss Gain reduced to 37dB to lessen bright background noise.

_______________________________

Observer   Dave Herald
Location   Murrumbateman, NSW, Australia
Longitude  +148:59
Latitude   -34:57
Altitude   594 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   40 cm
Seeing     Steady Clear
Camera Type  Watec 910BD    PAL/CCIR
Camera Delay
Timing     GPS - time inserted Video with frame analysis
Disappearance  14:52:21.40
Reappearance   14:52:36.72
Comments:  Lightcurve from 14:50:30 to 14:54:01 by Tangra v3.6.3 using AperturePhotometry/AverageBackground.
Analysis by AOTA v4.2.12.0. Report prepopulated by IOTA Reporting Add-in for OW ver.1.8 _______________________________ Observer John Newman Location Canberra, ACT, AU Longitude +149:02 Latitude -35:11 Altitude 657 m Datum WGS84 Telescope SCT including Cass and Mak Aperture 40 cm Seeing Steady Clear Camera Type Watec 910BD PAL/CCIR Camera Delay Timing GPS - time inserted Video with frame analysis Disappearance 14:52:21.72 Reappearance 14:52:29.68 Comments: Report prepopulated by IOTA Reporting Add-in for OW ver.1.8
