ASTROMETRIC UPDATE:
OCCULTATION BY (85) IO - 2020 APR 02

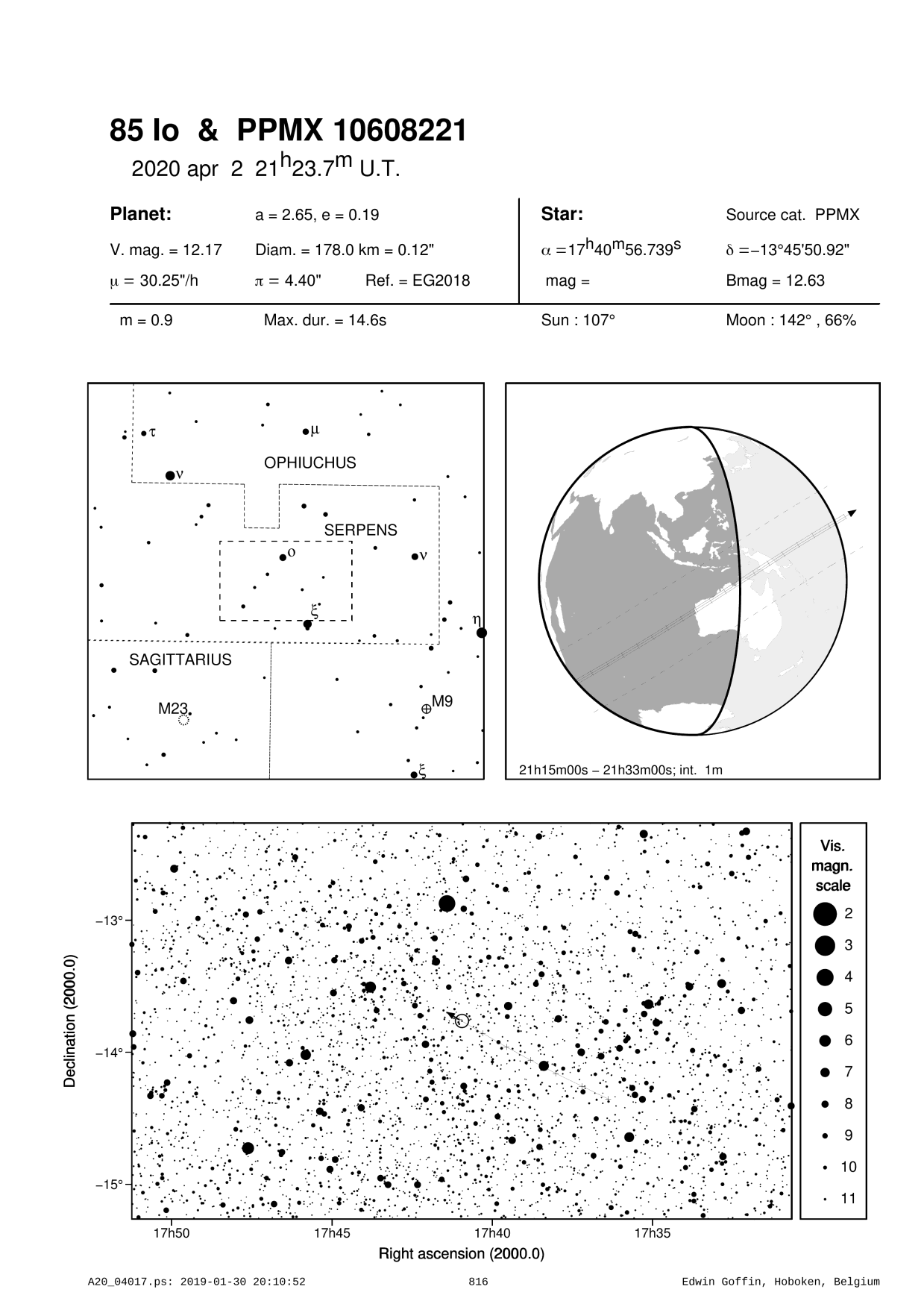

[Edwin Goffin's Prediction + Finder Charts]

[Detailed Finder Charts]


Updated:   2020 Mar 14, 22:05 UT

Event Rank : 100

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

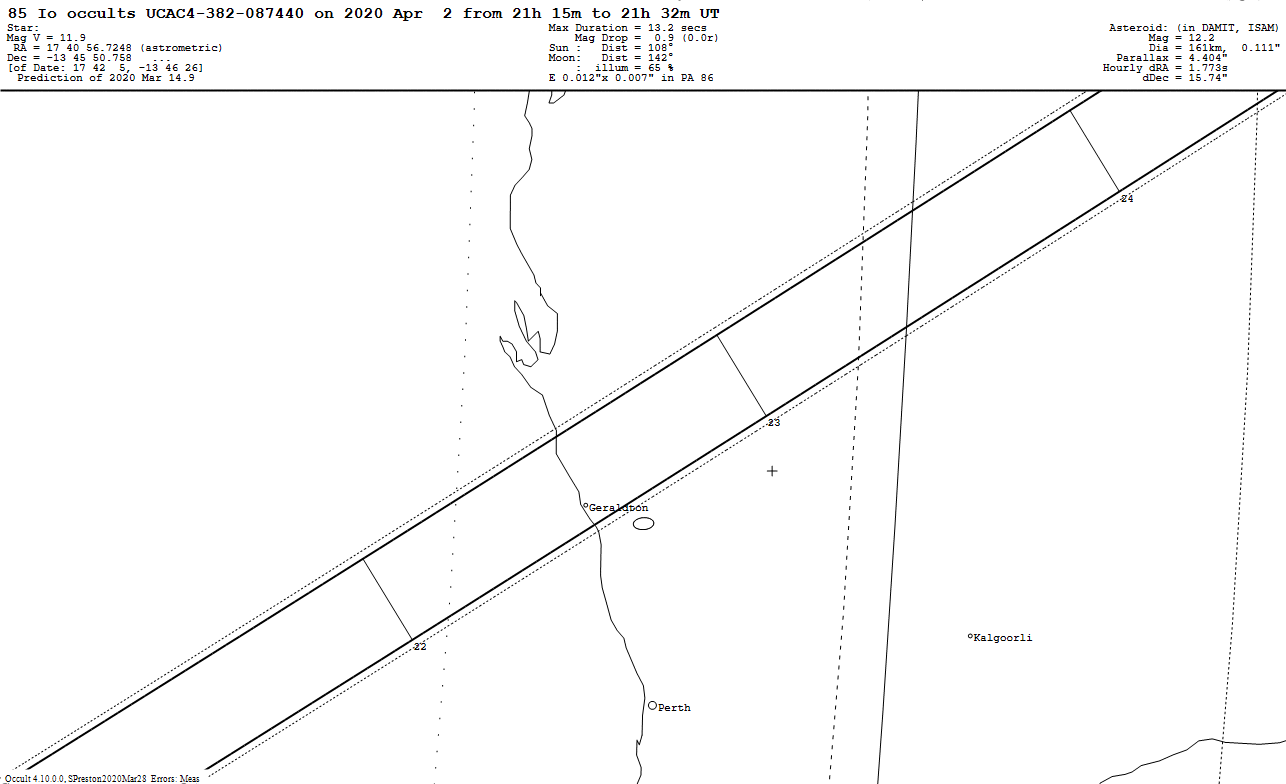

Io Update Map


On 2020 Apr 02 UT, the 161 km diameter asteroid (85) Io will occult a 11.9 mag star in the constellation Serpens for observers along a path across West Australia, passing over Geraldton.

In the case of an occultation, the combined light of the asteroid and the star will drop by only 0.90 mag to 12.17 mag (the magnitude of the asteroid) for at most 13.2 seconds. This event may be difficult to observe visually.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Hugh Harris, astrometry for the asteroid kindly provided by Bill Owen, astrometry for the asteroid kindly provided by the IAU Minor Planet Center. This work has made use of data from the European Space Agency (ESA) mission Gaia (http://www.cosmos.esa.int/gaia), processed by the Gaia Data Processing and Analysis Consortium (DPAC, http://www.cosmos.esa.int/web/gaia/dpac/consortium). Funding for the DPAC has been provided by national institutions, in particular the institutions participating in the Gaia Multilateral Agreement.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
 Occultation of UCAC4-382-087440 by 85 Io on 2020 Apr 2
                  Centre              Star  Star   Sun      Path Limits           Error Limits       Alt
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4   Crn
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
    112  0  0   -29 46 32   21 22  8.1    74     5   -19  -30 39 46  -28 53 30  -30 47 47  -28 45 34   0.23
    113  0  0   -29 12 18   21 22 17.8    75     1   -18  -30  5 43  -28 19  6  -30 13 45  -28 11  8   0.23
    114  0  0   -28 37 31   21 22 27.6    75   357   -17  -29 31  7  -27 44  8  -29 39 10  -27 36  9   0.23
    115  0  0   -28  2 11   21 22 37.4    76   353   -16  -28 55 57  -27  8 38  -29  4  2  -27  0 37   0.23
    116  0  0   -27 26 19   21 22 47.4    76   348   -15  -28 20 15  -26 32 36  -28 28 21  -26 24 34   0.23

    117  0  0   -26 49 55   21 22 57.5    76   343   -14  -27 44  1  -25 56  3  -27 52  9  -25 48  0   0.23
    118  0  0   -26 13  1   21 23  7.7    77   338   -13  -27  7 15  -25 19  0  -27 15 25  -25 10 55   0.23
    119  0  0   -25 35 37   21 23 18.0    77   333   -12  -26 30  0  -24 41 27  -26 38 10  -24 33 20   0.23
    120  0  0   -24 57 43   21 23 28.4    77   328   -11  -25 52 15  -24  3 25  -26  0 27  -23 55 18   0.23
    121  0  0   -24 19 22   21 23 38.8    77   322   -10  -25 14  1  -23 24 56  -25 22 14  -23 16 47   0.23

    122  0  0   -23 40 33   21 23 49.4    77   317    -9  -24 35 20  -22 46  0  -24 43 34  -22 37 51   0.23
    123  0  0   -23  1 19   21 24  0.0    77   312    -8  -23 56 13  -22  6 39  -24  4 28  -21 58 29   0.23
    124  0  0   -22 21 40   21 24 10.6    76   307    -7  -23 16 40  -21 26 54  -23 24 57  -21 18 42   0.23
    125  0  0   -21 41 38   21 24 21.3    76   302    -6  -22 36 44  -20 46 46  -22 45  1  -20 38 33   0.23
    126  0  0   -21  1 13   21 24 32.1    75   297    -5  -21 56 25  -20  6 16  -22  4 43  -19 58  3   0.23

Uncertainty in time = +/- 1 secs

Prediction of 2020 Mar 14.0
