ASTROMETRIC UPDATE:
OCCULTATION BY (241) GERMANIA - 2022 May 20

[Edwin Goffin's Prediction + Finder Charts]

[Detailed Finder Charts]


Updated:   2022 MAR 27, 02:15 UT

Event Rank : 100

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

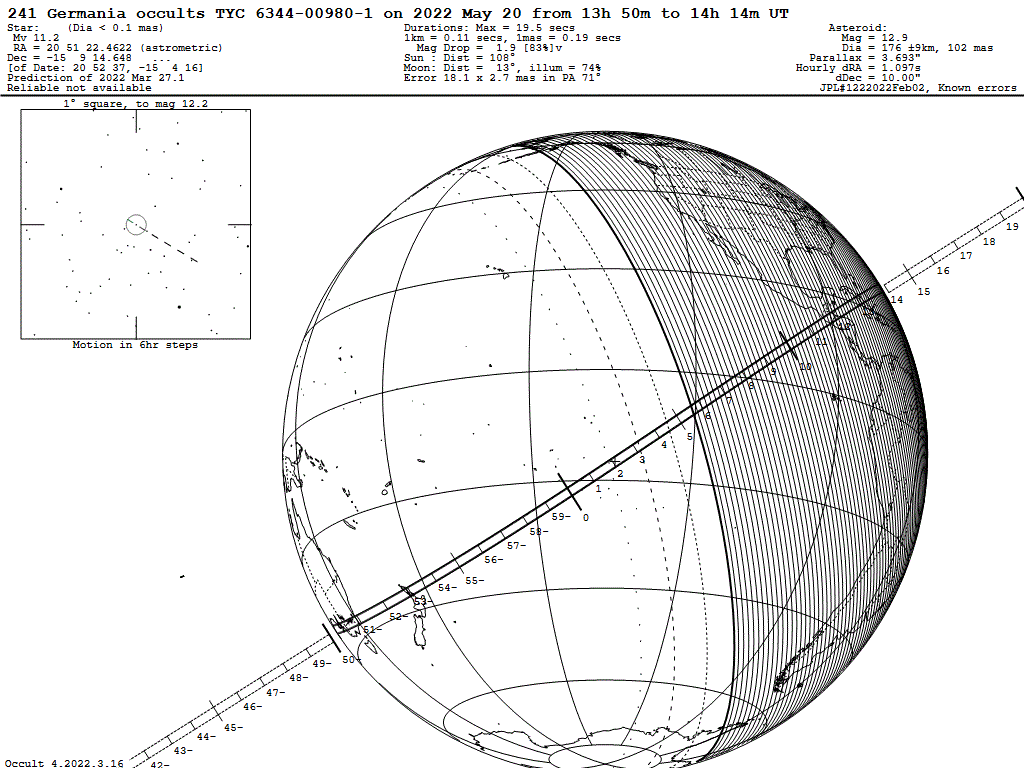

Germania Update Map


On 2022 May 20 UT, the 176 km diameter asteroid (241) Germania will occult a 11.2 mag star in the constellation Capricornus for observers along a fairly broad path across the North Island of New Zealand, including most of the island north of about Hamilton and south of Russell, including Auckland, and across south-eastern Australia, including most of Victoria north of Melbourne and south-eastern South Australia south of Adelaide, at low elevation.

In the case of an occultation, the combined light of the asteroid and the star will drop by 1.91 mag to 12.93 mag (the magnitude of the asteroid) for at most 19.550 seconds.

This update is based on, astrometry for the asteroid kindly provided by the IAU Minor Planet Center.

This work has made use of data from the European Space Agency (ESA)mission Gaia (http://www.cosmos.esa.int/gaia), processed by the Gaia Data Processing and Analysis Consortium (DPAC, http://www.cosmos.esa.int/web/gaia/dpac/consortium). Funding for the DPAC has been provided by national institutions, inparticular the institutions participating in the Gaia Multilateral Agreement.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
Occultation of TYC 6344-00980-1 by 241 Germania on 2022 May 20
                  Centre              Star  Star   Sun      Path Limits           Error Limits       Alt
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4   Crn
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
    128  0  0   -33  1 27   13 50 16.8     1   108   -65  -33 51 30  -32 11 25  -33 56 11  -32  6 44   ....
    129  0  0   -33 17 19   13 50 17.0     1   107   -66  -34  7 14  -32 27 26  -34 11 55  -32 22 46   0.10
    130  0  0   -33 32 39   13 50 17.3     2   107   -67  -34 22 26  -32 42 55  -34 27  6  -32 38 15   0.08
    131  0  0   -33 47 28   13 50 17.8     3   106   -67  -34 37  6  -32 57 51  -34 41 45  -32 53 12   0.07
    132  0  0   -34  1 44   13 50 18.5     4   105   -68  -34 51 14  -33 12 15  -34 55 53  -33  7 37   0.06

    133  0  0   -34 15 28   13 50 19.3     5   105   -68  -35  4 51  -33 26  7  -35  9 29  -33 21 30   0.06
    134  0  0   -34 28 41   13 50 20.3     6   104   -69  -35 17 56  -33 39 27  -35 22 33  -33 34 51   0.05
    135  0  0   -34 41 22   13 50 21.5     7   104   -69  -35 30 30  -33 52 16  -35 35  7  -33 47 40   0.05
    136  0  0   -34 53 32   13 50 22.8     7   103   -70  -35 42 33  -34  4 32  -35 47  9  -33 59 57   0.05
    137  0  0   -35  5 10   13 50 24.2     8   103   -70  -35 54  5  -34 16 17  -35 58 40  -34 11 43   0.05

    138  0  0   -35 16 17   13 50 25.8     9   102   -71  -36  5  5  -34 27 31  -36  9 40  -34 22 57   0.05
    139  0  0   -35 26 54   13 50 27.5    10   101   -71  -36 15 35  -34 38 13  -36 20  9  -34 33 40   0.05
    140  0  0   -35 36 59   13 50 29.4    11   101   -71  -36 25 34  -34 48 24  -36 30  8  -34 43 51   0.04
    141  0  0   -35 46 33   13 50 31.4    12   100   -72  -36 35  3  -34 58  4  -36 39 36  -34 53 32   0.04
    142  0  0   -35 55 36   13 50 33.6    12   100   -72  -36 44  1  -35  7 13  -36 48 33  -35  2 41   0.04

    143  0  0   -36  4  9   13 50 35.9    13    99   -72  -36 52 29  -35 15 51  -36 57  1  -35 11 19   0.04
    144  0  0   -36 12 11   13 50 38.3    14    99   -73  -37  0 26  -35 23 58  -37  4 58  -35 19 27   0.04
    145  0  0   -36 19 43   13 50 40.9    15    98   -73  -37  7 53  -35 31 35  -37 12 24  -35 27  4   0.04
    146  0  0   -36 26 45   13 50 43.6    16    97   -73  -37 14 50  -35 38 40  -37 19 21  -35 34 10   0.04
    147  0  0   -36 33 16   13 50 46.4    17    97   -73  -37 21 17  -35 45 15  -37 25 48  -35 40 45   0.04

    148  0  0   -36 39 17   13 50 49.4    17    96   -73  -37 27 15  -35 51 20  -37 31 45  -35 46 50   0.04
    149  0  0   -36 44 47   13 50 52.5    18    96   -73  -37 32 42  -35 56 54  -37 37 12  -35 52 25   0.04
    150  0  0   -36 49 48   13 50 55.7    19    95   -73  -37 37 39  -36  1 58  -37 42  9  -35 57 29   0.04
    151  0  0   -36 54 18   13 50 59.1    20    94   -73  -37 42  7  -36  6 31  -37 46 36  -36  2  2   0.04
    152  0  0   -36 58 19   13 51  2.6    21    94   -73  -37 46  5  -36 10 34  -37 50 34  -36  6  5   0.04

    153  0  0   -37  1 49   13 51  6.2    21    93   -73  -37 49 33  -36 14  7  -37 54  2  -36  9 38   0.04
    154  0  0   -37  4 50   13 51  9.9    22    92   -73  -37 52 32  -36 17  9  -37 57  0  -36 12 41   0.03
    155  0  0   -37  7 20   13 51 13.8    23    92   -73  -37 55  1  -36 19 41  -37 59 29  -36 15 13   0.03
    156  0  0   -37  9 21   13 51 17.8    24    91   -72  -37 57  0  -36 21 43  -38  1 28  -36 17 15   0.03
    157  0  0   -37 10 51   13 51 22.0    25    91   -72  -37 58 29  -36 23 14  -38  2 57  -36 18 47   0.03

    158  0  0   -37 11 52   13 51 26.2    26    90   -72  -37 59 29  -36 24 16  -38  3 57  -36 19 48   0.03
    159  0  0   -37 12 22   13 51 30.6    26    89   -72  -37 59 59  -36 24 46  -38  4 27  -36 20 19   0.03
    160  0  0   -37 12 23   13 51 35.2    27    89   -71  -38  0  0  -36 24 47  -38  4 28  -36 20 19   0.03
    161  0  0   -37 11 53   13 51 39.8    28    88   -71  -37 59 30  -36 24 17  -38  3 58  -36 19 49   0.03
    162  0  0   -37 10 53   13 51 44.6    29    88   -70  -37 58 31  -36 23 17  -38  2 59  -36 18 49   0.03

    163  0  0   -37  9 23   13 51 49.5    30    87   -70  -37 57  2  -36 21 46  -38  1 30  -36 17 18   0.03
    164  0  0   -37  7 23   13 51 54.6    30    86   -70  -37 55  3  -36 19 44  -37 59 31  -36 15 16   0.03
    165  0  0   -37  4 52   13 51 59.8    31    86   -69  -37 52 33  -36 17 12  -37 57  2  -36 12 43   0.03
    166  0  0   -37  1 51   13 52  5.1    32    85   -69  -37 49 34  -36 14  8  -37 54  3  -36  9 40   0.03
    167  0  0   -36 58 19   13 52 10.5    33    84   -68  -37 46  4  -36 10 34  -37 50 33  -36  6  6   0.03

    168  0  0   -36 54 16   13 52 16.1    34    84   -68  -37 42  4  -36  6 29  -37 46 33  -36  2  0   0.03
    169  0  0   -36 49 43   13 52 21.8    35    83   -67  -37 37 33  -36  1 52  -37 42  3  -35 57 23   0.03
    170  0  0   -36 44 38   13 52 27.7    35    83   -66  -37 32 32  -35 56 45  -37 37  2  -35 52 15   0.03
    171  0  0   -36 39  2   13 52 33.7    36    82   -66  -37 27  0  -35 51  5  -37 31 30  -35 46 36   0.03
    172  0  0   -36 32 55   13 52 39.8    37    81   -65  -37 20 57  -35 44 55  -37 25 27  -35 40 24   0.03

    173  0  0   -36 26 17   13 52 46.0    38    81   -65  -37 14 22  -35 38 12  -37 18 53  -35 33 41   0.03
    174  0  0   -36 19  6   13 52 52.5    39    80   -64  -37  7 16  -35 30 57  -37 11 47  -35 26 26   0.03
    175  0  0   -36 11 24   13 52 59.0    40    79   -63  -36 59 39  -35 23 10  -37  4 11  -35 18 39   0.03
    176  0  0   -36  3 10   13 53  5.7    40    79   -63  -36 51 30  -35 14 51  -36 56  2  -35 10 19   0.03
    177  0  0   -35 54 23   13 53 12.5    41    78   -62  -36 42 49  -35  5 59  -36 47 22  -35  1 26   0.03

    178  0  0   -35 45  4   13 53 19.5    42    78   -61  -36 33 36  -34 56 34  -36 38  9  -34 52  1   0.02
    179  0  0   -35 35 13   13 53 26.6    43    77   -61  -36 23 50  -34 46 36  -36 28 24  -34 42  2   0.02
Uncertainty in time = +/- 3 secs
Prediction of 2022 Mar 27.1
