ASTROMETRIC UPDATE:
OCCULTATION BY (171) OPHELIA - 2022 JUN 03

[Edwin Goffin's Prediction + Finder Charts]

[Detailed Finder Charts]


Updated:   2022 Apr 15, 19:59 UT

Event Rank : 100

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

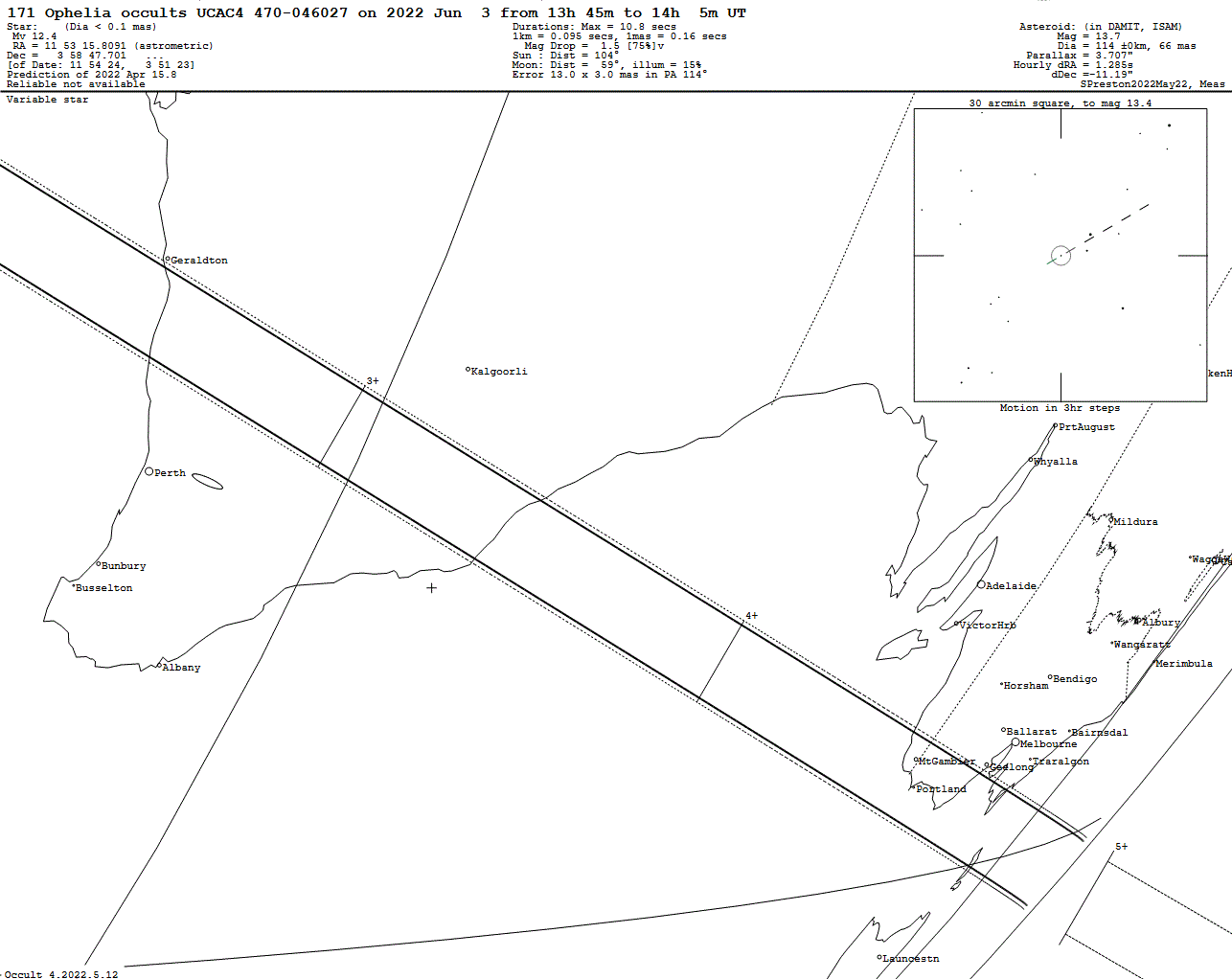

Ophelia Update Map


On 2022 Jun 03 UT, the 114 km diameter asteroid (171) Ophelia will occult a 12.4 mag star in the constellation Virgo for observers along a path across south-western West Australia, extreme southern South Australia and south-western Victoria, passing near Geraldton and over Mount Gambier, Colac and near Geelong.

In the case of an occultation, the combined light of the asteroid and the star will drop by 1.6 mag to 13.74 mag (the magnitude of the asteroid) for at most 10.8 seconds.

This update is based on, astrometry for the asteroid kindly provided by the IAU Minor Planet Center. This work has made use of data from the European Space Agency (ESA) mission Gaia (http://www.cosmos.esa.int/gaia), processed by the Gaia Data Processing and Analysis Consortium (DPAC, http://www.cosmos.esa.int/web/gaia/dpac/consortium). Funding for the DPAC has been provided by national institutions, in particular the institutions participating in the Gaia Multilateral Agreement.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
 Occultation of UCAC4 470-046027 by 171 Ophelia on 2022 Jun 3
                  Centre              Star  Star   Sun      Path Limits           Error Limits       Alt
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4   Crn
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
    112  0  0   -28 18 38   14  2 11.0    43   307   -56  -28 54  7  -27 43 13  -28 58  2  -27 39 20   0.18
    113  0  0   -28 45 55   14  2 18.2    42   306   -57  -29 21 18  -28 10 37  -29 25 12  -28  6 44   0.18

    114  0  0   -29 12 43   14  2 25.3    41   306   -58  -29 48  0  -28 37 31  -29 51 53  -28 33 38   0.18
    115  0  0   -29 39  1   14  2 32.2    40   305   -59  -30 14 11  -29  3 55  -30 18  4  -29  0  3   0.18
    116  0  0   -30  4 49   14  2 38.9    39   304   -60  -30 39 53  -29 29 49  -30 43 44  -29 25 58   0.18
    117  0  0   -30 30  6   14  2 45.4    38   304   -60  -31  5  4  -29 55 13  -31  8 55  -29 51 23   0.18
    118  0  0   -30 54 54   14  2 51.7    37   303   -61  -31 29 45  -30 20  7  -31 33 35  -30 16 17   0.18

    119  0  0   -31 19 11   14  2 57.8    36   302   -62  -31 53 56  -30 44 30  -31 57 46  -30 40 42   0.18
    120  0  0   -31 42 58   14  3  3.8    35   302   -63  -32 17 36  -31  8 23  -32 21 25  -31  4 35   0.18
    121  0  0   -32  6 14   14  3  9.5    34   301   -63  -32 40 47  -31 31 46  -32 44 35  -31 27 59   0.18
    122  0  0   -32 29  0   14  3 15.1    33   301   -64  -33  3 26  -31 54 38  -33  7 14  -31 50 52   0.18
    123  0  0   -32 51 16   14  3 20.5    32   300   -65  -33 25 36  -32 17  0  -33 29 22  -32 13 14   0.18

    124  0  0   -33 13  1   14  3 25.7    31   299   -66  -33 47 15  -32 38 52  -33 51  1  -32 35  7   0.18
    125  0  0   -33 34 16   14  3 30.7    30   299   -66  -34  8 24  -33  0 13  -34 12  9  -32 56 28   0.18
    126  0  0   -33 55  1   14  3 35.6    29   298   -67  -34 29  2  -33 21  4  -34 32 47  -33 17 20   0.18
    127  0  0   -34 15 16   14  3 40.3    29   297   -68  -34 49 11  -33 41 24  -34 52 55  -33 37 41   0.18
    128  0  0   -34 35  1   14  3 44.8    28   297   -68  -35  8 50  -34  1 15  -35 12 33  -33 57 33   0.18

    129  0  0   -34 54 15   14  3 49.2    27   296   -69  -35 27 59  -34 20 36  -35 31 41  -34 16 54   0.18
    130  0  0   -35 13  0   14  3 53.4    26   296   -69  -35 46 38  -34 39 26  -35 50 20  -34 35 45   0.18
    131  0  0   -35 31 16   14  3 57.5    25   295   -70  -36  4 47  -34 57 47  -36  8 29  -34 54  7   0.18
    132  0  0   -35 49  1   14  4  1.4    24   294   -70  -36 22 28  -35 15 39  -36 26  8  -35 11 59   0.18
    133  0  0   -36  6 18   14  4  5.1    23   294   -71  -36 39 38  -35 33  0  -36 43 19  -35 29 21   0.18

    134  0  0   -36 23  5   14  4  8.7    22   293   -71  -36 56 20  -35 49 53  -37  0  0  -35 46 14   0.18
    135  0  0   -36 39 23   14  4 12.1    22   292   -71  -37 12 33  -36  6 16  -37 16 12  -36  2 38   0.18
    136  0  0   -36 55 12   14  4 15.4    21   292   -72  -37 28 17  -36 22 11  -37 31 55  -36 18 33   0.18
    137  0  0   -37 10 32   14  4 18.5    20   291   -72  -37 43 32  -36 37 36  -37 47 10  -36 33 59   0.18
    138  0  0   -37 25 24   14  4 21.5    19   291   -72  -37 58 19  -36 52 33  -38  1 57  -36 48 56   0.18

    139  0  0   -37 39 48   14  4 24.3    18   290   -73  -38 12 38  -37  7  1  -38 16 15  -37  3 25   0.18
    140  0  0   -37 53 43   14  4 27.0    17   289   -73  -38 26 28  -37 21  1  -38 30  5  -37 17 26   0.18
    141  0  0   -38  7 10   14  4 29.6    17   289   -73  -38 39 51  -37 34 33  -38 43 27  -37 30 58   0.18
    142  0  0   -38 20 10   14  4 32.0    16   288   -73  -38 52 46  -37 47 37  -38 56 21  -37 44  2   0.18
    143  0  0   -38 32 42   14  4 34.3    15   287   -73  -39  5 13  -38  0 13  -39  8 48  -37 56 39   0.18

    144  0  0   -38 44 46   14  4 36.5    14   287   -73  -39 17 14  -38 12 21  -39 20 48  -38  8 48   0.18
    145  0  0   -38 56 23   14  4 38.5    13   286   -73  -39 28 46  -38 24  2  -39 32 20  -38 20 29   0.18
    146  0  0   -39  7 32   14  4 40.4    12   285   -73  -39 39 52  -38 35 16  -39 43 26  -38 31 43   0.18
    147  0  0   -39 18 15   14  4 42.2    12   285   -73  -39 50 31  -38 46  3  -39 54  4  -38 42 30   0.18
    148  0  0   -39 28 31   14  4 43.9    11   284   -73  -40  0 44  -38 56 22  -40  4 16  -38 52 50   0.18

    149  0  0   -39 38 21   14  4 45.4    10   284   -73  -40 10 30  -39  6 15  -40 14  2  -39  2 44   0.18
    150  0  0   -39 47 44   14  4 46.8     9   283   -72  -40 19 49  -39 15 41  -40 23 21  -39 12 10   0.19
    151  0  0   -39 56 40   14  4 48.1     8   282   -72  -40 28 42  -39 24 41  -40 32 14  -39 21 10   0.19
    152  0  0   -40  5 10   14  4 49.3     8   282   -72  -40 37 10  -39 33 14  -40 40 41  -39 29 44   0.19
