Predictions for Grazing Occultation of ZC 2298, 2007 Mar 10
Grazing Occultation of 2298 K3 Magnitude 5.0
Date 2007 March 10 (Saturday) Nominal site altitude 0m
E. Longit. Latitude U.T. Sun Moon TanZ PA WA CA
o ' " o ' " h m s Alt Alt Az o o o
113 0 0 -31 25 19 17 24 59 39 100 1.25 205.4 194.80 12.94S
113 10 0 -31 33 12 17 25 19 39 99 1.24 205.4 194.80 12.94S
113 20 0 -31 41 5 17 25 38 39 99 1.23 205.4 194.79 12.94S
113 30 0 -31 48 58 17 25 58 39 99 1.22 205.4 194.79 12.93S
113 40 0 -31 56 50 17 26 18 40 99 1.21 205.4 194.79 12.93S
113 50 0 -32 4 43 17 26 38 40 99 1.20 205.4 194.78 12.93S
114 0 0 -32 12 35 17 26 58 40 98 1.19 205.4 194.78 12.92S
114 10 0 -32 20 27 17 27 18 40 98 1.18 205.4 194.77 12.92S
114 20 0 -32 28 19 17 27 38 41 98 1.17 205.4 194.77 12.91S
114 30 0 -32 36 10 17 27 59 41 98 1.16 205.4 194.76 12.91S
114 40 0 -32 44 1 17 28 19 41 98 1.15 205.4 194.76 12.90S
114 50 0 -32 51 52 17 28 39 41 97 1.14 205.4 194.75 12.89S
115 0 0 -32 59 43 17 29 0 41 97 1.13 205.4 194.74 12.89S
115 10 0 -33 7 32 17 29 20 42 97 1.12 205.4 194.74 12.88S
115 20 0 -33 15 22 17 29 41 42 97 1.11 205.4 194.73 12.87S
115 30 0 -33 23 11 17 30 2 42 96 1.11 205.3 194.72 12.86S
115 40 0 -33 31 0 17 30 22 42 96 1.10 205.3 194.71 12.85S
115 50 0 -33 38 48 17 30 43 43 96 1.09 205.3 194.70 12.85S
116 0 0 -33 46 35 17 31 4 43 96 1.08 205.3 194.69 12.84S
116 10 0 -33 54 22 17 31 25 43 95 1.07 205.3 194.68 12.83S
116 20 0 -34 2 8 17 31 46 43 95 1.06 205.3 194.67 12.82S
116 30 0 -34 9 54 17 32 7 43 95 1.05 205.3 194.66 12.81S
116 40 0 -34 17 39 17 32 28 44 95 1.05 205.3 194.65 12.80S
116 50 0 -34 25 23 17 32 49 44 94 1.04 205.3 194.64 12.78S
117 0 0 -34 33 7 17 33 11 44 94 1.03 205.3 194.63 12.77S
117 10 0 -34 40 50 17 33 32 44 94 1.02 205.2 194.62 12.76S
117 20 0 -34 48 32 17 33 53 45 94 1.02 205.2 194.60 12.75S
117 30 0 -34 56 14 17 34 15 45 93 1.01 205.2 194.59 12.73S
117 40 1 -35 3 54 17 34 36 45 93 1.00 205.2 194.58 12.72S
117 50 1 -35 11 34 17 34 58 45 93 0.99 205.2 194.56 12.71S
118 0 1 -35 19 13 17 35 19 45 93 0.98 205.2 194.55 12.69S
Path coordinates are referred to WGS84 (as used by GPS).
Librations Long -5.42 Lat +6.29
P +194.0 D +7.7
Illumination of moon 64%-
Elongation of Moon 106
Vertical Profile Scale 2.06 km/arcsec at mean distance of moon
Horizontal Scale Factor 1.57 deg/min
Limiting Magnitudes for various telescope apertures (in mm)
CA\Tdia 50 100 150 200 250 300 350
8.7 5.7 7.1 7.9 8.5 8.8 9.1 9.3
10.7 5.7 7.2 8.0 8.5 8.8 9.1 9.3
12.7 5.7 7.2 8.0 8.5 8.8 9.1 9.3
14.7 5.7 7.2 8.0 8.5 8.9 9.1 9.3
16.7 5.7 7.2 8.0 8.5 8.9 9.1 9.3

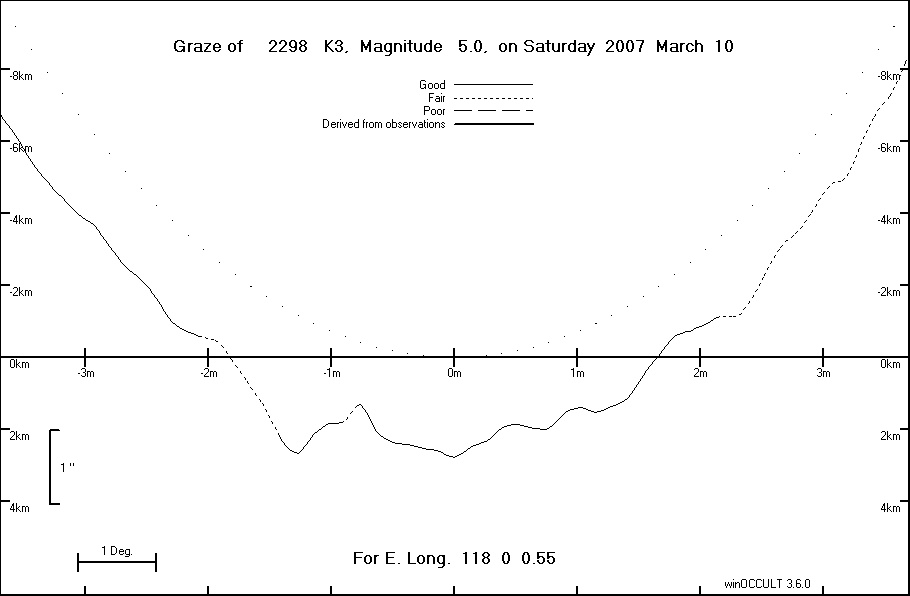

Lunar Limb Profile
