OCCULTATION OF TYC 6907-00294-1 BY (958) ASPLINDA
2006 AUGUST 15


A 1.76 second occultation was recorded by John Broughton, Reedy Creek, Australia, using the CCD drift-scan technique.

View the updated prediction.

Observers:
  1    J Broughton, Reedy Creek, Australia

Asplinda occultation - 2006 August 15

Discussion:

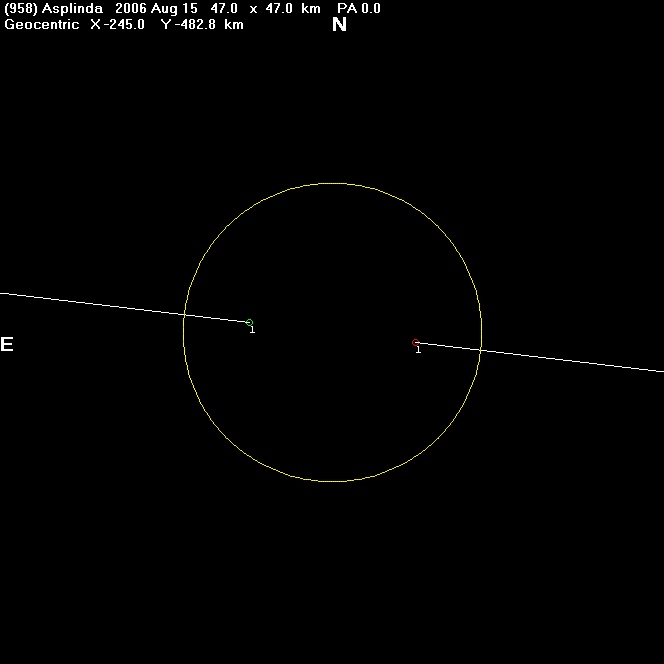

The circle above is plotted at the expected 47km diameter of Asplinda. With only one chord it is not possible to determine whether John was north or south of the central line of the event.

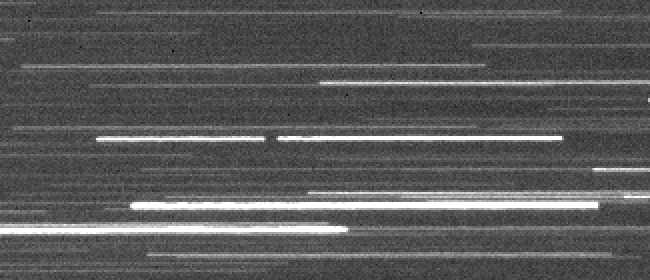

The figure below shows the drift-scan image of the occultation.

Asplinda occultation - 2006 August 15

Observational Data:

TELESCOPE DETAILS:
Observer's Name                  : John Broughton
Aperture (cm)                    : 50.1
Focal length (cm)                : 138
Type (e.g. SCT; Newtonian)       : F/2.7 modified newtonian
Magnification                    : CCD drift-scan at 3.9 pps, 60'FOV
Observing site name              : Reedy Creek, Gold Coast
Longitude (East +ve)             : +153 23' 49"
Latitude (South -ve)             : -28 06' 36"
Height above Sealevel (metres)   : 66
Geodetic Datum (e.g.WDD84,NZ1949): AGD66
Sky Transparency (Delete two)    : Good
Star Image Stability (Delete two): Good
Time Source (e.g. WWV, VNG)      : WWVH.
Recording method (e.g. tape)     : Tape.
Could you see the Asteroid?      : Only combined light monitored.
Approx. Limiting Magnitude       : 15
                                          | Estimated  |
                           Universal Time | Reaction   | Accuracy, Remarks
                              h  m  s     | Time (sec) |
Started Observing          : 12:26:05.78       n/a       0.01
Disappearance At           : 12:26:27.55       n/a       0.04
Reappearance At            : 12:26:29.31       n/a       0.04
Stopped Observing          : 12:27:06.27       n/a       0.01
Duration                   :        1.76

ADDITIONAL COMMENTS:
Rigorously timed CCD drift-scan measured in Scanalyzer:
[Scanalyser]
