ASTROMETRIC UPDATE:
OCCULTATION BY (9) METIS - 2006 FEB 11

[Edwin Goffin's Prediction + Finder Charts]

[Detailed Finder Charts]


Updated:   2006 FEB 03, 23:02 UT

Event Rank : 100

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

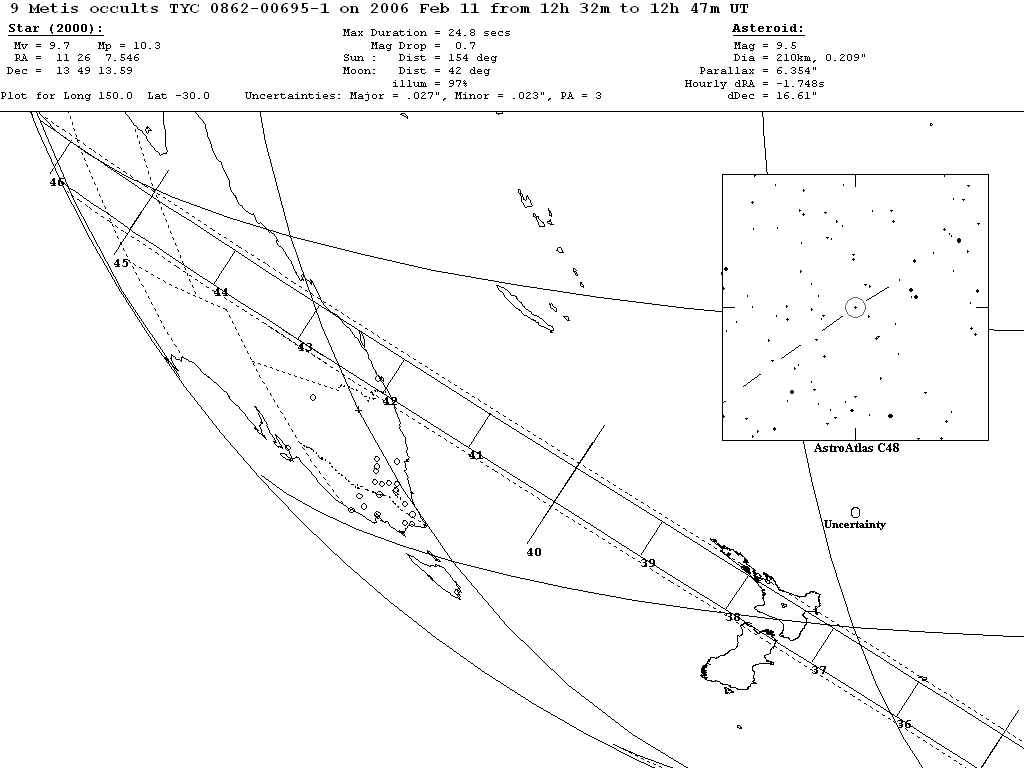

Metis Update Map


On 2006 Feb 11 UT, the 210 km diameter asteroid (9) Metis will occult a 9.7 mag star in the constellation Leo for observers along a path across New Zealand's North Island and the extreme north of the South Island. The shadow then crosses Australia passing directly over Brisbane, the Gold Coast region and Alice Springs. The northern limit of the relatively well defined path runs approximately near Rockhampton and Tennant Creek. The southern limit runs near Grafton and Birdsville.

In the case of an occultation, the combined light of the asteroid and the star will drop by a relatively small 0.7 mag to 9.5 mag (the magnitude of the asteroid) for as long as 24.8 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Ron Stone, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                  Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                        Longitude  Longitude  Longitude  Longitude
    179 47 30   -44  0  0   12 36 27    29    24   -32 -177 10 48  176 37 16 -176 24 45  175 46 12
    178 42 24   -43  0  0   12 36 41    30    25   -33 -178 16  3  175 32  3 -177 30  5  174 40 52
    177 35 24   -42  0  0   12 36 57    30    27   -34 -179 22 56  174 24 34 -178 36 59  173 33 12
    176 26 21   -41  0  0   12 37 13    31    28   -35  179 28 26  173 14 42 -179 45 34  172 23  2
    175 15  8   -40  0  0   12 37 29    31    29   -36  178 17 56  172  2 16  179  4  3  171 10 11

    174  1 34   -39  0  0   12 37 46    32    31   -37  177  5 26  170 47  6  177 51 46  169 54 28
    172 45 30   -38  0  0   12 38  3    32    32   -38  175 50 47  169 28 56  176 37 24  168 35 38
    171 26 41   -37  0  0   12 38 22    32    34   -39  174 33 49  168  7 31  175 20 49  167 13 22
    170  4 54   -36  0  0   12 38 40    33    36   -40  173 14 19  166 42 32  174  1 48  165 47 21
    168 39 51   -35  0  0   12 39  0    33    37   -41  171 52  4  165 13 34  172 40  9  164 17  7

    167 11 10   -34  0  0   12 39 20    33    39   -42  170 26 48  163 40  9  171 15 36  162 42 10
    165 38 27   -33  0  0   12 39 40    33    41   -43  168 58 12  162  1 40  169 47 52  161  1 48
    164  1 10   -32  0  0   12 40  2    33    43   -43  167 25 52  160 17 22  168 16 35  159 15 10
    162 18 41   -31  0  0   12 40 24    32    45   -44  165 49 22  158 26 14  166 41 21  157 21  9
    160 30  9   -30  0  0   12 40 47    32    47   -44  164  8  7  156 26 57  165  1 37  155 18 10

    158 34 31   -29  0  0   12 41 11    32    49   -45  162 21 25  154 17 38  163 16 46  153  4  1
    156 30 18   -28  0  0   12 41 36    31    51   -45  160 28 22  151 55 33  161 25 59  150 35 17
    155  0  0   -27 19 14   12 41 54    30    52   -45  -25 26 11  -29 19  5  -24 57 46  -29 51 33
    154  0  0   -26 53 27   12 42  5    30    53   -45  -25  1 20  -28 52 13  -24 33  7  -29 24 21
    153  0  0   -26 28 43   12 42 17    29    54   -45  -24 37 27  -28 26 27  -24  9 27  -28 58 18

    152  0  0   -26  5  1   12 42 28    29    55   -45  -24 14 34  -28  1 47  -23 46 45  -28 33 21
    151  0  0   -25 42 21   12 42 39    29    56   -45  -23 52 40  -27 38 13  -23 25  1  -28  9 30
    150  0  0   -25 20 42   12 42 49    28    57   -45  -23 31 44  -27 15 43  -23  4 16  -27 46 45
    149  0  0   -25  0  4   12 43  0    27    58   -45  -23 11 47  -26 54 17  -22 44 28  -27 25  6
    148  0  0   -24 40 27   12 43 10    27    58   -45  -22 52 48  -26 33 55  -22 25 38  -27  4 31

    147  0  0   -24 21 51   12 43 20    26    59   -44  -22 34 47  -26 14 37  -22  7 46  -26 45  1
    146  0  0   -24  4 15   12 43 30    26    60   -44  -22 17 44  -25 56 23  -21 50 51  -26 26 35
    145  0  0   -23 47 39   12 43 39    25    61   -44  -22  1 39  -25 39 11  -21 34 53  -26  9 13
    144  0  0   -23 32  3   12 43 49    24    61   -43  -21 46 31  -25 23  2  -21 19 52  -25 52 54
    143  0  0   -23 17 27   12 43 58    24    62   -43  -21 32 21  -25  7 55  -21  5 49  -25 37 39

    142  0  0   -23  3 51   12 44  7    23    63   -42  -21 19  9  -24 53 51  -20 52 42  -25 23 27
    141  0  0   -22 51 14   12 44 15    22    63   -42  -21  6 54  -24 40 49  -20 40 32  -25 10 17
    140  0  0   -22 39 37   12 44 23    22    64   -42  -20 55 37  -24 28 49  -20 29 19  -24 58 11
    139  0  0   -22 28 59   12 44 31    21    64   -41  -20 45 16  -24 17 51  -20 19  3  -24 47  7
    138  0  0   -22 19 21   12 44 39    20    65   -41  -20 35 53  -24  7 55  -20  9 44  -24 37  6

    137  0  0   -22 10 42   12 44 47    19    65   -40  -20 27 28  -23 59  1  -20  1 22  -24 28  7
    136  0  0   -22  3  3   12 44 54    19    66   -39  -20 20  0  -23 51  8  -19 53 56  -24 20 11
    135  0  0   -21 56 23   12 45  1    18    66   -39  -20 13 29  -23 44 18  -19 47 28  -24 13 17
    134  0  0   -21 50 43   12 45  7    17    67   -38  -20  7 56  -23 38 29  -19 41 56  -24  7 26
    133  0  0   -21 46  2   12 45 14    16    67   -38  -20  3 21  -23 33 42  -19 37 22  -24  2 37

    132  0  0   -21 42 21   12 45 20    16    68   -37  -19 59 43  -23 29 57  -19 33 45  -23 58 51
    131  0  0   -21 39 40   12 45 25    15    68   -36  -19 57  3  -23 27 15  -19 31  6  -23 56  8
    130  0  0   -21 37 59   12 45 31    14    69   -35  -19 55 22  -23 25 35  -19 29 24  -23 54 29
    129  0  0   -21 37 18   12 45 36    13    69   -35  -19 54 38  -23 24 57  -19 28 40  -23 53 52
    128  0  0   -21 37 38   12 45 41    12    70   -34  -19 54 53  -23 25 23  -19 28 54  -23 54 19

    127  0  0   -21 38 59   12 45 45    11    70   -33  -19 56  7  -23 26 51  -19 30  6  -23 55 50
    126  0  0   -21 41 21   12 45 49    10    71   -32  -19 58 20  -23 29 23  -19 32 17  -23 58 25
    125  0  0   -21 44 44   12 45 53    10    71   -32  -20  1 32  -23 32 59  -19 35 26  -24  2  4
    124  0  0   -21 49  8   12 45 57     9    71   -31  -20  5 43  -23 37 39  -19 39 34  -24  6 48
    123  0  0   -21 54 35   12 46  0     8    72   -30  -20 10 55  -23 43 23  -19 44 42  -24 12 38

    122  0  0   -22  1  4   12 46  3     7    72   -29  -20 17  6  -23 50 13  -19 50 50  -24 19 33
    121  0  0   -22  8 36   12 46  5     6    73   -28  -20 24 19  -23 58  7   .. .. ..  -24 27 34
    120  0  0   -22 17 12   12 46  7     5    73   -28   .. .. ..  -24  7  8   .. .. ..  -24 36 43
    119  0  0   -22 26 51   12 46  9     4    73   -27   .. .. ..  -24 17 16   .. .. ..  -24 46 58
    118  0  0   -22 37 34   12 46 11     3    74   -26   .. .. ..  -24 28 30   .. .. ..  -24 58 22
