A 12 second occultation was recorded by Dave Herald, using an SCT Telescope and Watec 910BD camera.

View the IOTA update.

Observers:
  1    D Herald, Murrumbateman, New South Wales, Australia

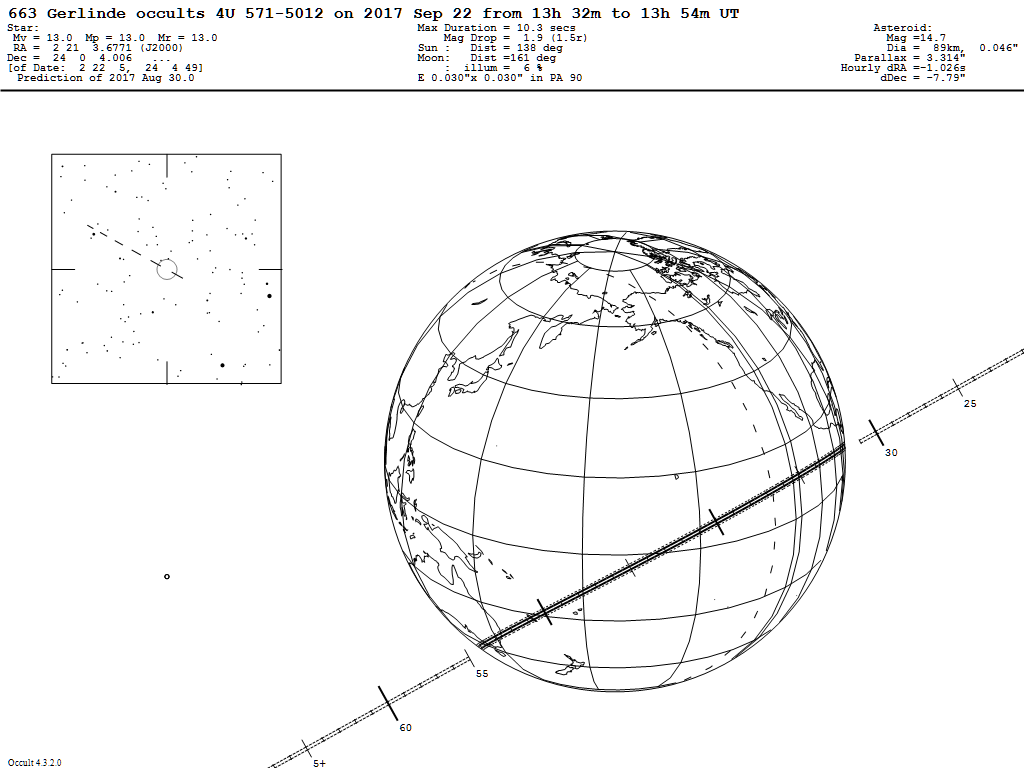

  2(P) Prediction- IOTA Feed


Discussion:

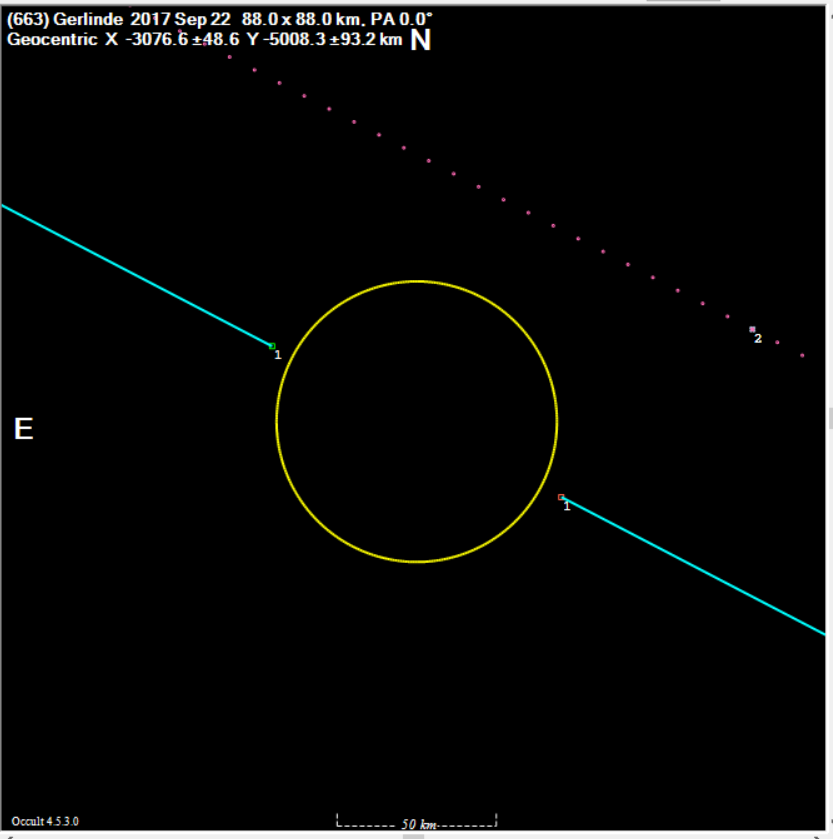

The circle above is plotted at the expected diameter of Gerlinde. With only one chord, it is not possible to tell if Dave was north or south of the centre line of the event. The model has been plotted centred on the observed chord. The event appears to have been south of the predicted path.

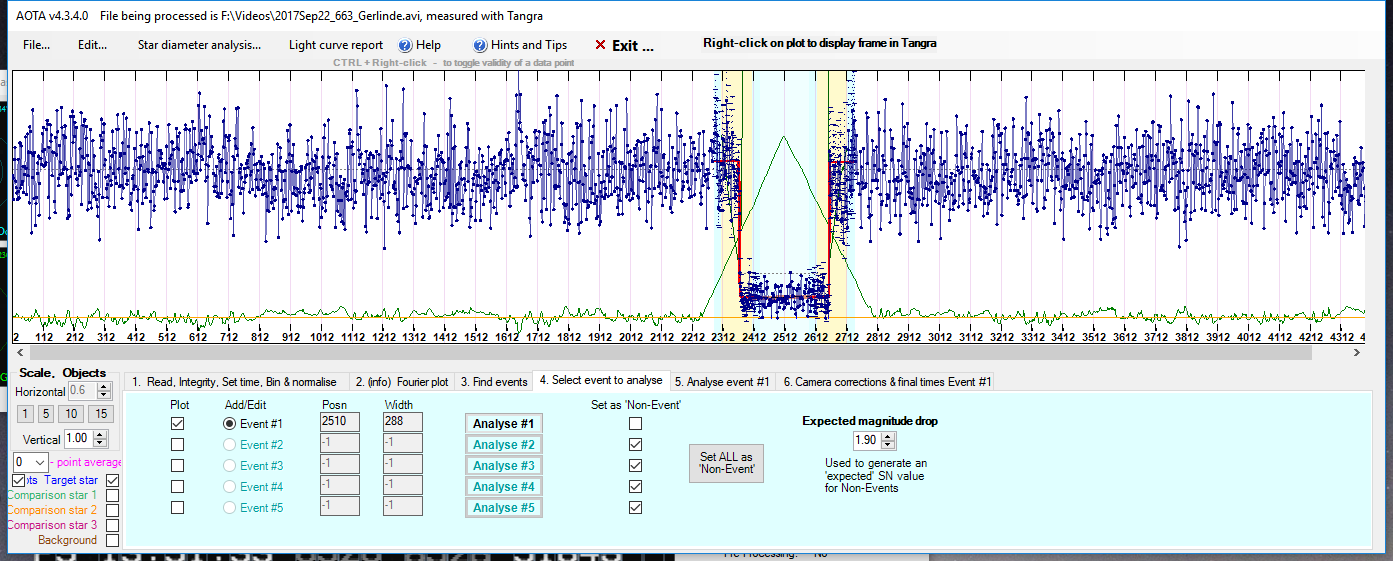

The figure below shows the Tangra light curve of the occultation.

Herald:

Observational Data:

Observation details for MP ( 663 ) Gerlinde
By Star              UCAC4 571-005012
On 2017-09-22  at 13:53:04.0

_______________________________

Observer   Dave Herald
Location   Murrumbateman, NSW, AU
Longitude  +148:59
Latitude   -34:57
Altitude   594 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   40 cm
Seeing     Steady Clear
Camera Type  Watec 910BD    PAL/CCIR
Camera Delay
Timing     GPS - time inserted Video with frame analysis
Disappearance  13:53:07.87
Reappearance   13:53:19.49
Comments:   Report prepopulated by IOTA Reporting Add-in for OW ver.1.8
